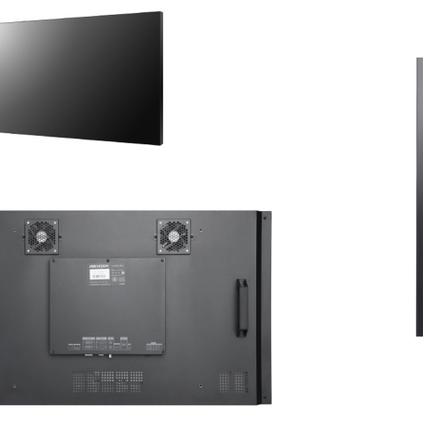

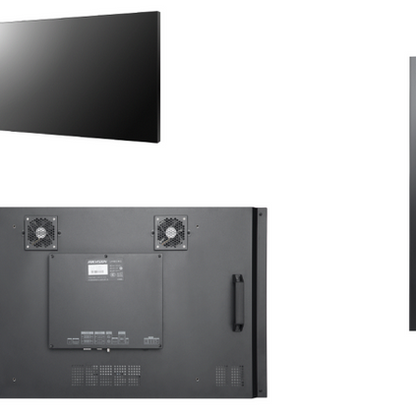

Hikvision DS-D2046LU-Y 46-inch 3.5mm LCD Display Unit
Hikvision DS-D2046LU-Y 46-inch 3.5mm LCD Display Unit
Out of stock
SKU:DS-D2046LU-Y
Couldn't load pickup availability
- 4K signal input, auto loop up to 30 screens with HDMI interfaces
- Switching between three picture modes: Monitoring, Meeting, and Movie
- Factory calibration for color and brightness uniformity
- Direct-lit LED backlight with uniform brightness and no boundary shadows
- 1920 × 1080 resolution, 178° viewing angle
- Ultra-narrow 3.5 mm bezel design
- Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
- Stable and 24-hour continuous working
- Metal casing for preventing from radiation and magnetic & electric field interference
- Wall-mount and modular brackets available to meet various installation requirements
Specification
Display
- Screen Size46 inch
- Active Display Area1018.08 (H) mm × 572.67 (V) mm
- BacklightDirect-lit LED backlight
- Pixel Pitch0.53 mm
- Physical Seam3.5 mm
- Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
- Resolution1920 × 1080@60 Hz (downward compatible)
- Brightness500 cd/m?
- Viewing AngleHorizontal 178°, vertical 178°
- Color Depth8 bit, 16.7 M
- Contrast Ratio1200:1
- Response Time8 ms
- Color Gamut72% NTSC
- Surface TreatmentHaze 25%, 3H
Interface
- Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
- Video & Audio OutputHDMI × 1
- Control InterfaceRS232 IN × 1, RS232 OUT × 1
Power
- Power Supply100-240 VAC, 50/60 Hz
- Power Consumptionâ‿111 W
- Standby Consumptionâ‿0.5 W
Working Environment
- Working Temperature0°C to 40°C (32°F to 104°F)
- Working Humidity10% to 80% RH (non-condensing)
- Storage Temperature-20°C to 60°C (-4°F to 140°F)
- Storage Humidity10% to 80% RH (non-condensing)
General
- Casing MaterialSECC
- VESA600 (H) mm × 400 (V) mm
- Product Dimension (W × H × D)1021.98 mm × 576.57 mm × 72.25 mm (40.24'' × 22.7'' × 2.84'')
-
Package Dimension (W × H × D)
Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
- Net Weight19.8 ± 0.5 kg (43.65 ± 1.1 lb) for single display
-
Gross Weight
Carton with two displays: 48.5 ± 0.5 kg (106.92 ± 1.1 lb)
Carton with a single display: 24.42 ± 0.5 kg (53.84 ± 1.1 lb)
- Packing ListLCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1,
- Screen Size46 inch
- Active Display Area1018.08 (H) mm × 572.67 (V) mm
- BacklightDirect-lit LED backlight
- Pixel Pitch0.53 mm
- Physical Seam3.5 mm
- Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
- Resolution1920 × 1080@60 Hz (downward compatible)
- Brightness500 cd/m?
- Viewing AngleHorizontal 178°, vertical 178°
- Color Depth8 bit, 16.7 M
- Contrast Ratio1200:1
- Response Time8 ms
- Color Gamut72% NTSC
- Surface TreatmentHaze 25%, 3H,
- Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
- Video & Audio OutputHDMI × 1
- Control InterfaceRS232 IN × 1, RS232 OUT × 1,
- Power Supply100-240 VAC, 50/60 Hz
- Power Consumptionâ‿111 W
- Standby Consumptionâ‿0.5 W,
- Working Temperature0°C to 40°C (32°F to 104°F)
- Working Humidity10% to 80% RH (non-condensing)
- Storage Temperature-20°C to 60°C (-4°F to 140°F)
- Storage Humidity10% to 80% RH (non-condensing),
- Casing MaterialSECC
- VESA600 (H) mm × 400 (V) mm
- Product Dimension (W × H × D)1021.98 mm × 576.57 mm × 72.25 mm (40.24'' × 22.7'' × 2.84'')
-
Package Dimension (W × H × D)
Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
- Net Weight19.8 ± 0.5 kg (43.65 ± 1.1 lb) for single display
-
Gross Weight
Carton with two displays: 48.5 ± 0.5 kg (106.92 ± 1.1 lb)
Carton with a single display: 24.42 ± 0.5 kg (53.84 ± 1.1 lb)
- Packing ListLCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
Built-in System
- Processor Intel? Core i5 9400H
- CPU Clock Speed2.5GHz
- Platform ArchitectureIntel? Coffeelake
- PCHIntel? Z370
- GraphicsIntel? UHD Graphics 630
- Memory8G
- Storage256G
- NICIntegrated 10/100/1000M Adaption
- Cooling SystemSingle Brass & Single Fan
Interface
- Network InterfaceRJ45×1
- Data Transmission InterfaceBluetooth 4.2
- Antenna2
- Video OutputHDMIx1, DPx1
Power
- Input Voltage12V-19V DC
- Max. Consumption60W
- Standby Consumption0.5W
Working Environment
- Storage Temperature-20°C - 60°C
- Storage Humidity10%-90%
- Working Temperature0°C - 40°C
- Working Humidity10%-90%
General
- ColorBlack
- Product Dimensions (W × H × D)180×195×30mm
- Net WeightAbout 1.24kg
