Hikvision DS-C60S-PRE Preview Board Video Wall Controllers

• Supports a maximum of 1 preview board.

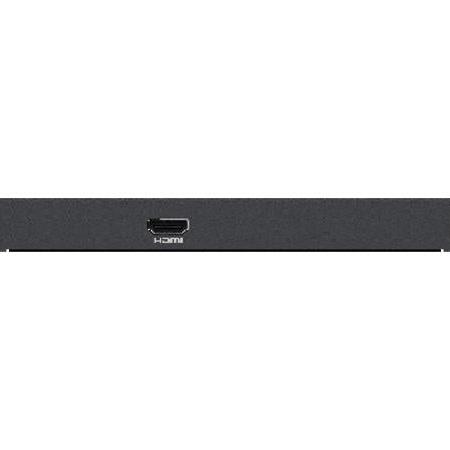

• Supports displaying the image of a video wall on the screen connected to the HDMI port of the preview board. The image is smooth without black screen or blue screen.
• Support remotely previewing the image via the client. The image is smooth without black screen or blue screen
• Supports remote live view of local signal source.

Specification

• Chassis
• Occupied SlotOutput slot

• Video Wall
• Display Video Wall ImageOutput resolution for displaying video wall image on the connected screen: 1080p@60 Hz
• Preview Channels

  Maximum number of different source preview channels: 16

  Maximum number of preview channels: 80

  Number of video walls can be displayed on the screen or previewed on the client: 1

• Video Encoding
• Video Encoding FormatH.264
• Video Encoding Capability

  Encoding resolution for displaying video wall image: 1080p30

  Encoding resolution for input live view: D1
