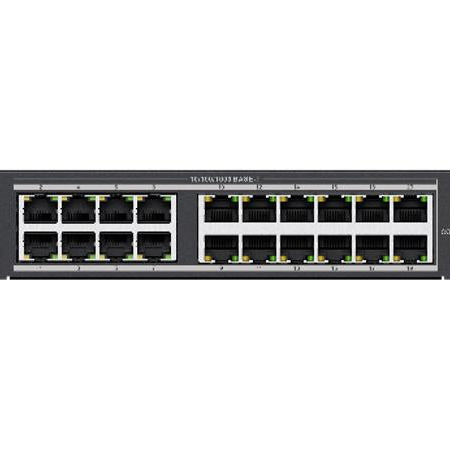

Hikvision DS-C60S-20NO LED Sending Card Board Video Wall Controllers

• Occupies two slots of the chassis.
• Supports directly connecting to the LED screens via network cables.
• Provides 20 Gigabit Ethernet ports with the maximum loading resolution of 0.65 MP per port.
• Support customizing the loading resolution that is no larger than 10.4 MP with the width ranging from 64 to 16384 and height ranging from 64 to 8192. The width must be a multiple of 4.
• Supports 444 video signal output.

Specification

• Chassis
• Occupied SlotOutput slot

• Video Output
• Video Output Interface TypeRJ-45
• Max. Video Output Resolution10400000
• Loading Capacity for Video Output to LED

  Single mesh port with load 650000,

  Width 144-8192;

  Height 144-4320;

• LED Loading Interfaces20
