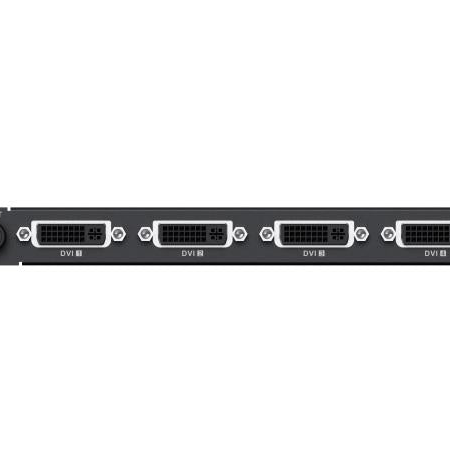

Hikvision DS-C60S-04DO DVI Output Board Video Wall Controllers

• The HDMI output board provides 4 DVI ports and supports YUV 444 output.

Specification

• Chassis
• Occupied SlotOutput slot

• Video Output
• Video Output Interface TypeDVI-D
• Video Output Interfaces4
• Max. Video Output Resolution1080p
• Video Output Resolution

  1920 × 1200@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1680 × 1050@60 Hz,

  1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1024 × 768@60 Hz

  Supports LED screen, custom resolution output, 60 Hz loading output, and 2.6 MP loading with width ranging from 144 to 4096 and height ranging from 144 to 2160.

• Loading Capacity for Video Output to LED2.6 MP loading per port, width in the range of 144 to 4096, height in the range of 144 to 2160.
