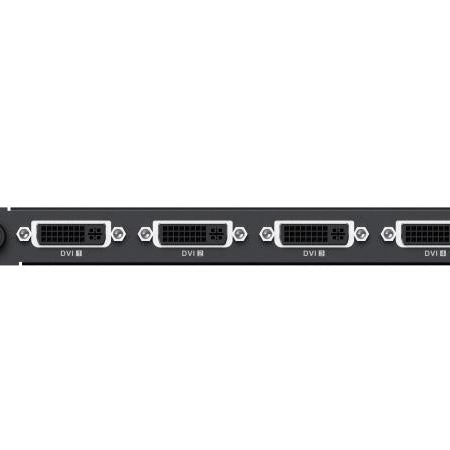

Hikvision DS-C60S-04DI DVI Input Board Video Wall Controllers

• Supports 4 channels of video input and YUV 444 collection.

Specification

• Chassis
• Occupied SlotInput slot

• Video Input
• Video Input Interface TypeDVI-D
• Video Input Interfaces4
• Max. Video Input Resolution1080p
• Video Input Resolution

  1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz,

  1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720p@50 Hz,

  1280 × 720p@60 Hz, 1920 × 1080p@50 Hz, 1920 × 1080p@60 Hz, 1920 × 1200@60 Hz

  Custom resolution: width ranges from 800 to 2560, height ranges from 600 to 2560. Width must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz. When configuring 30 Hz frame rate, the resolution ranges from 1280 × 720 to 2048 × 1152. When configuring 60 Hz frame rate, the resolution ranges from 800 × 600 to 2048 × 1152.
