Hikvision

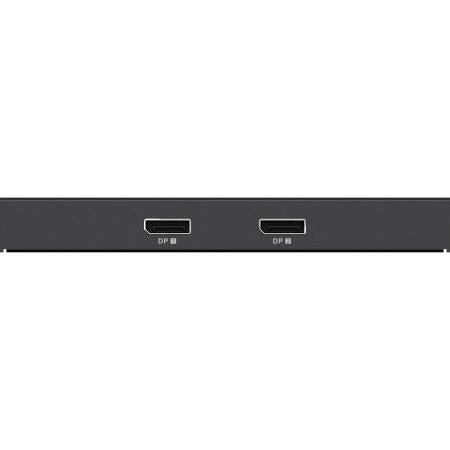

Hikvision DS-C60S-02DPI/4K DP Input Board Video Wall Board

Hikvision DS-C60S-02DPI/4K DP Input Board Video Wall Board

Out of stock

DS-C60S-02DPI/4K

Login to see price
Login to see price Login to see price
Sale Sold out
  • Supports 2 channels of DP input and YUV 444 collection.
  • Supports DP composite audio input.

Specification

          • Chassis
          • Occupied SlotInput slot
          • Audio Input
          • Audio Input Interfaces2
          • Audio Input Interface TypeDP composite audio
          • Audio Sampling Rate48K sampling rate
          • Audio ChannelDual channel
          • Video Input
          • Video Input Interface TypeDP 1.2
          • Video Input Interfaces2
          • Max. Video Input Resolution4K
          • Video Input Resolution

            4096 × 2160@60 Hz, 4096 × 2160@30 Hz, 3840 × 2160@60 Hz, 3840 × 2160@30 Hz,

            1920 × 1200@60 Hz, 1920 × 1080p@60 Hz

            Custom resolution: width ranges from 800 to 8192, height ranges from 600 to 8192. Width must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz. When configuring 30 Hz frame rate, the resolution ranges from 1920 × 1080 to 4096 × 2160. When configuring 60 Hz frame rate, the resolution ranges from 800 × 600 to 4096 × 2160.

            View full details
