Chief (legrand AV)

Chief Freestyle Flat Panel Rotation Adapter for Fusion and Connexsys

Chief Freestyle Flat Panel Rotation Adapter for Fusion and Connexsys

Low stock

SKU:FRA

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

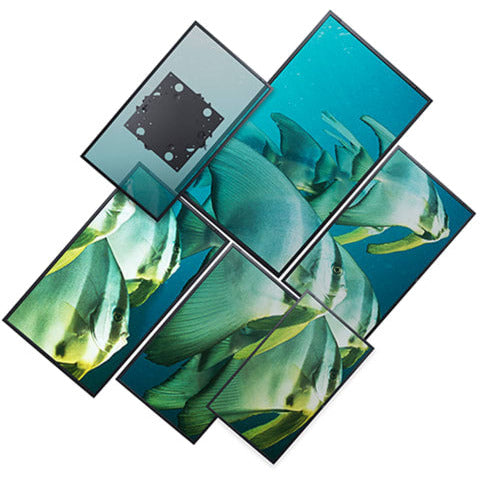

The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys™ or Fusion® mounts.

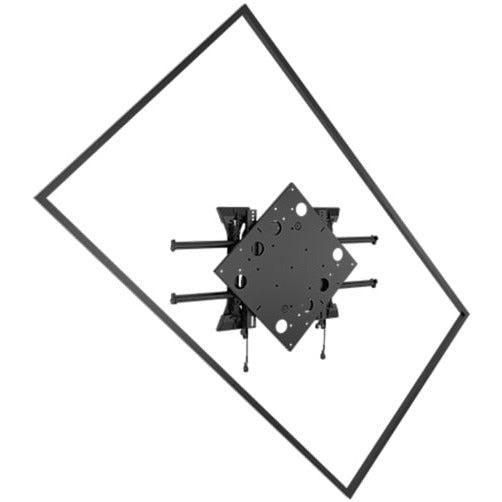

FRA shown in picture with Fusion® mount.

Note: Please see the selection guide in the Resources tab to ensure visual coverage of mount at all angles.

Mounting pattern can be 600 x 400 if using FHB5036 for M6 screws or FHB5037 for M8 screws.

  • Positive lockouts at 15 degree increments
  • Provides 90 degrees of rotation for 360 degrees of range
  • Overlapping displays (with Fusion® FCADA) adds another level of customization and creativity
  • Micro-adjustment (with ConnexSys™)
  • Weight capacity when used with ConnexSys™: 125 lbs (56.7 kg)
  • Weight capacity when used with STMS1U, MTMS1U: 55 lbs (24.95 kg)
  • Use with Fusion® wall, ceiling and freestanding mounts
Dimensions & Measurements
Depth
2.1 cm (0.8 in)
Height
43.8 cm (17.3 in)
Minimum Depth
2.1 cm (0.8 in)
Overall Dimensions
17.25 x 17.25 x 0.84" (438 x 438 x 21 mm)
Typical Screen Size
Greater than 40” (1016mm) using MTMS1U or STMS1U: 19” minimum display height at 45°. Greater than 55” using ConnexSys: 27” minimum display height at 45°
Weight Capacity
With MTMS1U, STMS1U 55 lbs (24.95 kg): With ConnexSys 125 lbs (56.7 kg)
Width
43.8 cm (17.3 in)
Characteristics & Features
Application
  • Ceiling
  • Floor-Cart
  • Wall
Color
Black
Notes
Positive lockouts at 15 degree increments
Orientation
  • Landscape
  • Portrait
Solution Type
Universal
TAA Compliant
No
VESA Mounting Pattern
200 x 200; 200 x 300; 200 x 400; 300 x 300; 400 x 400; (600 x 400 if using FHB5036 or FHB5037 bracket accessory)
