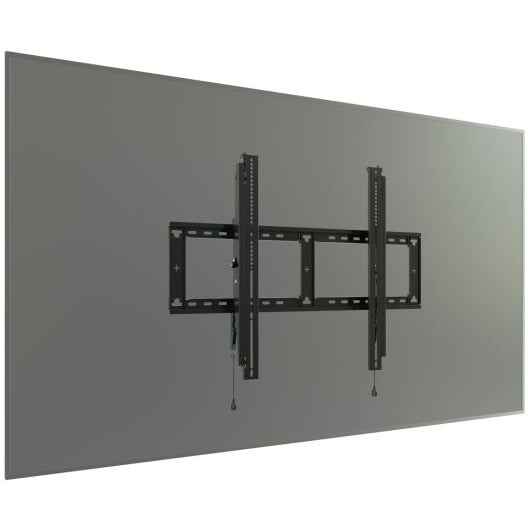

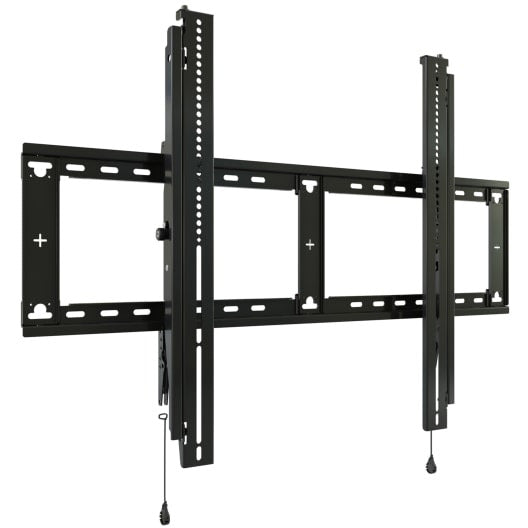

Cheif RXT3 Extra Large Universal Tilt Mount

The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5” (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.

• Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
• Display can be tilted up to 12° to set the optimal viewing angle

• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 915 x 650 mm
• Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords

• Kickstand for easy access to power and signal connections
• Theft deterrent security options (not included)
• UL and TUV safety standards approved
