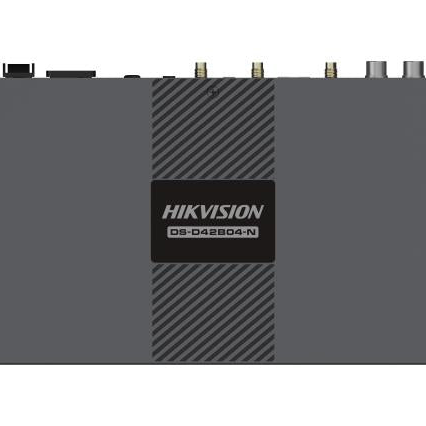

Hikvision DS-D42B04-N LED controller

Hikvision DS-D42B04-N LED controller

Out of stock

DS-D42B04-N

Login to see price
Login to see price Login to see price
Sale Sold out
  • Loading capacity up to 2,300,000 pixels, maximum width: 4096 pixels, maximum height: 4096 pixels
  • 4x Gigabit Ethernet ports
  • 1x HDMI1.4 output port, support up to 1080P@60Hz
  • 1x HDMI1.4 input port, support full-screen scaling in synchronous mode

Specification

Processing Performance

  • Brightness Control: 1-100 Levels
  • Frame Frequency: 30HZ-60HZ
  • Grey Level: 256
  • Display Color: 1 Billion
  • Processing Depth: 8bit
  • Image Scaling: Support

Product Model

  • Product Model: DS-D42B04-N

Chassis

  • Chassis Height: 0.9U
  • Chassis Width: 3.12U

Product Type

  • Product Type: LED Controller

LED Controller Power

  • Average Consumption ≤18W
  • Number of power interfaces 1
  • Power interface specifications 100-240V~，50/60Hz，0.6A

General

  • Working Temperature -20℃～+60℃
  • Storage Humidity 0%RH～80%RH
  • Working Humidity 0%RH～80%RH
  • Storage Temperature -40℃～+80℃
  • Packaging Size (W × H × D) 385.0mm×280.0mm×75.0mm
  • Net Weight: 1230.4g
  • Gross Weight: 1650g
  • Dimensions (W × H × D)274.3mm×139.0mm×40.0mm

Packing List

  • 1x Wi-Fi omnidirectional antenna
  • 1x AC power cord
  • 1x Quick Start Guide
  • 1x Packing list

Audio Input

  • Audio Input Interface(s): 1
  • Audio Input Interface Type: HDMI INLINE

Video Input

  • Video Input Interface(s): 1
  • Video Input Interface Type: HDMI1.4
  • Max. Input Resolution: 1080p@60hz
  • Video Input Resolution: 1080p@60hz
  • Video Input Processing Characteristics
  • Processing depth 8 BIT

Sampling format:

  • RGB:444
  • YUV:444
  • YUV:422

Video Output

  • Max. Output Resolution: 2.3 Million
  • Loading Capacity for Video Output to LED
  • Single port with load 650000
  • Width 64~4096
  • Height 64~4096
  • LED Loading Interfaces: 4
  • LED Loading Interface Type: RJ45
  • Number of video ring pass output interfaces: 1
  • Video looping output interface type: HDMI1.4
  • Video looping output resolution: 1080p@60hz

Audio Output

  • Audio Output Interface(s): 1
  • Audio Output Interface Type: 1 LINE OUT 3.5mm audio out

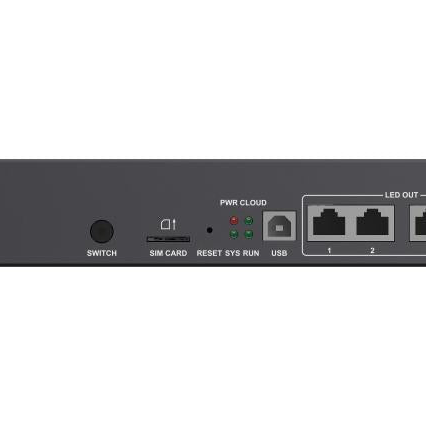

Front Panel

  • Screen: NA
  • Key: SWITCH
  • pilot lamp
  • PWR:RED,
  • Staying on-The power supply is working properly
  • SYS:GREEN,
  • Flashing once every 2s-The operating system is functioning normally
  • Staying on/off-The operating system is malfunctioning
  • CLOUD:GREEN
  • Staying on-The DS-D42B04-N is connected to the Internet and the connection is available
  • Flashing once every 2s-The DS-D42B04-N is connected to VNNOX and the connection is available
  • Flashing once every second-The DS-D42B04-N is upgrading the operating system
  • Flashing once every 0.5s-The DS-D42B04-N is copying the upgrade package.
  • RUN:GREEN
  • Flashing once every second-The FPGA has no video source
  • Flashing once every 0.5s-The FPGA is functioning normally
  • Staying on/off-The FPGA loading is abnormal

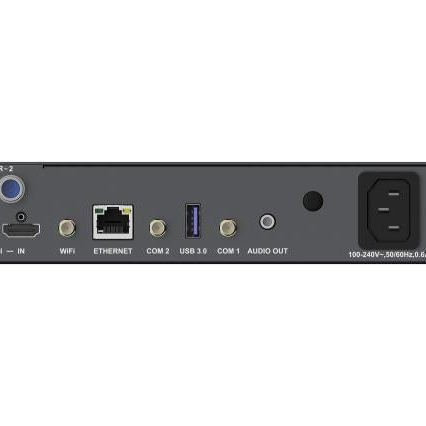

Control Interface

  • Control network port
  • 4xRJ45, 10M/100M/1000M adaptive Ethernet ports
  • Used to connect to external networks, can support multi-device network cascade management
  • 3D interface: NA
  • IR input: NA
  • Serial Interface: 1XGigabit Ethernet port
  • Light perception: 2XSENSOR
  • USB1XUSB 3.0
  • On-off: Switch
