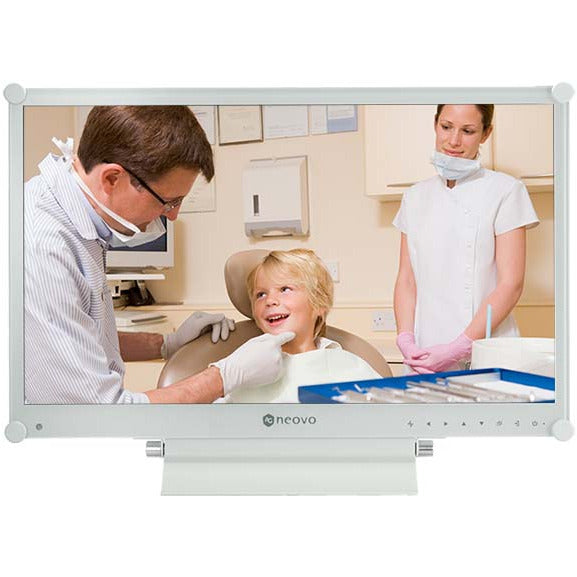

AG Neovo DR-22G 22-Inch 1080p Dental Monitor

AG Neovo DR-22G 22-Inch 1080p Dental Monitor

In stock

DR-22G

Login to see price
Login to see price Login to see price
Sale Sold out

Features:

  • Full HD 1920 x 1080p Resolution
  • NeoV Optical Glass Screen for Clinic Hygiene
  • PiP/PbP Support
  • Metal Casing Design
  • Shortcut to Switch to X-Ray mode

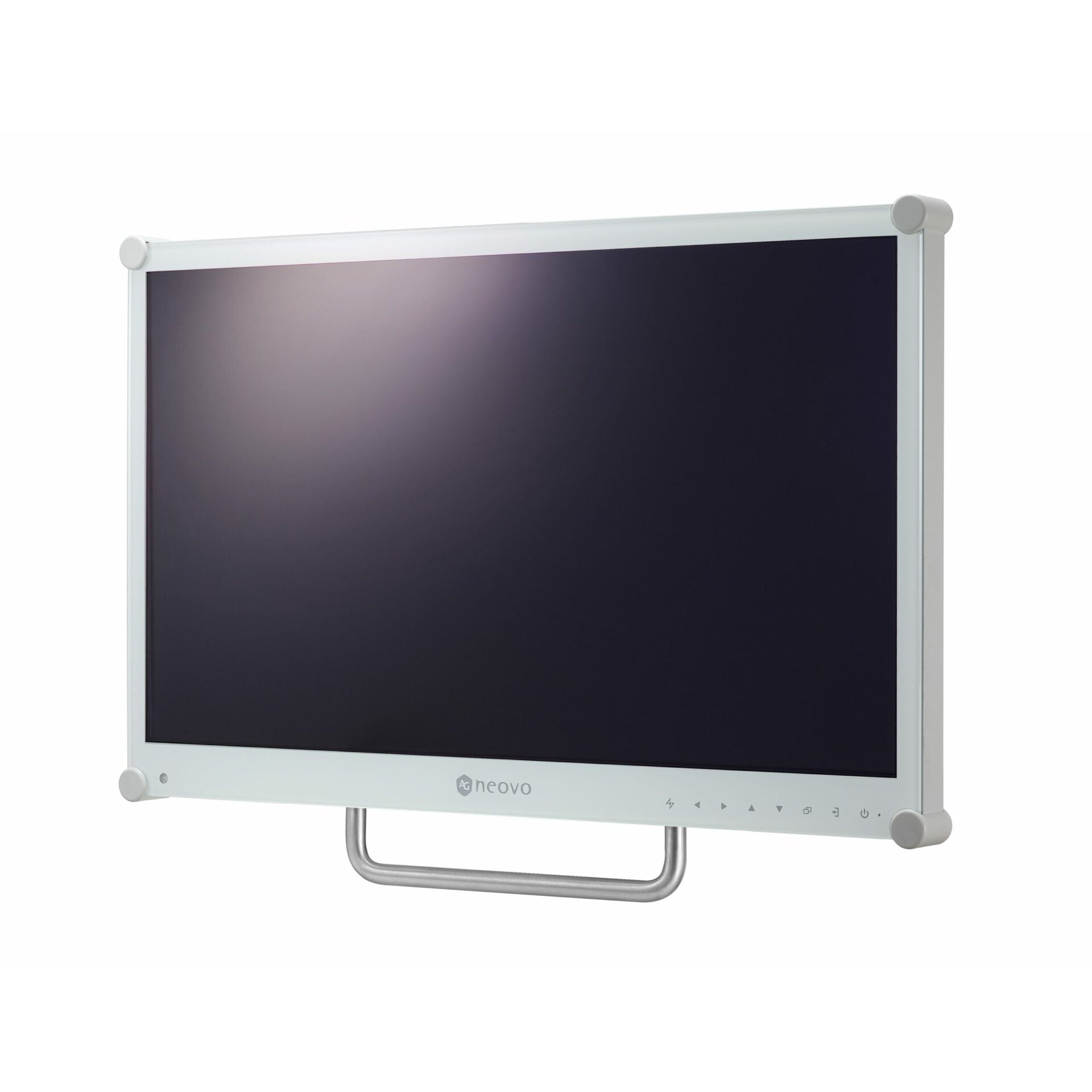

  • Optional Handle for Dental Chair Setup
  • Certified with IEC/EN 60601-1 and IEC/EN 60601-1-2

The AG Neovo DR-22G is a 22-inch dental monitor that features a quick switch to X-ray illuminator mode for dental X-ray film viewing without using another X-ray view box. With advanced gamma correction, black-level alignment adjustability, and high contrast ratio, the dentists can verify the patient’s condition of teeth, jaw placement, and facial bone before dental treatment. The NeoV™ Optical Hard Glass Screen and white metal casing design meet an array of medical level cleaning requirements, allowing dental professionals to clean and sanitise the monitors.

EASY CLEAN AND ROBUST PROTECTION

The special design of NeoV™ Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.


QUICK SWITCH TO X-RAY VIEWING MODE

The DR-22G 22-inch dental monitor integrates hotkey operation to switch X-ray viewing mode without using another X-ray view box.


DC 24V MEDICAL-GRADE POWER ADAPTER FOR A LONGER DISTANCE CONNECTION

Designed with DC 24V power supply, it is ideal for long-distance (up to 5 meters) cable management between dental equipment and displays. The medical power supply with IEC / EN60601-1 and IEC / EN60601-1-2 certified ensures safety, performance and reliable operation.


IEC/EN 60601-1 AND IEC/EN 60601-1-2 CERTIFIED

In addition to medical-grade power supply, the DR-22G is fully certified with IEC/EN 60601-1 and IEC/EN 60601-1-2 that ensures the safety and essential performance of medical electric equipments.


PIP/PBP SUPPORT

Enhance work efficiency with PiP/PbP support for multitasking


GREAT MOBILITY

This 22-inch dental monitor meets VESA 75mm/100mm wall mount standard and optional handle for flexible installation and operation on dental chair.

Specifications:

Panel
  • Panel Type
  • TN
  • Panel Size
  • 21.5"
  • Max. Resolution
  • FHD 1920 x 1080
  • Pixel Pitch
  • 0.248 mm
  • Brightness
  • 250 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 170°/160°
  • Display Colour
  • 16.7M
  • Response Time
  • 3 ms
Frequency
  • Frequency (H)
  • 24 kHz-83 kHz
  • Frequency (V)
  • 50 Hz-75 Hz
Signal Input
  • DisplayPort
  • x 1
  • HDMI
  • 1.4 x 1
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
  • Composite
  • BNC x 2
  • S-Video
  • 4-Pin mini DIN x 1
Signal Output
  • Composite
  • BNC x 2
External Control
  • RS232 In
  • 2.5 mm Phone Jack
Other Connectivity
  • USB
  • 2.0 x 1 (Service Port)
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Stereo Audio Jack (RCA)
  • Audio Out
  • Stereo Audio Jack (RCA)
  • Internal Speakers
  • 2W x 2
Power
  • Power Supply
  • External
  • Power Requirements
  • DC 24V
  • 2.71A
  • On Mode
  • 16W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Glass
  • Thickness
  • 3.0 mm (0.12")
  • Reflection Rate
  • < 1%
  • Transmission Rate
  • > 97%
  • Hardness
  • > 9H
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 10%-90% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 5%-95% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm & 75 x 75 mm)
Stand
  • Tilt
  • 0° to 17°
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 513.2 x 368.5 x 155.0 mm (20.2" x 14.5" x 6.1")
  • Product w/o Base (W x H x D)
  • 513.2 x 324.3 x 56.2 mm (20.2" x 12.8" x 2.2")
  • Packaging (W x H x D)
  • 614.0 x 477.0 x 204.0 mm (24.2" x 18.8" x 8.0")
Weight
  • Product with Base
  • 6.8 kg (15.0 lb)
  • Product w/o Base
  • 6.2 kg (13.7 lb)
  • Packaging
  • 9.3 kg (21.0 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • FCC
  • LVD
  • BSMI
  • WEEE
  • RoHS
  • REACH
  • UKCA
  • EAC
  • ICES-003(Issue 7)
  • IEC/EN 60601-1
  • IEC/EN 60601-1-2
Accessories
  • Supplied
  • Audio Cable
  • Power Adaptor
  • Power Cord
  • Quick Start Guide
  • VGA Cable
Optional Accessories
  • Handle
  • HDL-02

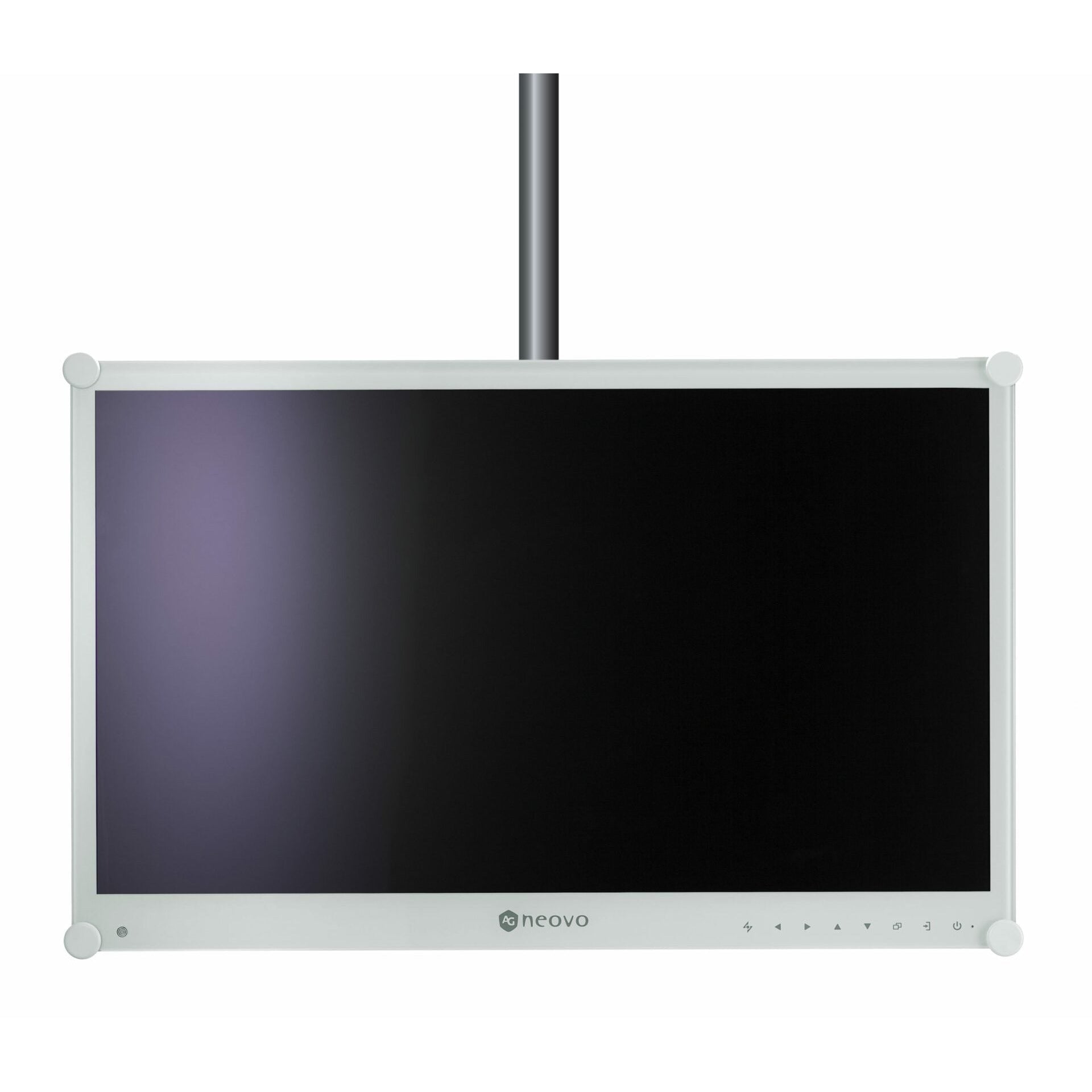

  • Ceiling Mount (Landscape only)
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • PMK-01
  • WMA-01
  • WMK-01
  • WMK-03
  • Desk mount (Landscape only)
  • DMC-01
  • DMC-02D
  • DMS-01D
  • ES-02
