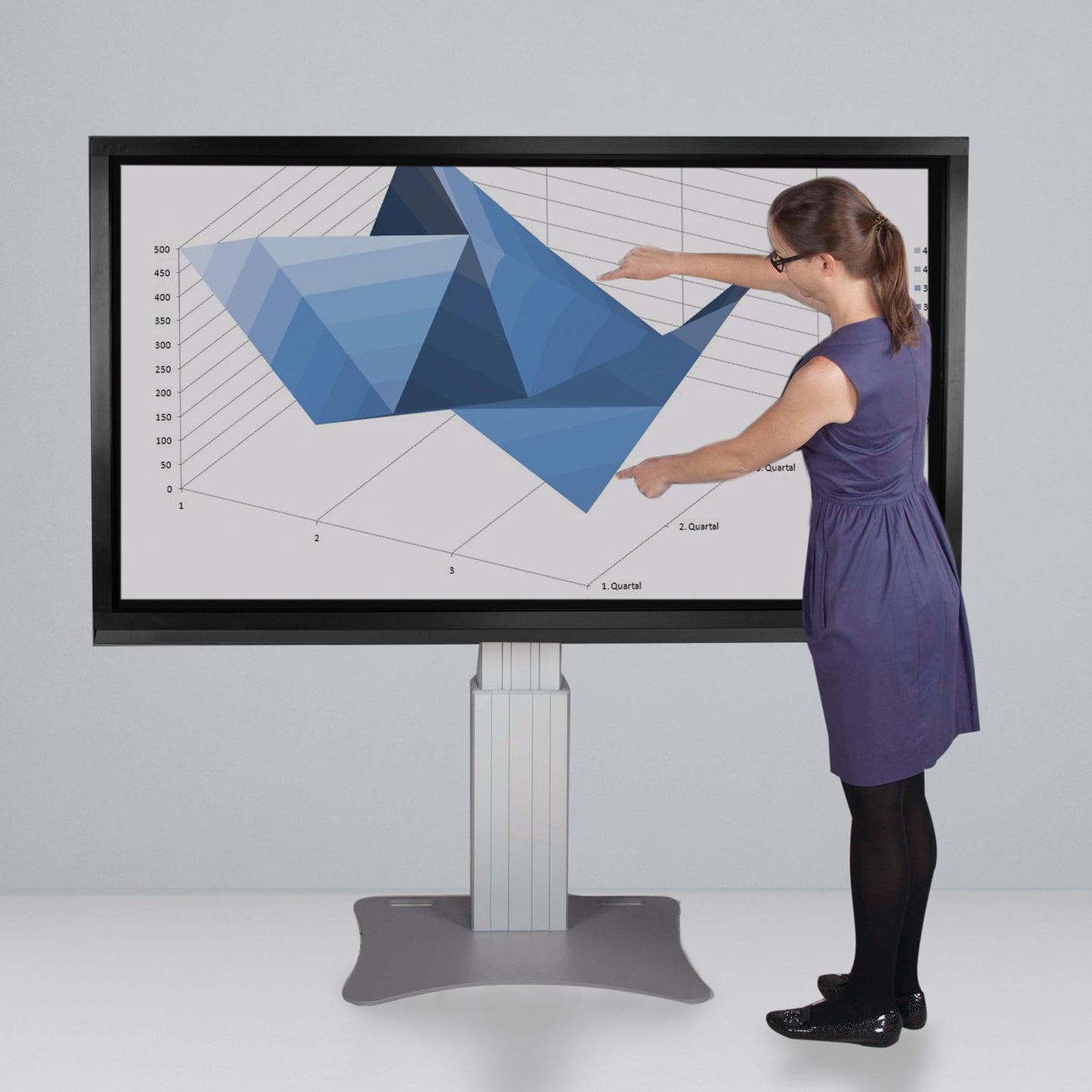

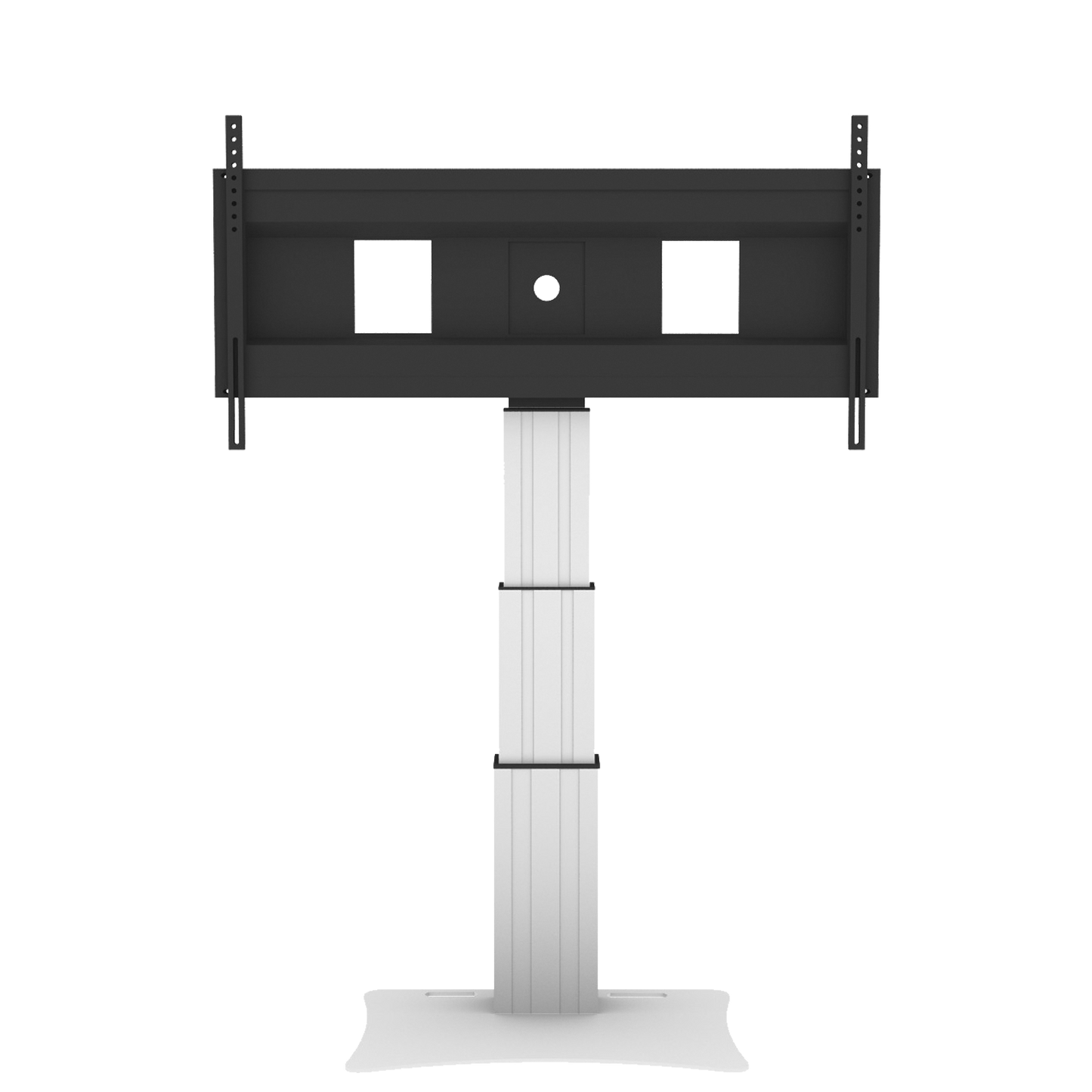

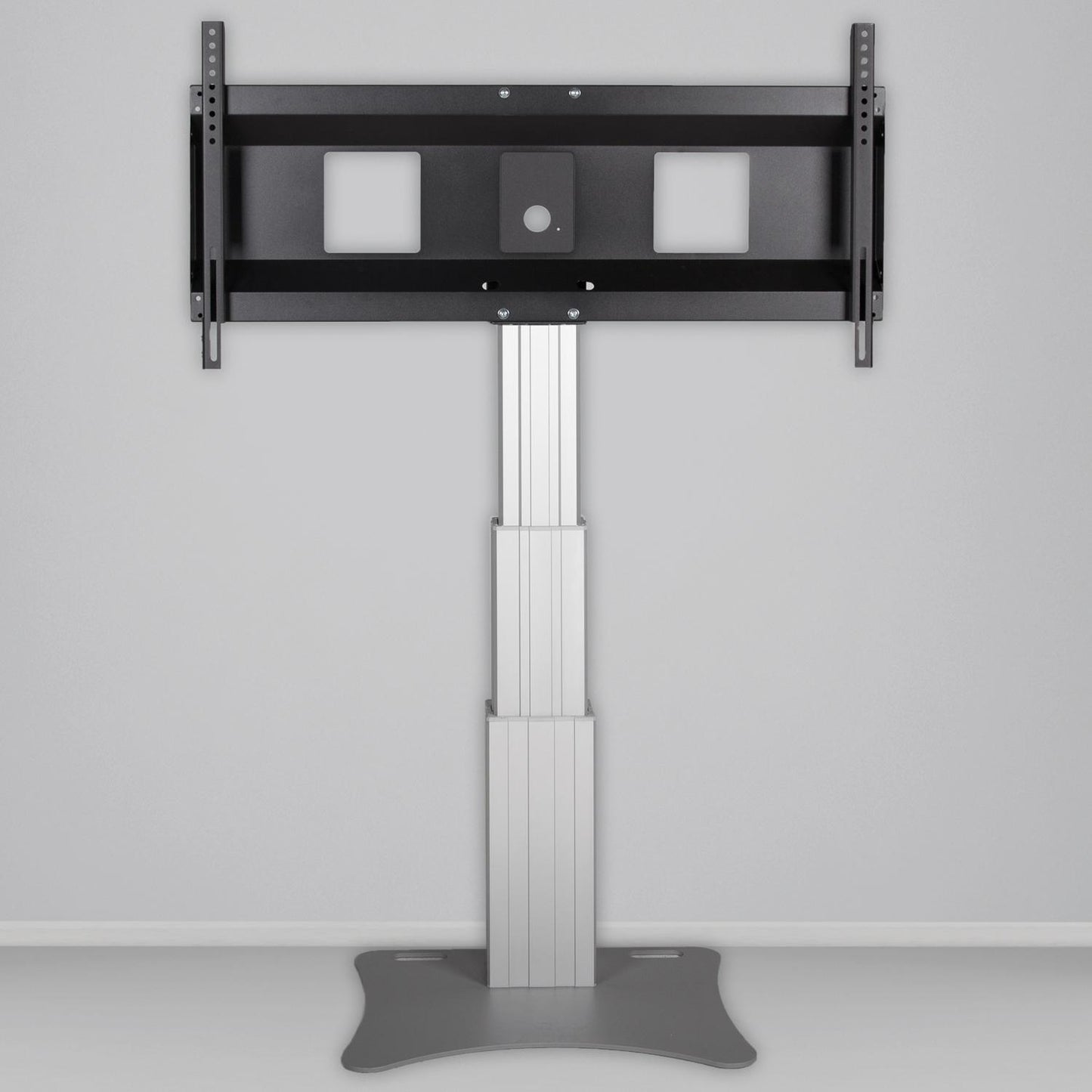

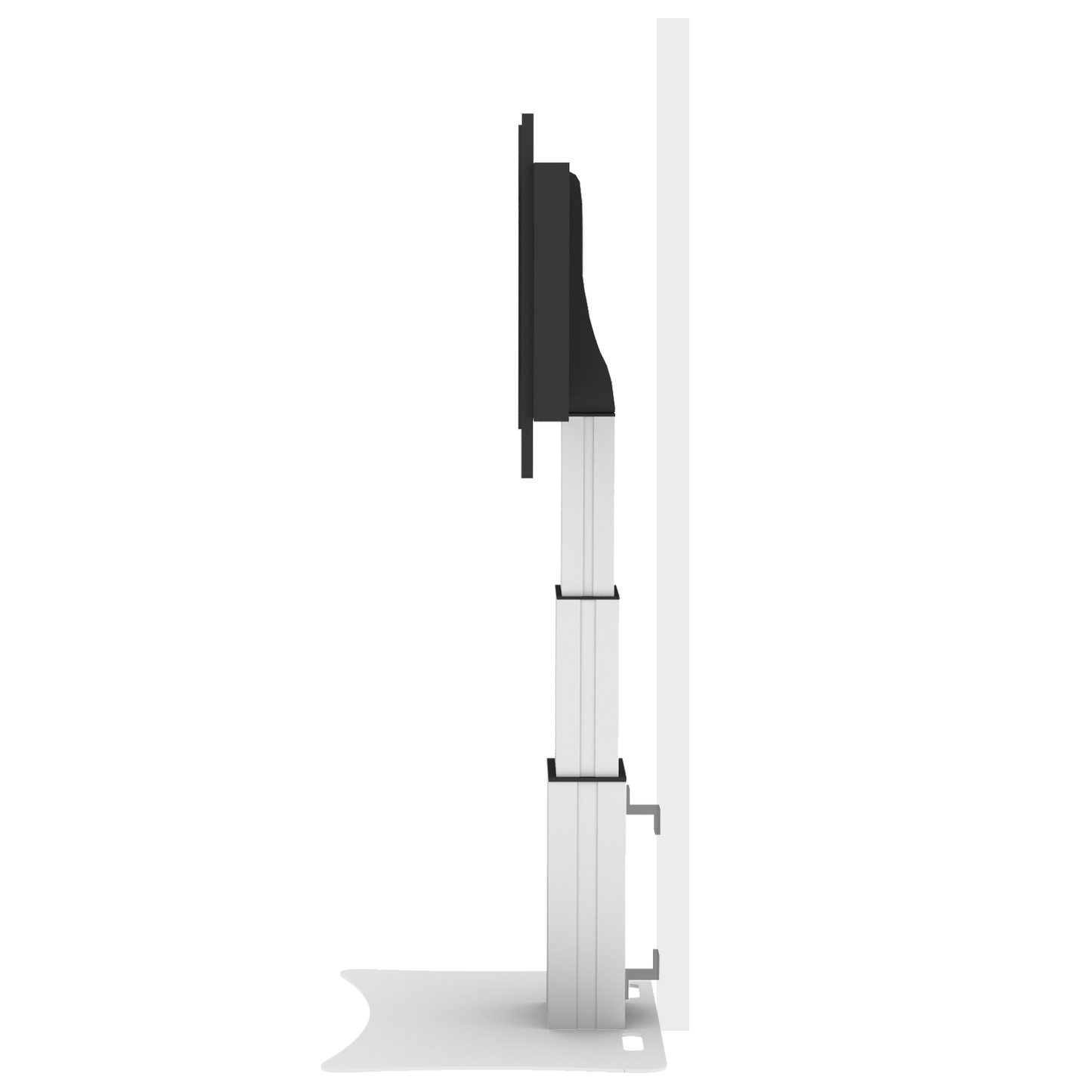

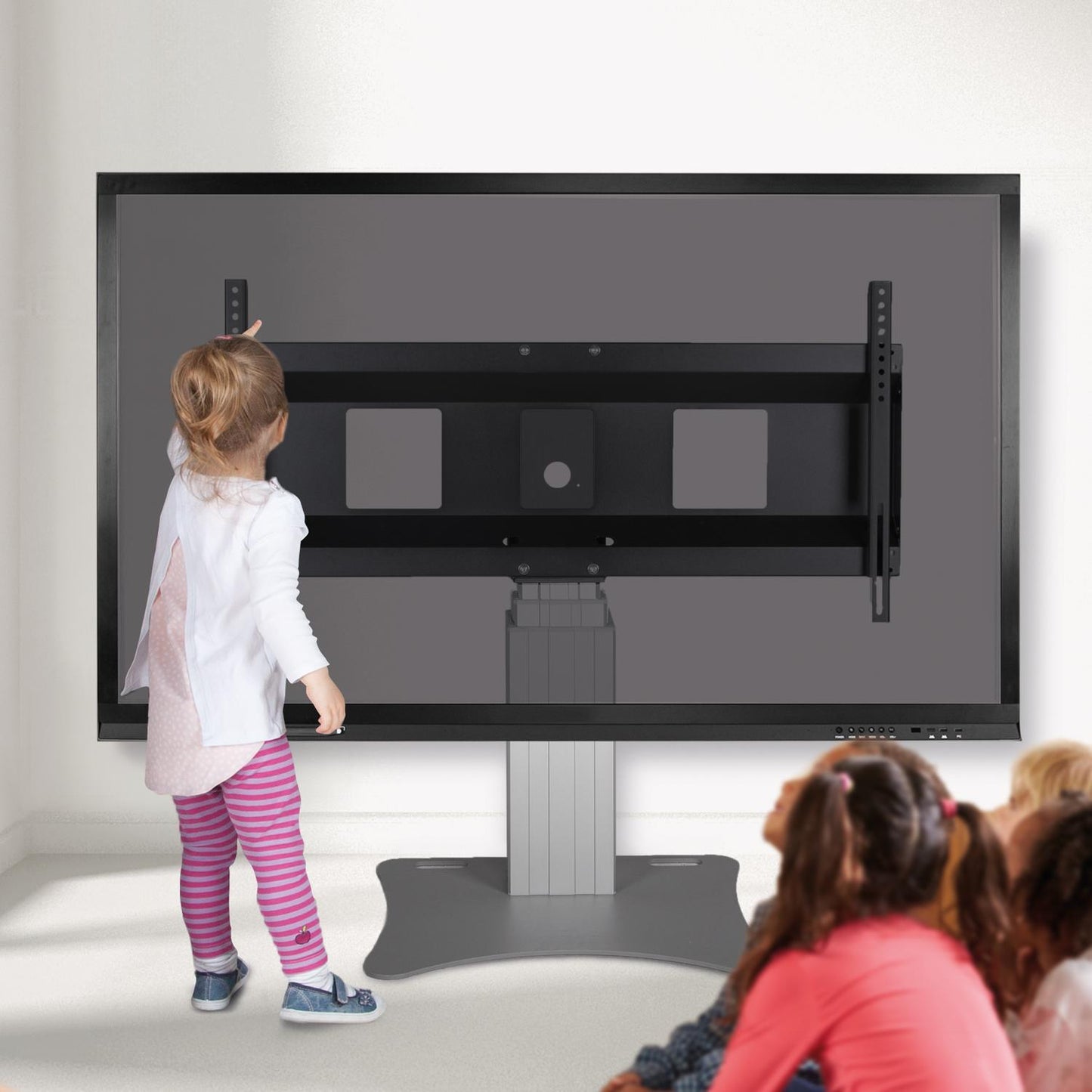

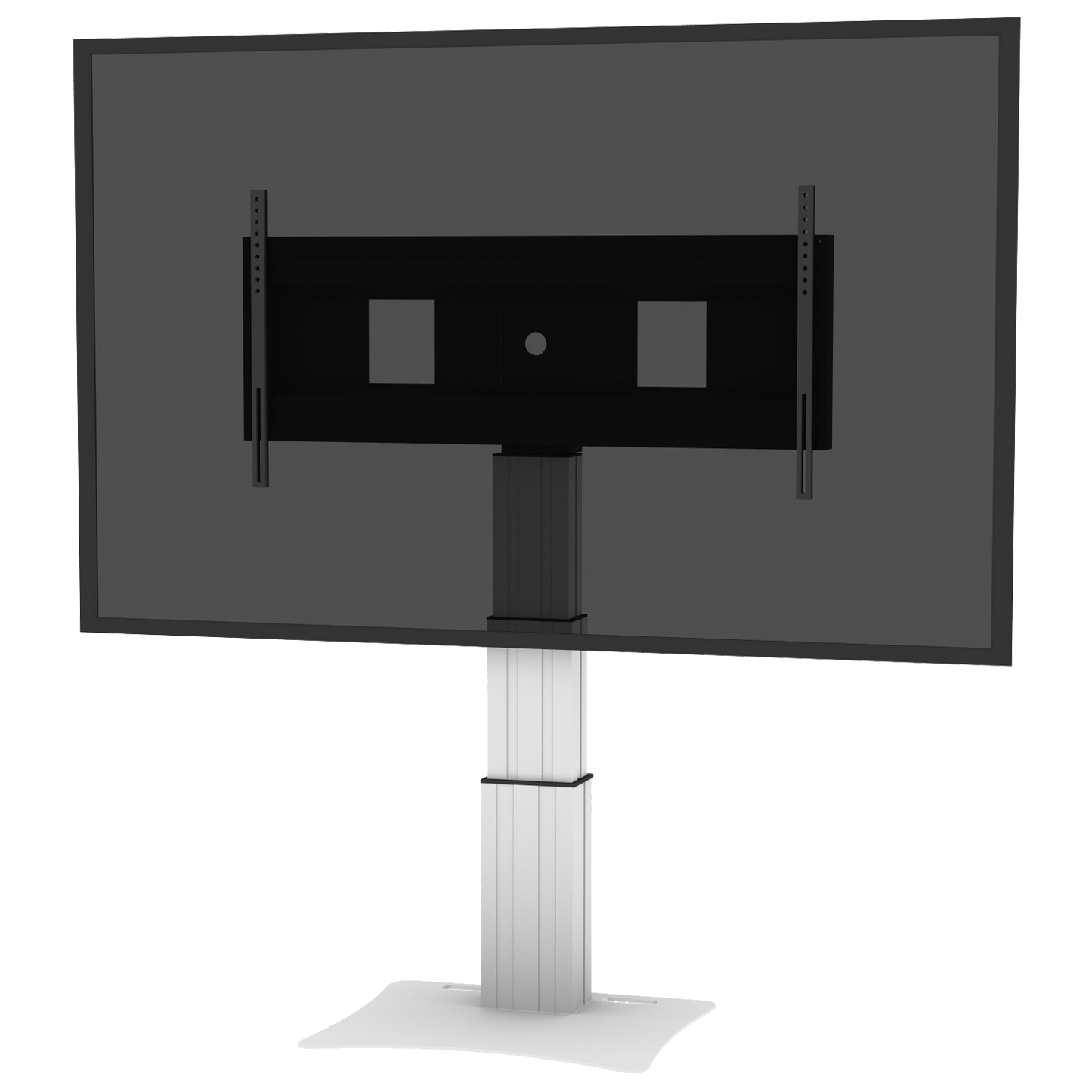

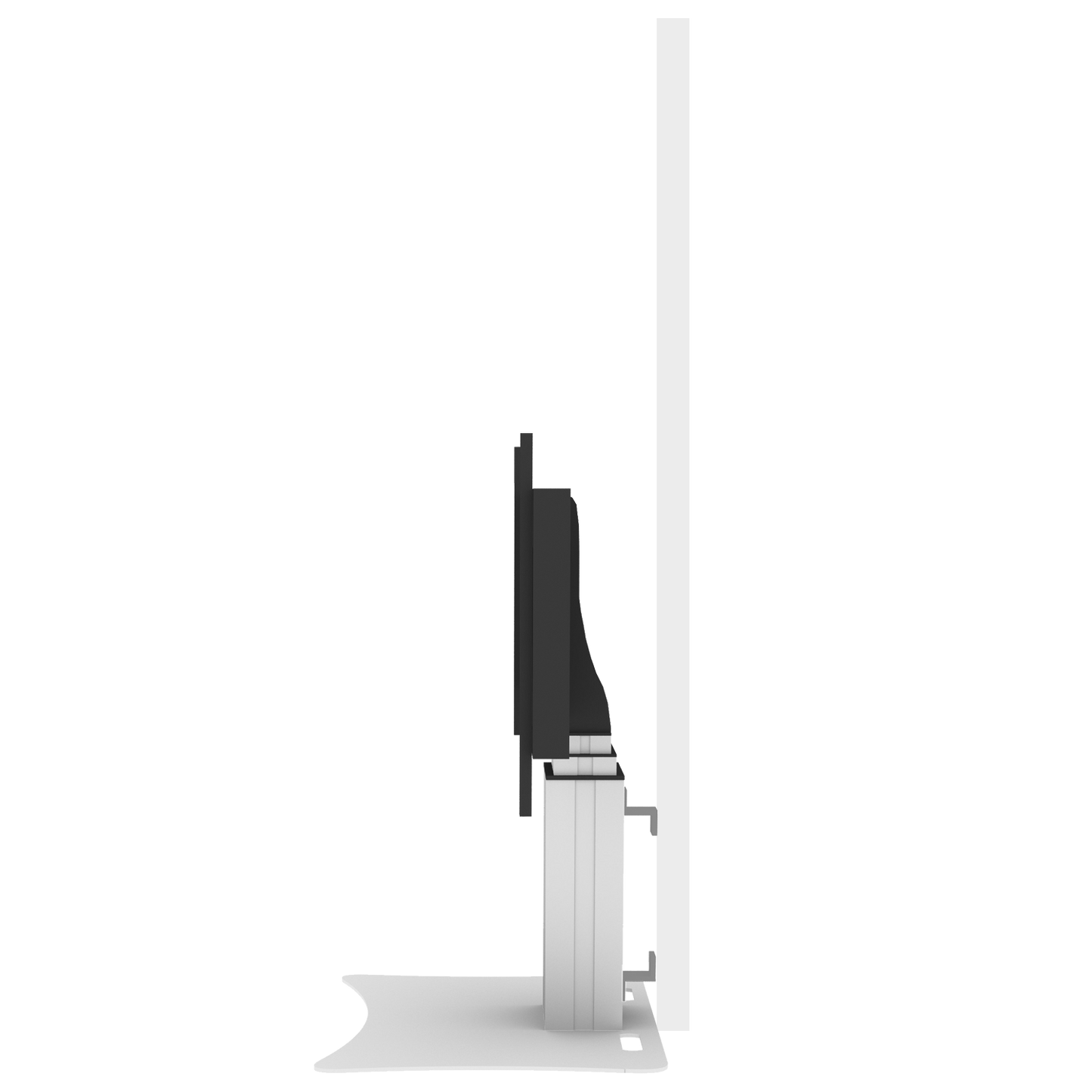

Motorized monitor stand with XL display mount. Designed specifically for use with interactive touch screen monitors, this motorized tv wall mount features an extra wide display mount. The system comes standard with the 3-tier column which offers 30” of height adjustment.
A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to monitor wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powdercoated in grey aluminum.
The unit comes flat-packed in 3 cartons and is courier-shippable.
Features
XL wide display mount with max. VESA 1200x600
Designed for use with IFPDs and LFDs
Easy mounting of display thanks to "pull & release" brackets
Display mount with integrated cable management
Actuator safely concealed in center column offering 70 cm of vertical travel
Wired remote is standard included
Optimum stability thanks to the floor plate and 2 wall mount brackets
Specifications
Item Number: SCEXLP3535
VESA Horizontal Compatibility: 400 mm - 1200 mm
VESA Vertical Compatibility: 200 mm - 600 mm
Frame Compatibility: 70" - 120"
Vertical Travel: 70 cm
Center to Floor Distance: 843 mm - 1543 mm (33.2" - 60.7")
Load Capacity: 136 kg (299.8 lbs)
Width: 1290 mm (50.8")
Height: 1163 mm - 1863 mm (45.8" - 73.3")
Depth: 530 mm (20.9")
Weight: 60.8 kg (134 lbs)
Warranty: 5 years limited warranty
Frame Color: RAL 9005 deep black
Column Color: Silver anodized
Base Color: RAL 9006 white aluminum
Packaging Details:
AFSCETAN12: 1300 x 450 x 160 mm (51.2 x 17.7 x 6.3") - 17 kg (37.5 lbs)
CCE-3535W: 760 x 270 x 220 mm (29.9 x 10.6 x 8.7") - 24 kg (52.9 lbs)
PSTSCETA: 750 x 20 x 600 mm (29.5 x 0.8 x 23.6") - 21.8 kg (48.1 lbs)
