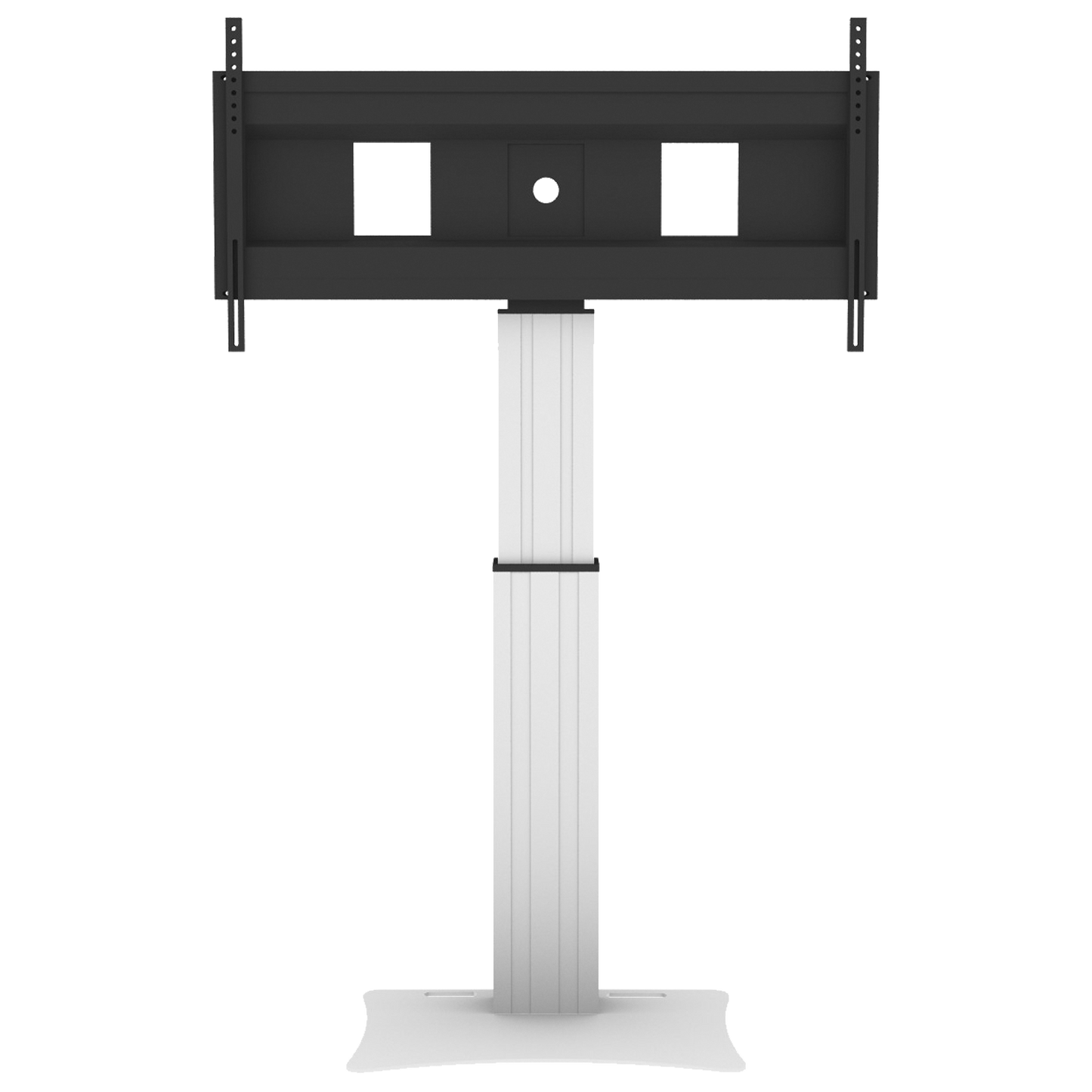

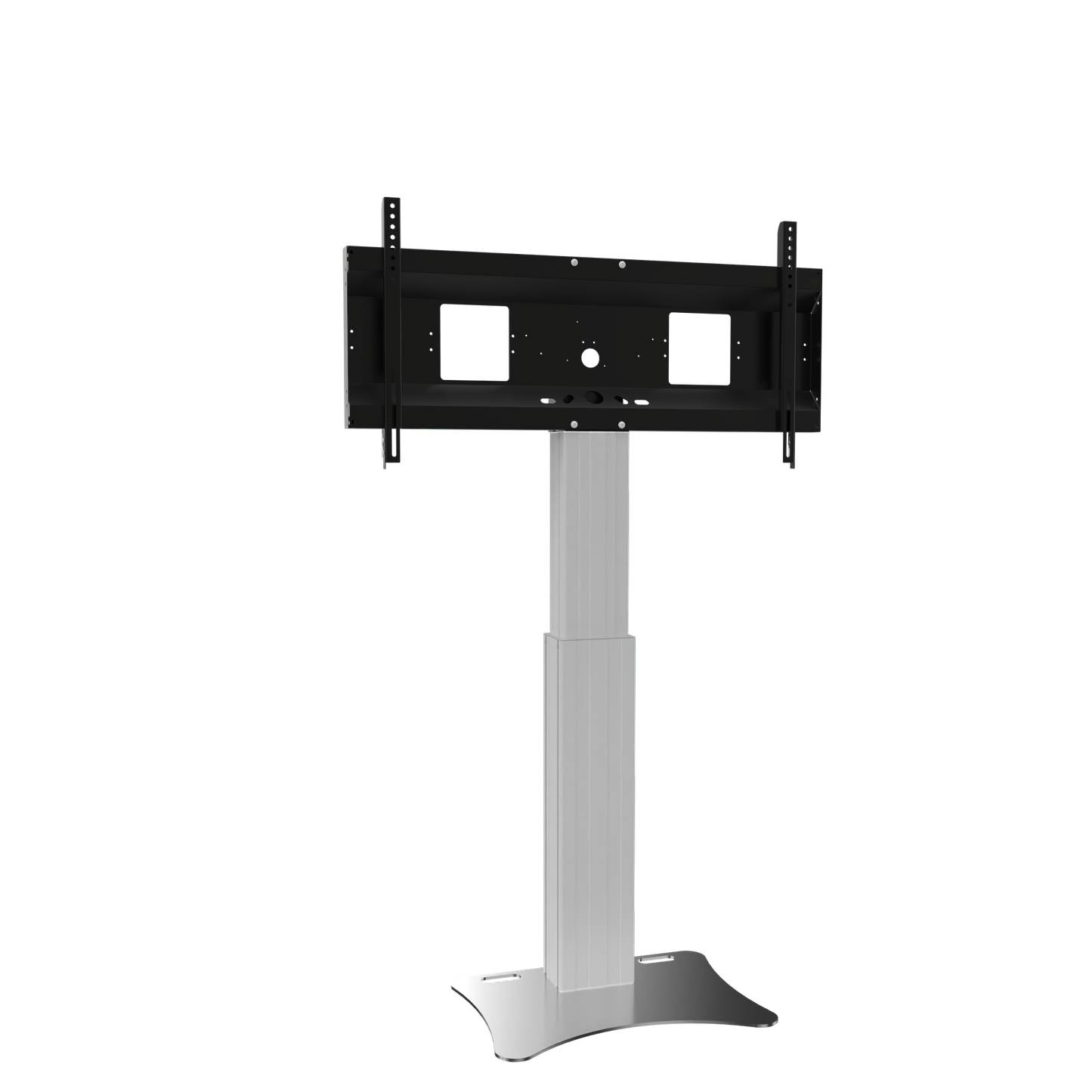

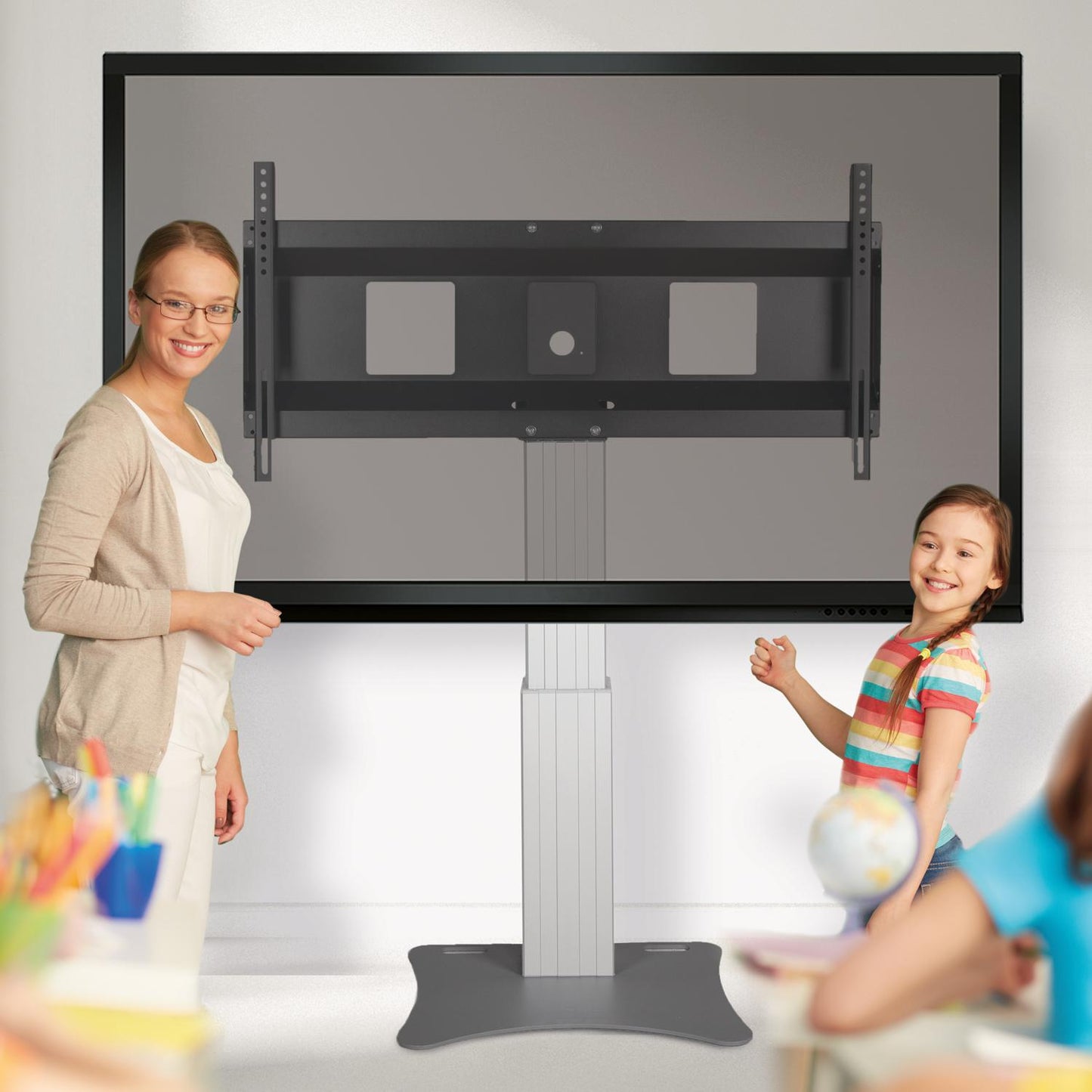

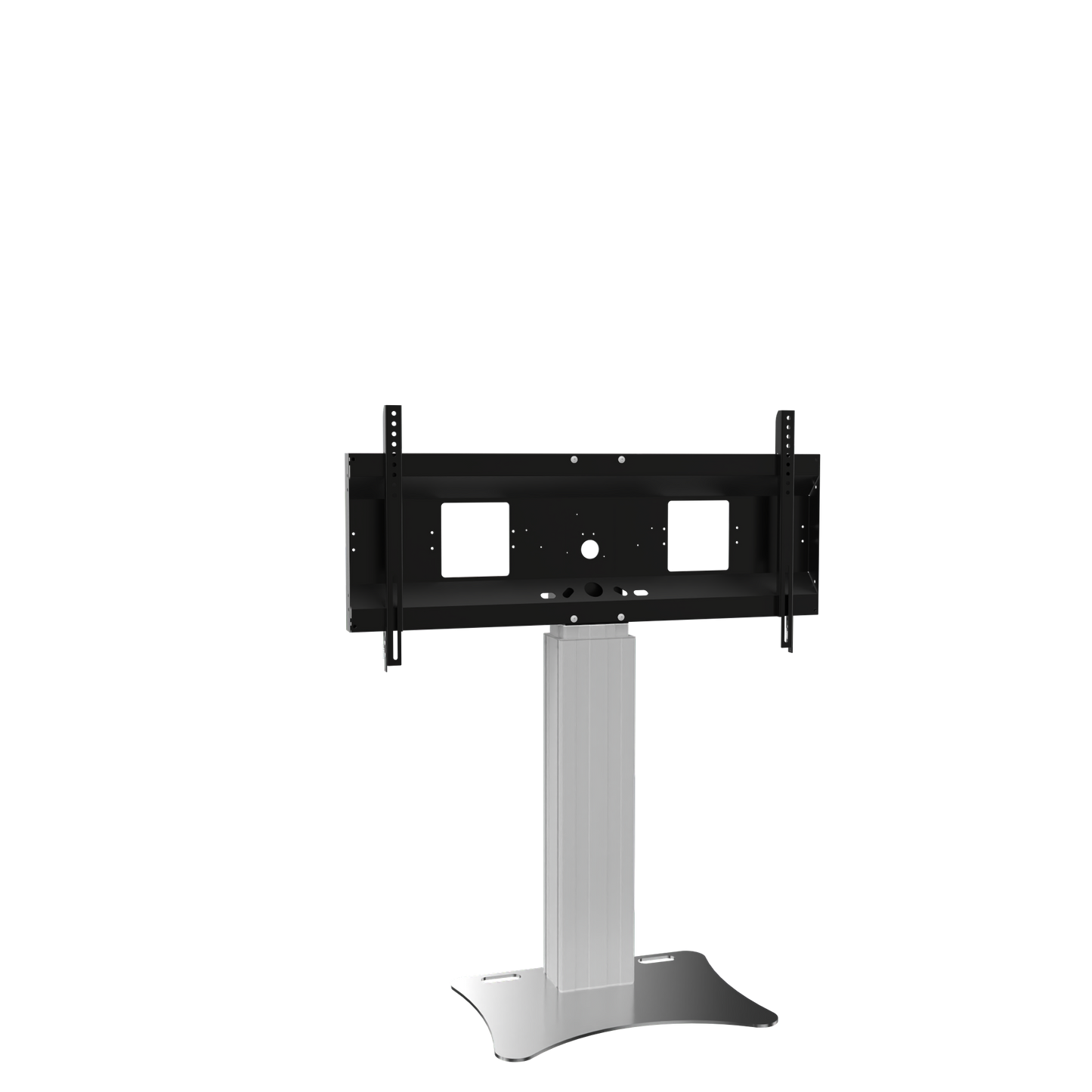

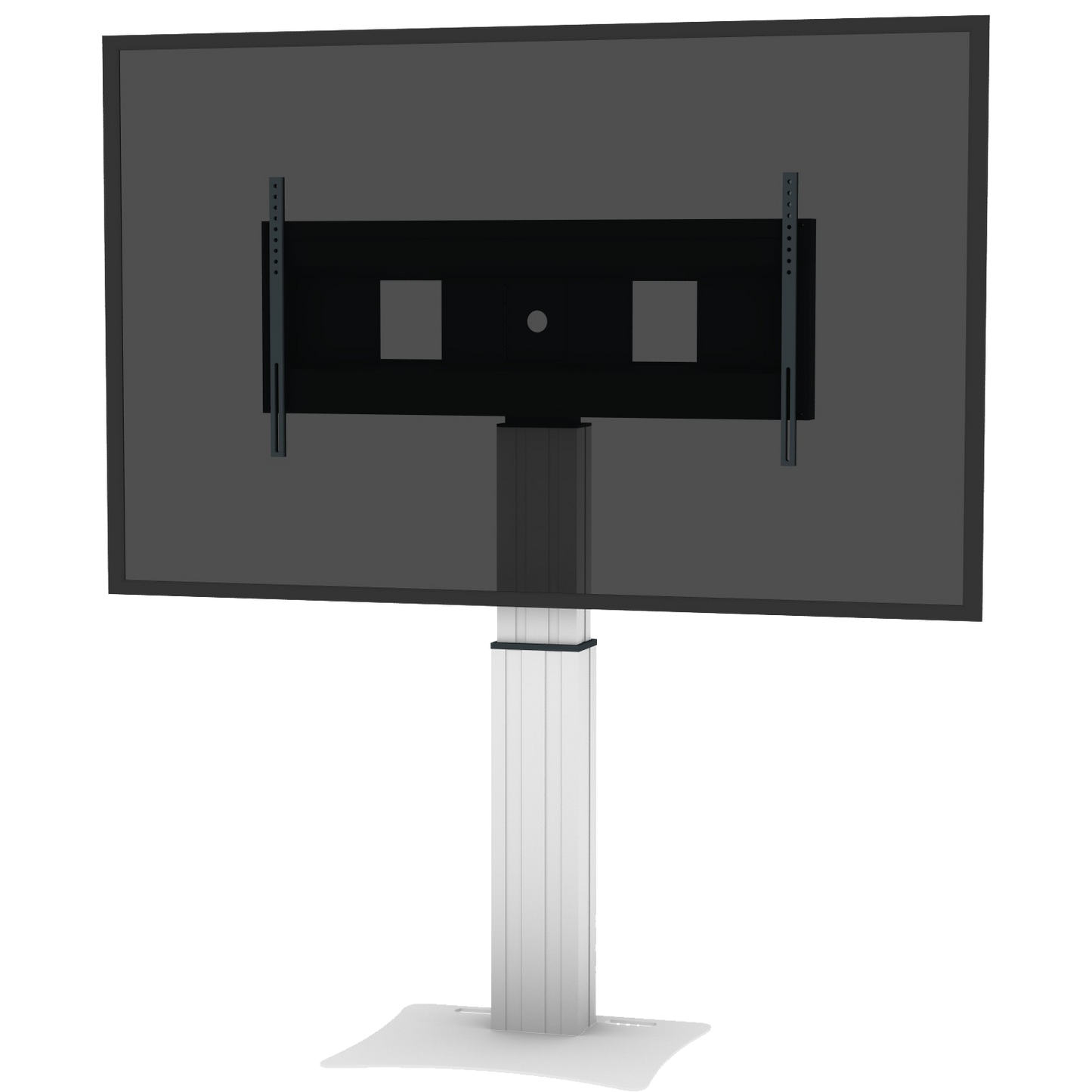

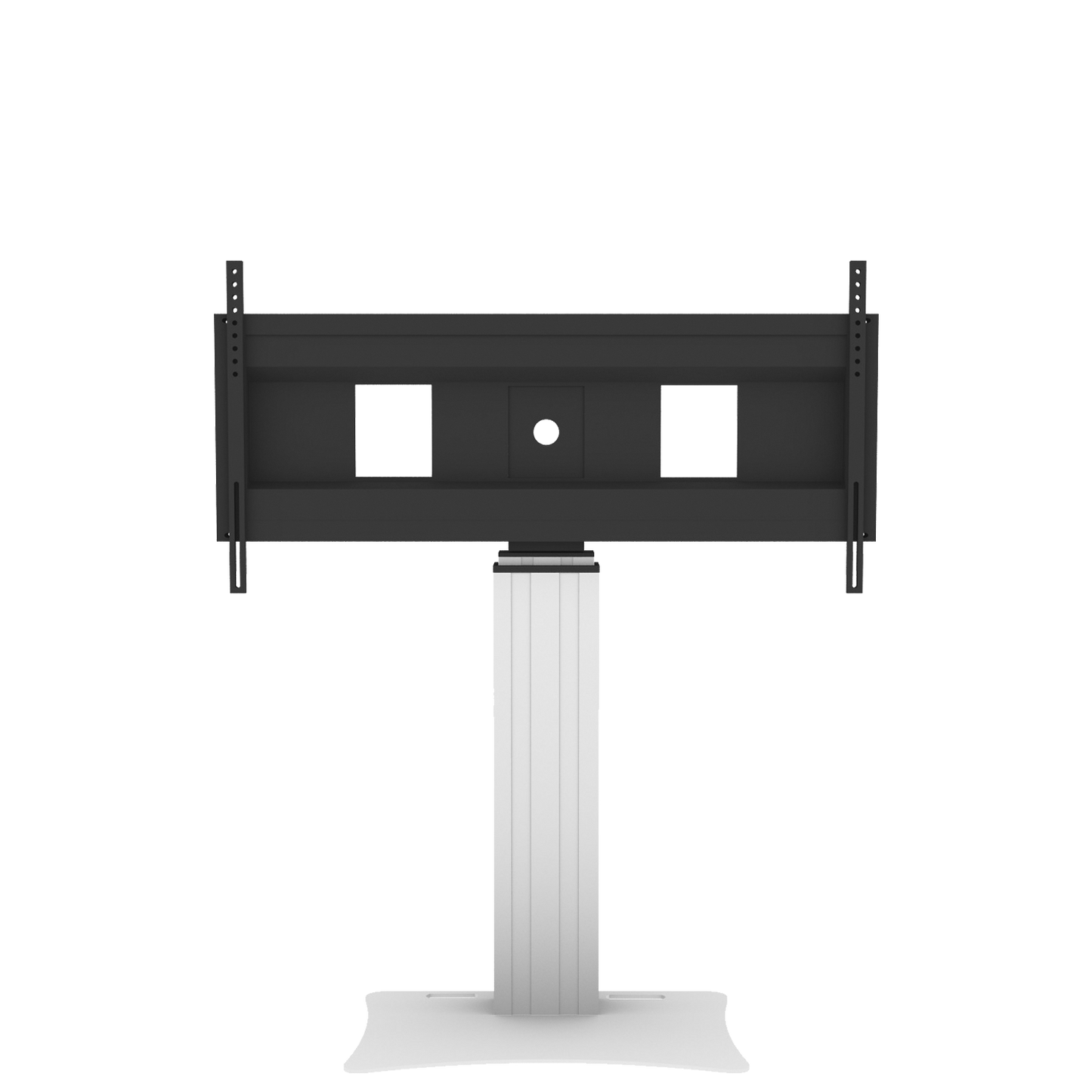

Motorized monitor stand with XL display mount. Designed specifically for use with interactive touch screen monitors, this motorized tv wall mount features an extra wide display mount. The system comes standard with the 2-tier column which offers 20” of height adjustment.
A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powdercoated in grey aluminum.
The unit comes flat-packed in 3 cartons and is courier-shippable.
Features
XL wide display mount with max. VESA 1200x600
Designed for use with IFPDs and LFDs
Easy mounting of display thanks to "pull & release" brackets
Display mount with integrated cable management
Actuator safely concealed in center column offering 50 cm of vertical travel
Wired remote is standard included

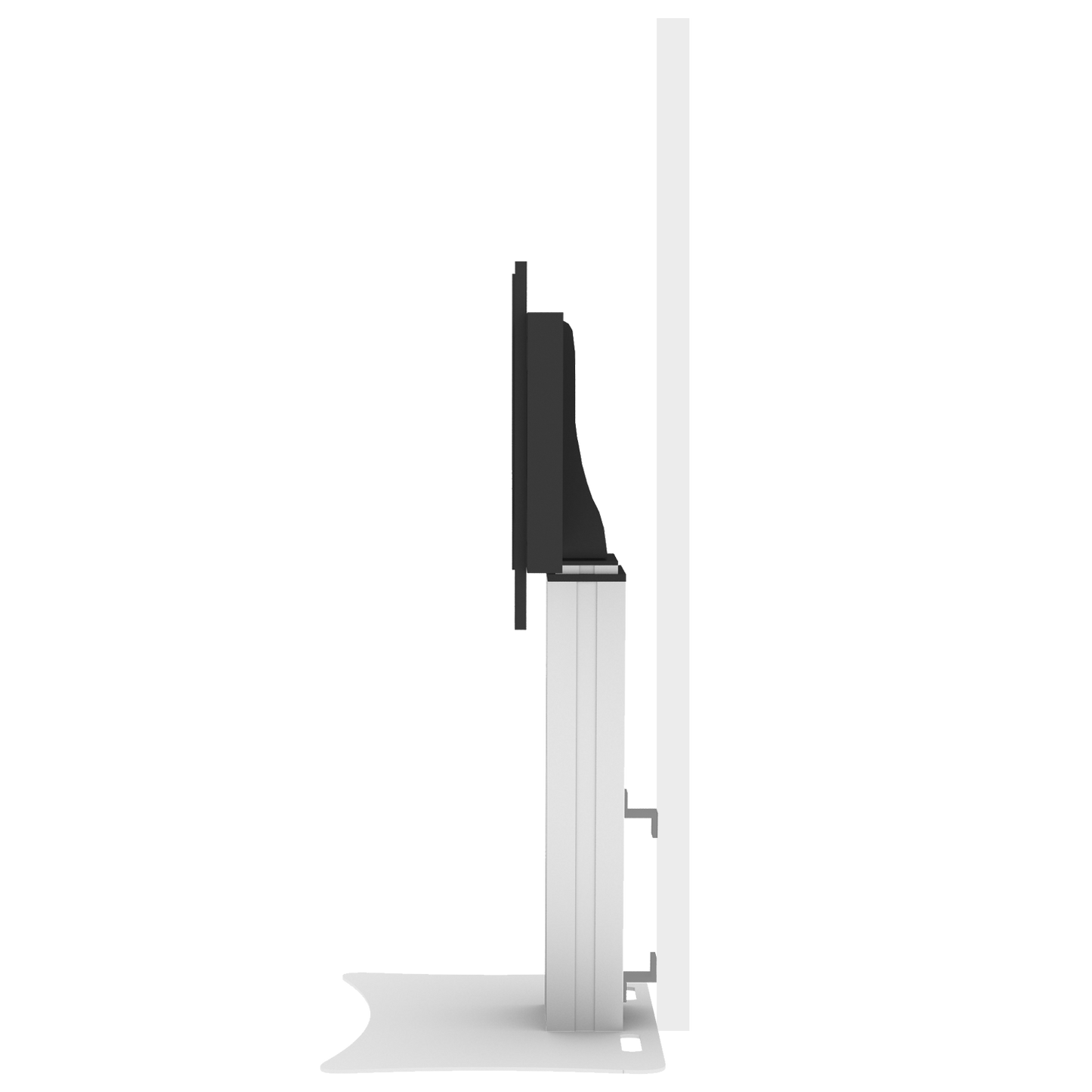

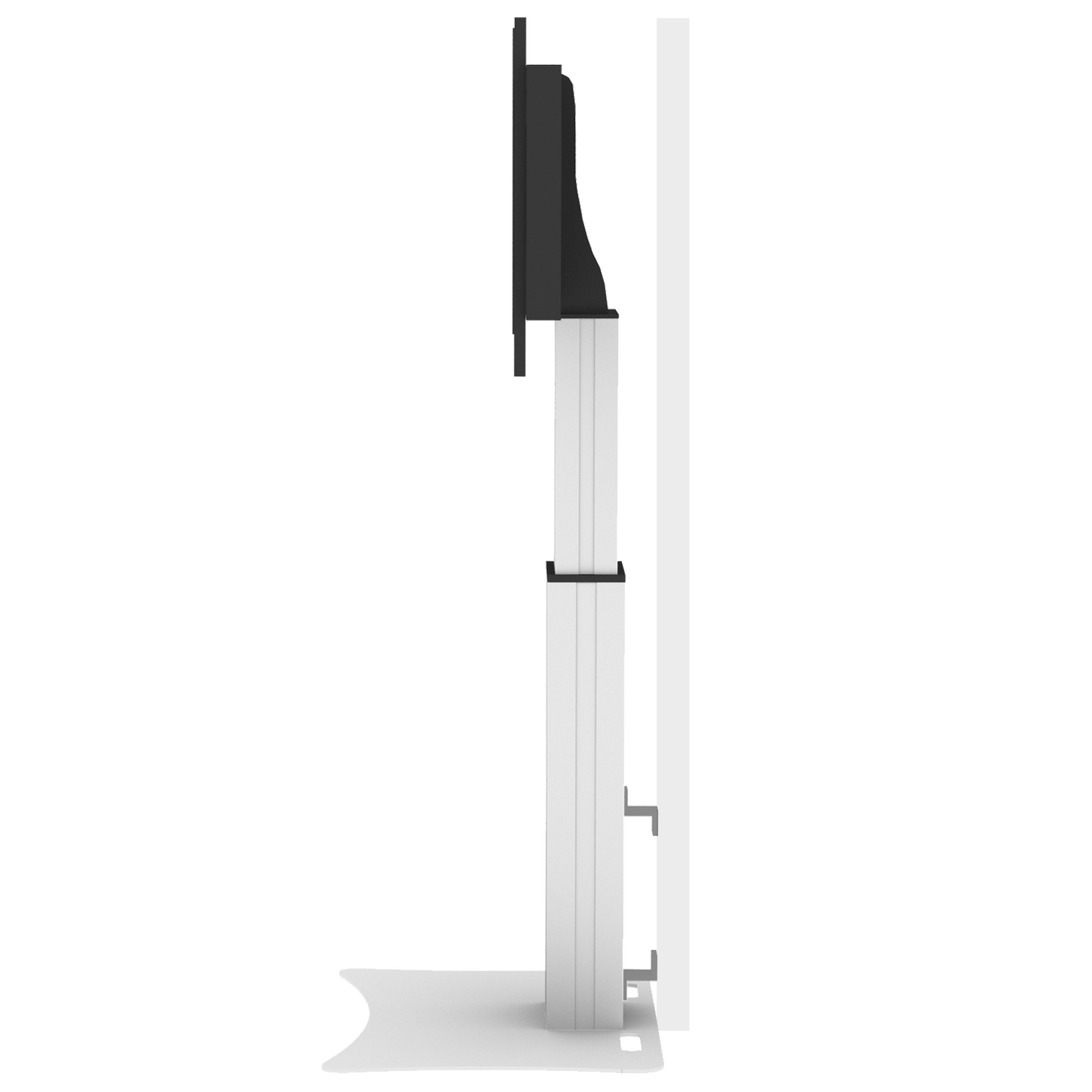

Optimum stability thanks to the floor plate and 2 wall mount brackets
Specifications
Item Number: SCEXLP
VESA Horizontal Compatibility: 400 mm to 1200 mm
VESA Vertical Compatibility: 200 mm to 600 mm
Vertical Travel: 50 cm (19.7 inches)
Center to Floor Distance: Adjustable from 1208 mm to 1708 mm (47.6 inches to 67.2 inches)
Load Capacity: 136 kg (299.8 lbs)
Width: 1290 mm (50.8 inches)
Height: Adjustable from 1528 mm to 2028 mm (60.2 inches to 79.8 inches)
Depth: 530 mm (20.9 inches)
Warranty: 5 years limited warranty
Frame Color: RAL 9005 deep black
Column Color: Silver anodized
Base Color: RAL 9006 white aluminum
Package Details:
AFSCETAN12:
Dimensions: 1300 x 450 x 160 mm (51.2 x 17.7 x 6.3 inches)
Weight: 17 kg (37.5 lbs)
CCE70-W:
Dimensions: 1180 x 270 x 200 mm (46.5 x 10.6 x 7.9 inches)
Weight: 23.1 kg (50.9 lbs)
PSTSCETA:
Dimensions: 750 x 20 x 600 mm (29.5 x 0.8 x 23.6 inches)
