Motorized display wall mount with extended 70 cm height adjustment.
The SCETAW3535B display & TV wall mount is designed for large format displays up to 100”. The solution includes a sturdy display mount offering integrated cable management and featuring two "pull & lock" brackets for quick and easy mounting of the display.

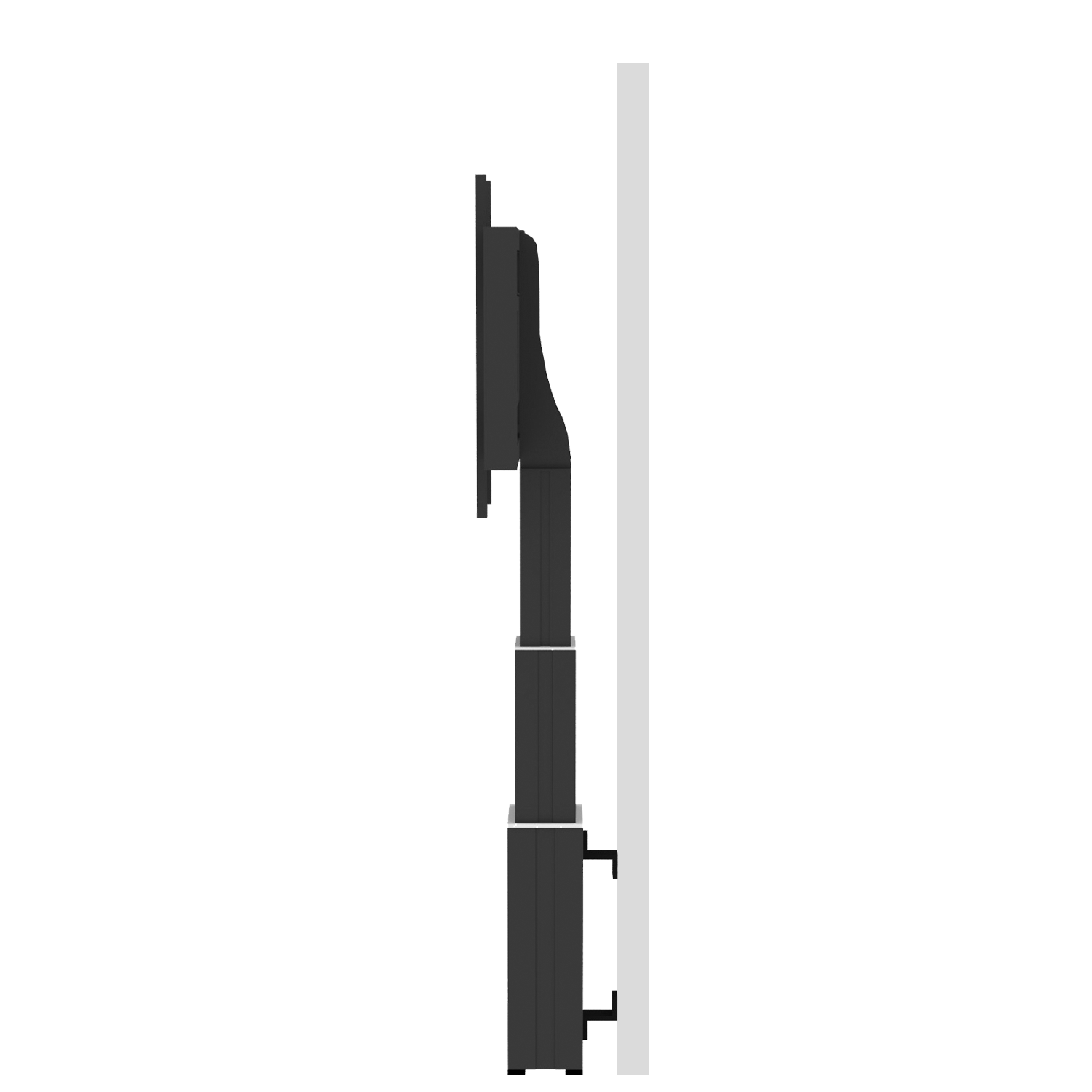

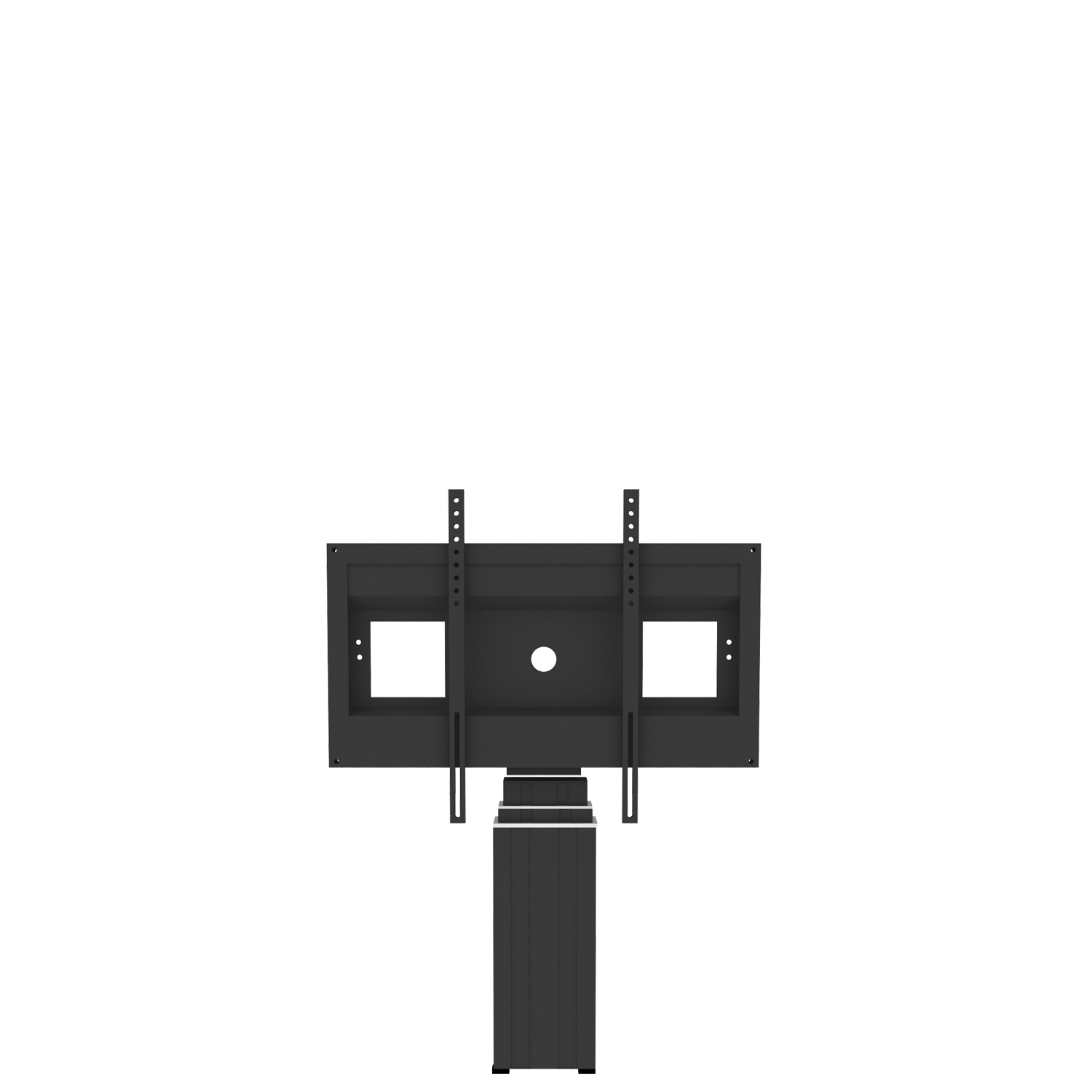

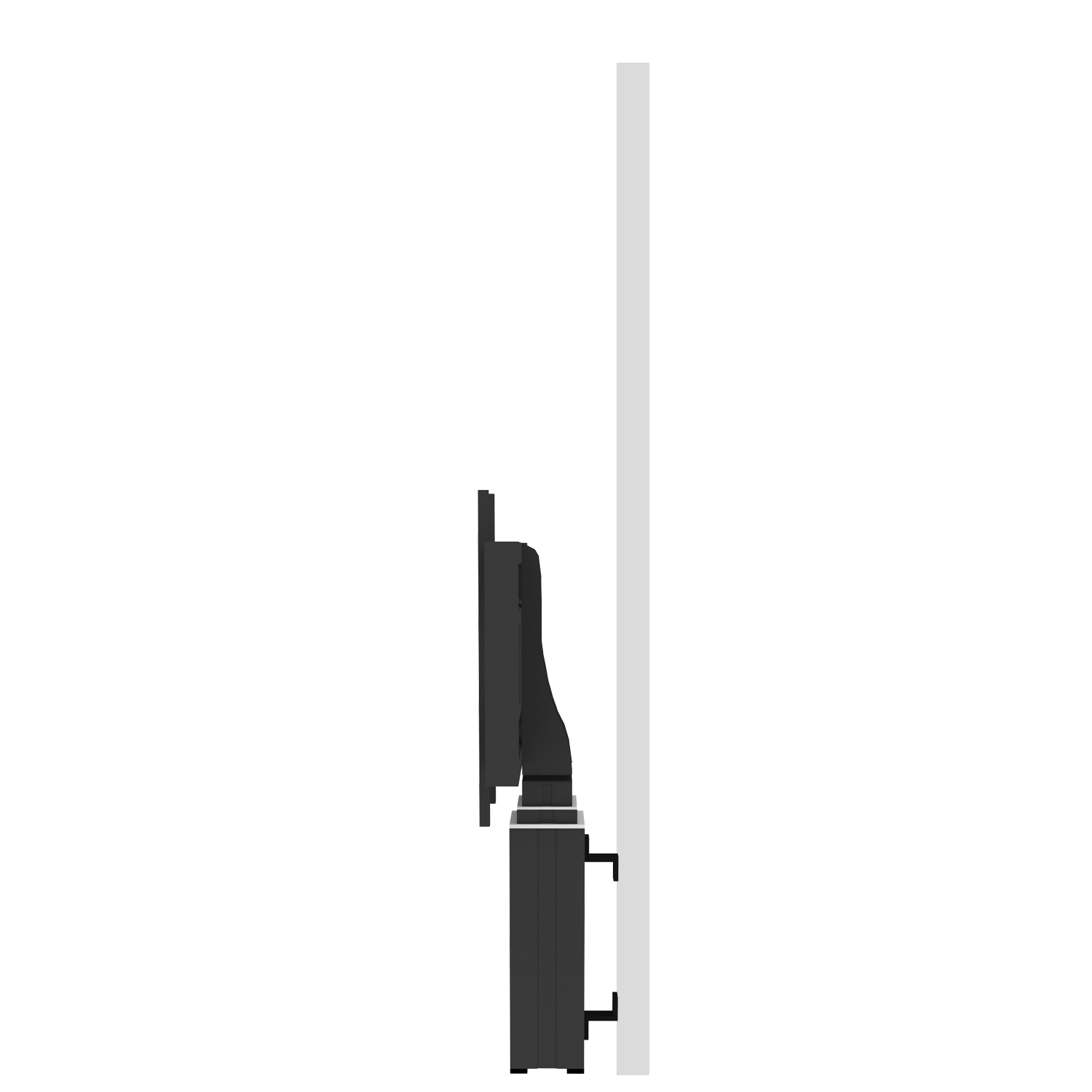

The SCETAW3535B features a 3-tier column with extended 70 cm of height adjustment. It provides minimum clearance for small children or people in wheelchairs to access the display and maximum clearance for the teacher to present.
The unit comes flat-packed in 2 cartons and is courier shippable.
Features
Heavy duty mount for displays up to 100"
"Pull & Release" brackets for easy mounting of display
VESA pattern, max. 800 x 600
Integrated cable management
70 cm of smooth motorized height adjustment
Optimum stability thanks to 4 leveling feet and 2 wall mount brackets
Specifications
Item Number: SCETAW3535B
VESA Horizontal Compatibility: 300 mm - 800 mm
VESA Vertical Compatibility: 200 mm - 600 mm
Frame Size Compatibility: For screens 55" - 100"
Vertical Travel: 70 cm

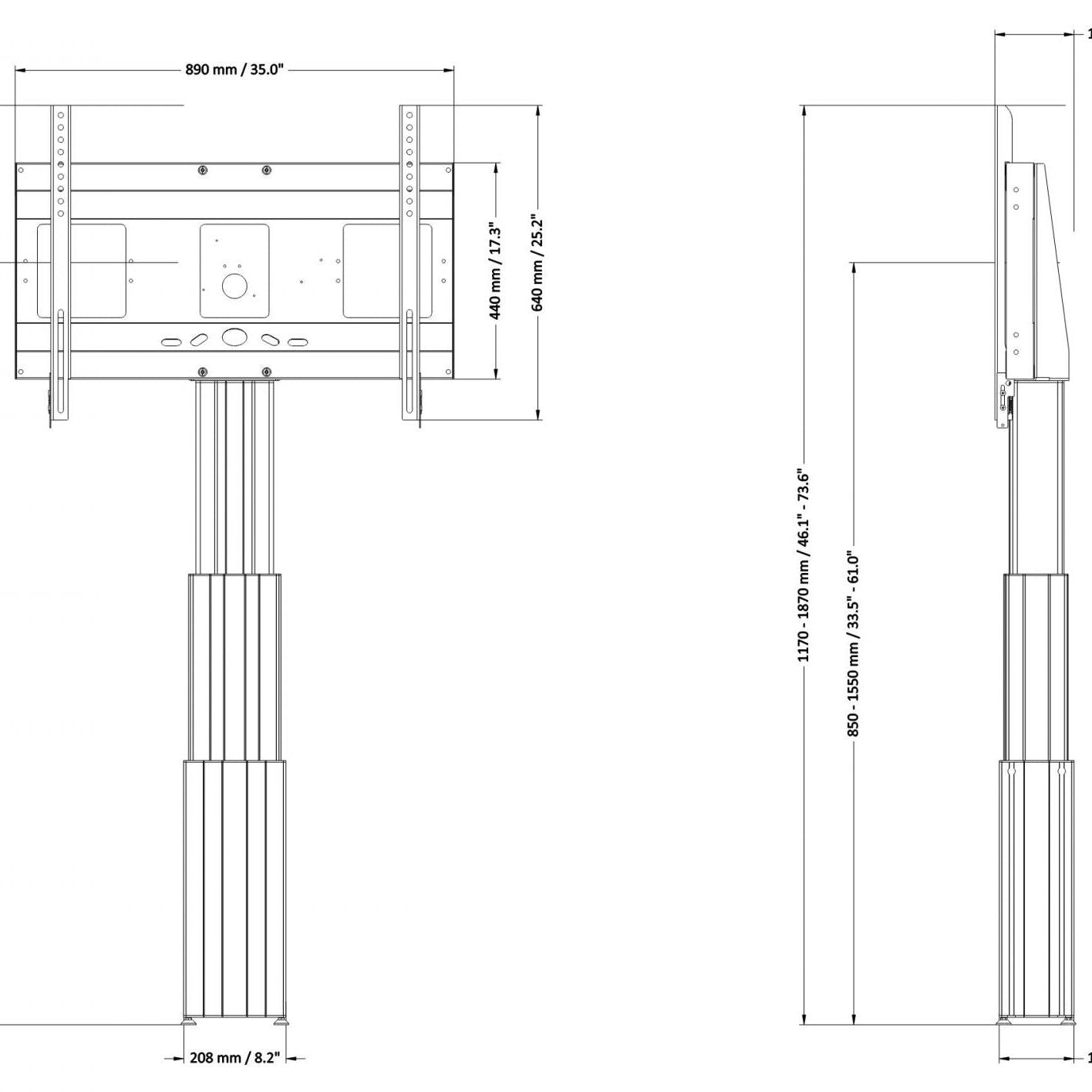

Center to Floor Distance: 815 mm - 1515 mm (32.1" - 59.6")
Load Capacity: 136 kg (299.8 lbs)
Width: 890 mm (35")
Height: 1170 mm - 1870 mm (46.1" - 73.6")
Depth: 161 mm (6.3")
Warranty: 5 years limited warranty
Frame Color: RAL 9005 deep black
Column Color: Black anodized
Packaging Details:
Package AF-SCETA-N:
Dimensions: 900 x 160 x 450 mm (35.4 x 6.3 x 17.7")
Weight: 14 kg (30.9 lbs)
Package CCE-3535WB:
Dimensions: 760 x 270 x 220 mm (29.9 x 10.6 x 8.7")
