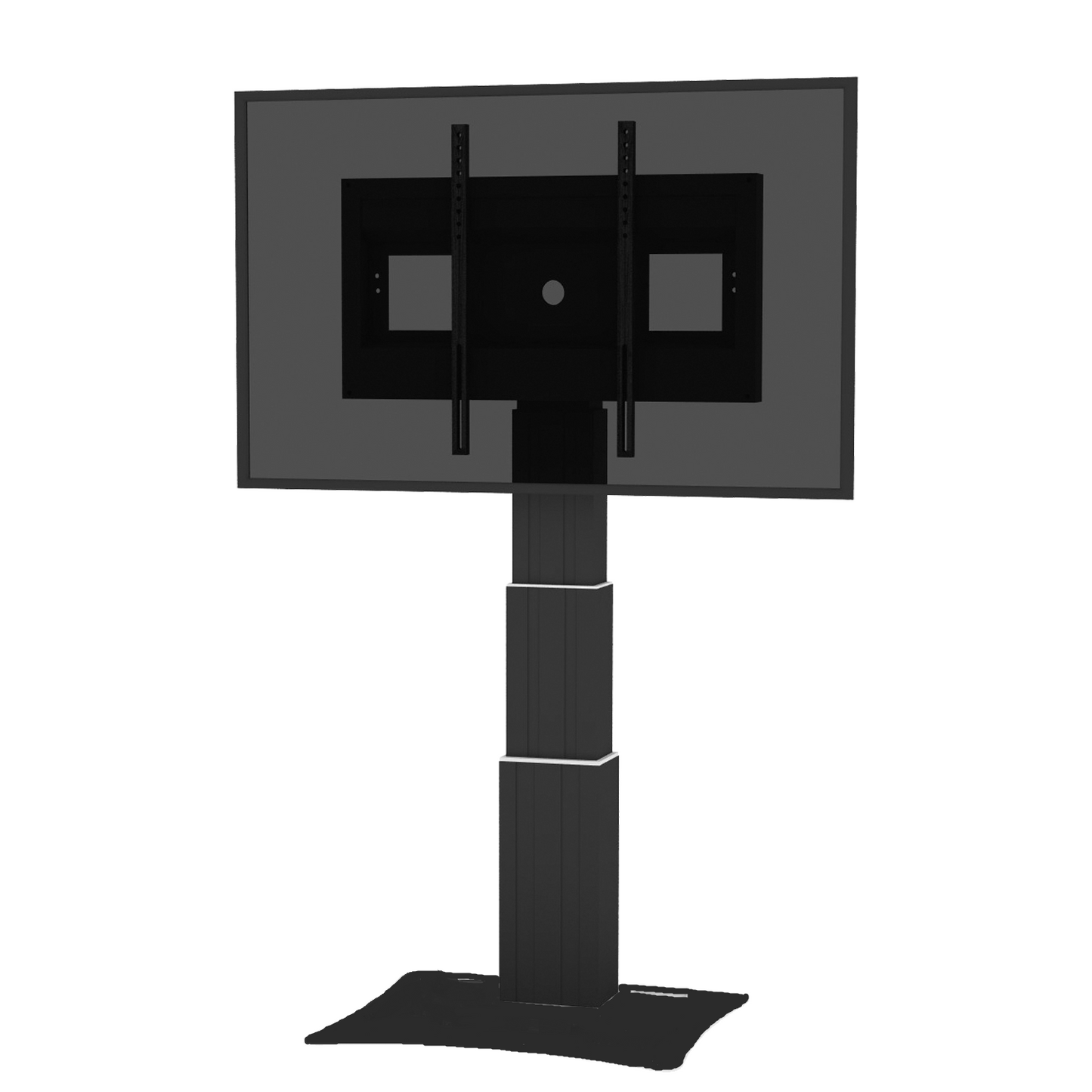

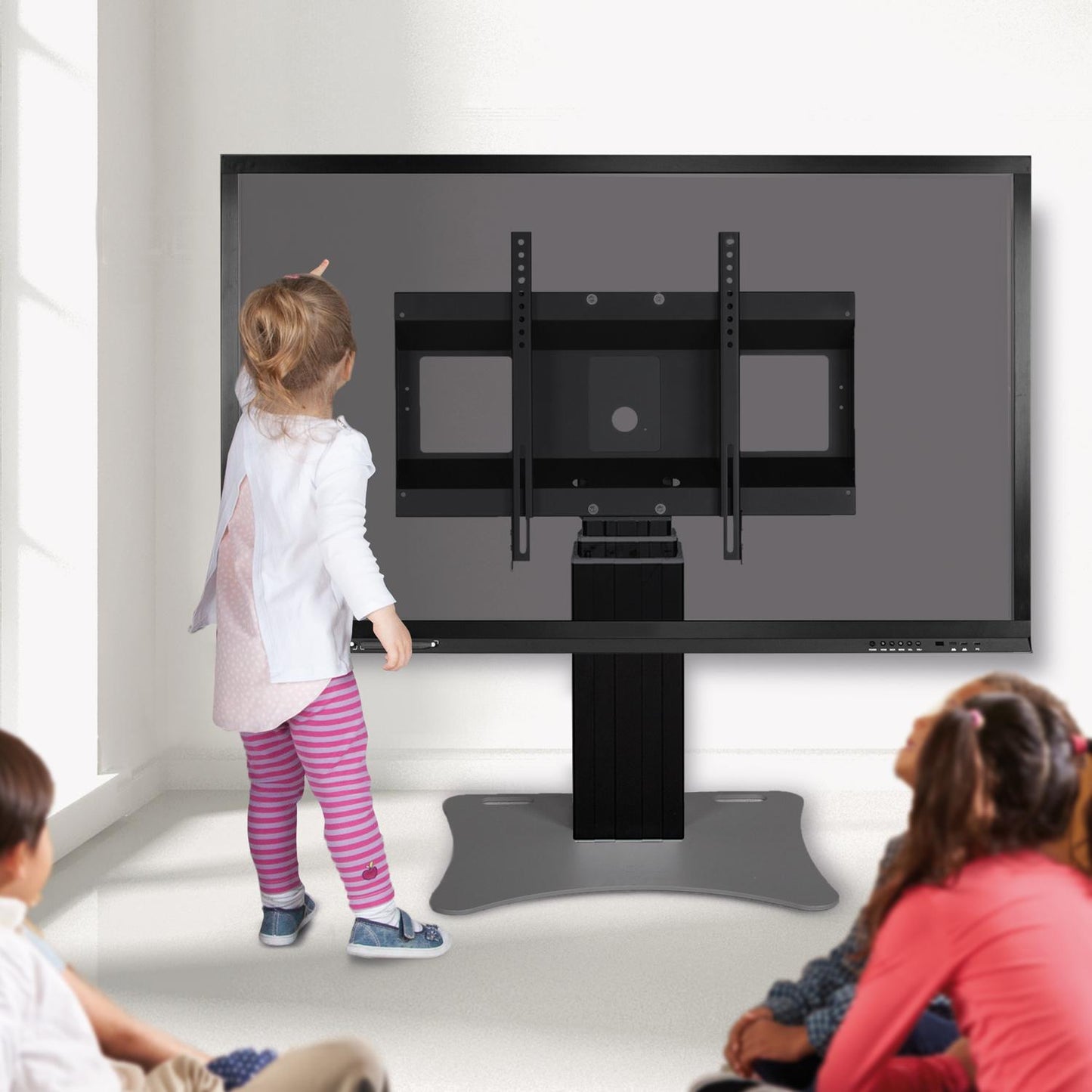

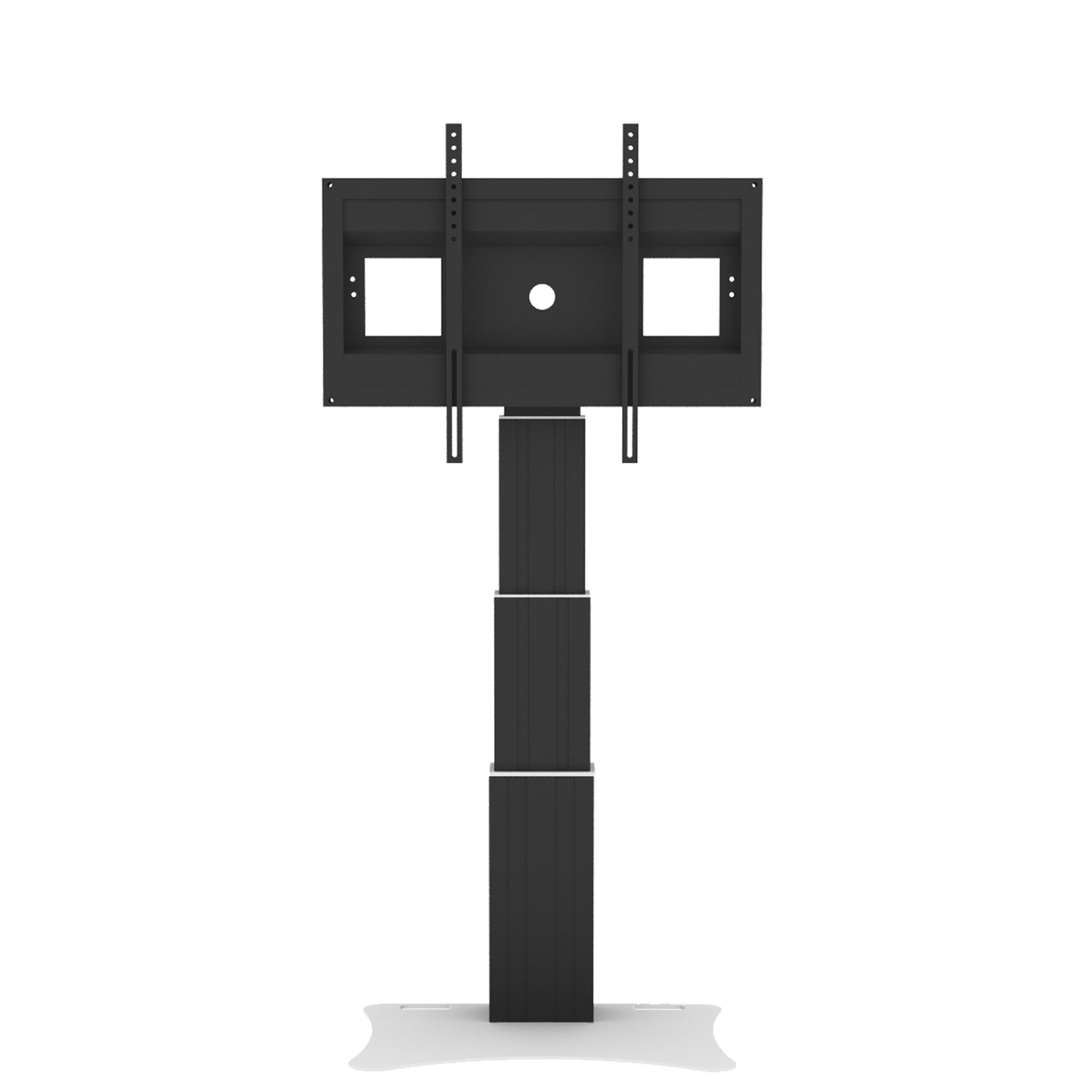

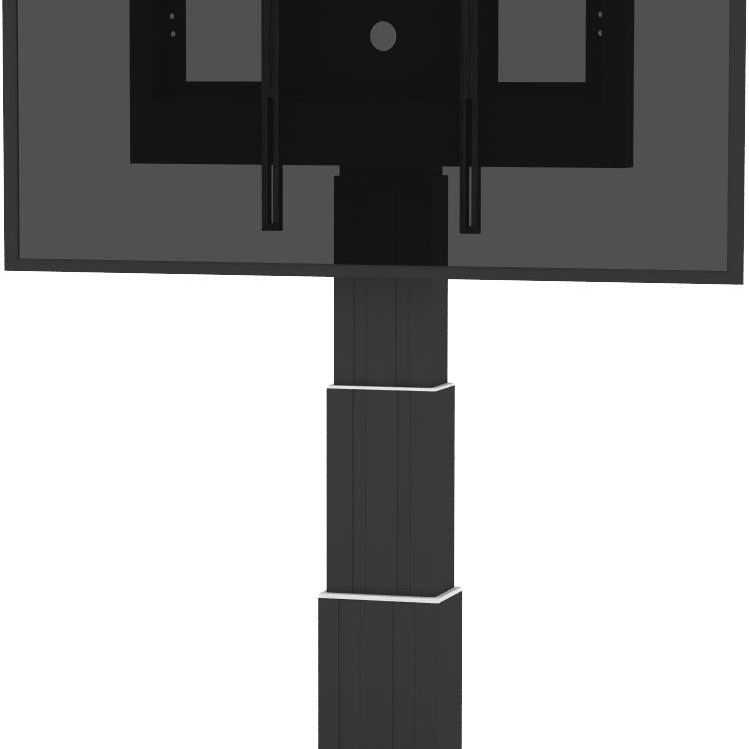

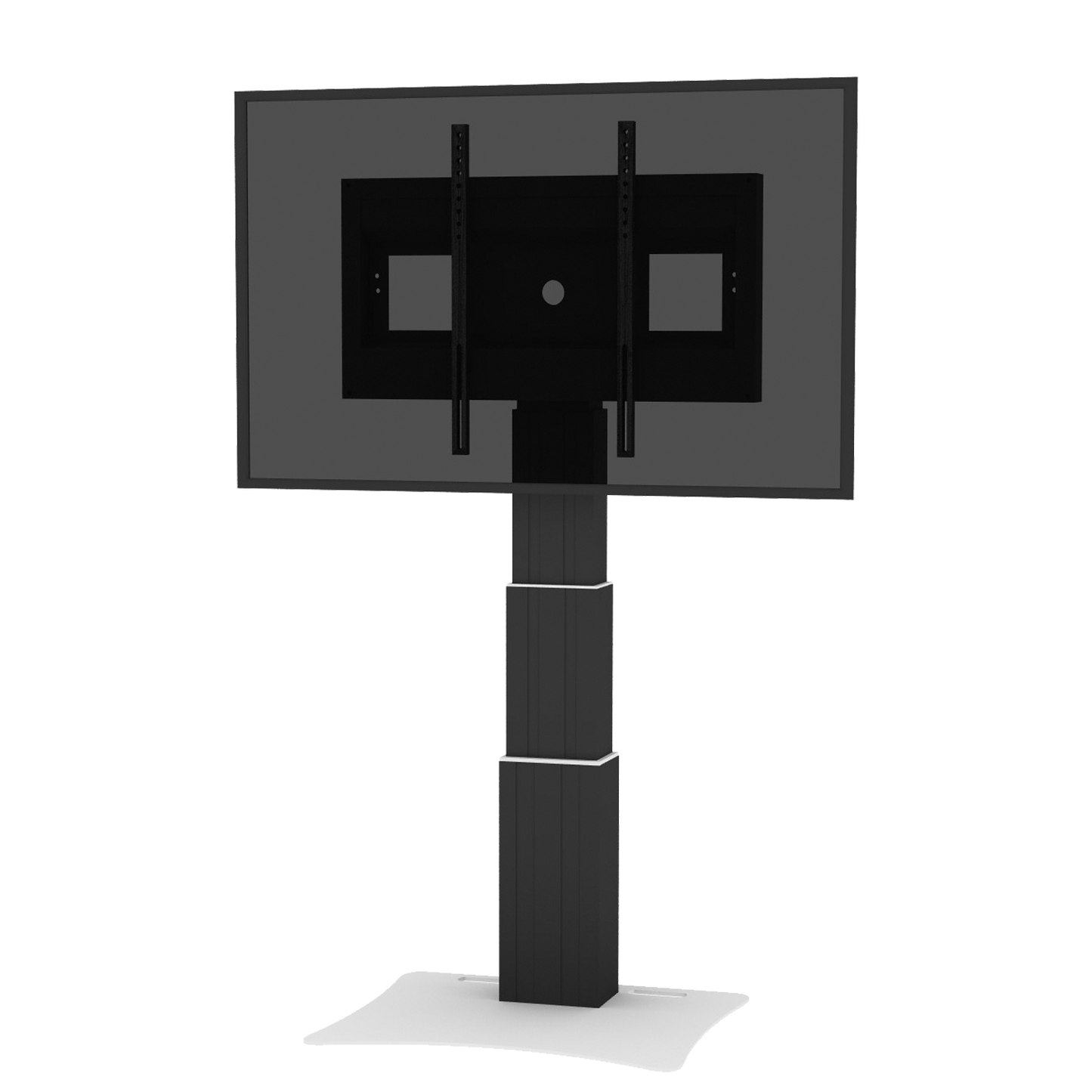

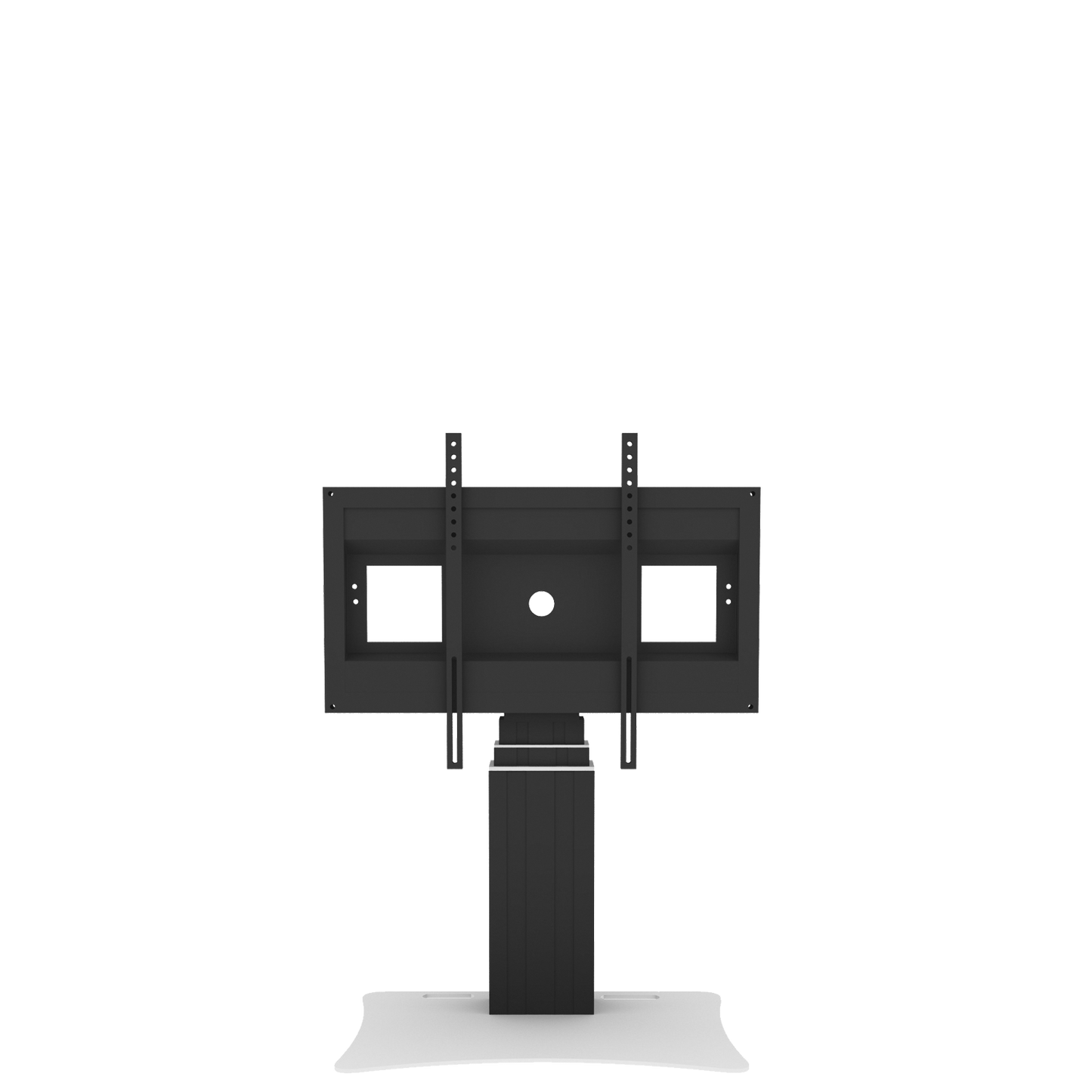

Motorized display stand with extended 70 cm height adjustment. Can be mounted to a wall. The SCETAP3535B stand is designed for large format displays up to 100”. The solution includes a sturdy display mount offering integrated cable management and featuring two "pull & lock" brackets for quick and easy mounting of the display. The SCETAP3535B display stand features a 3-tier column with extended 70 cm of height adjustment. It provides minimum clearance for small children or people in wheelchairs to access the display and maximum clearance for the teacher to present. A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powdercoated in grey aluminum. The unit comes flat-packed in 3 cartons and is courier shippable.
Features
Heavy duty mount for displays up to 100"
"Pull & release" brackets for easy mounting of display
VESA pattern, max. 800 x 600
Integrated cable management
70 cm of smooth motorized height adjustment

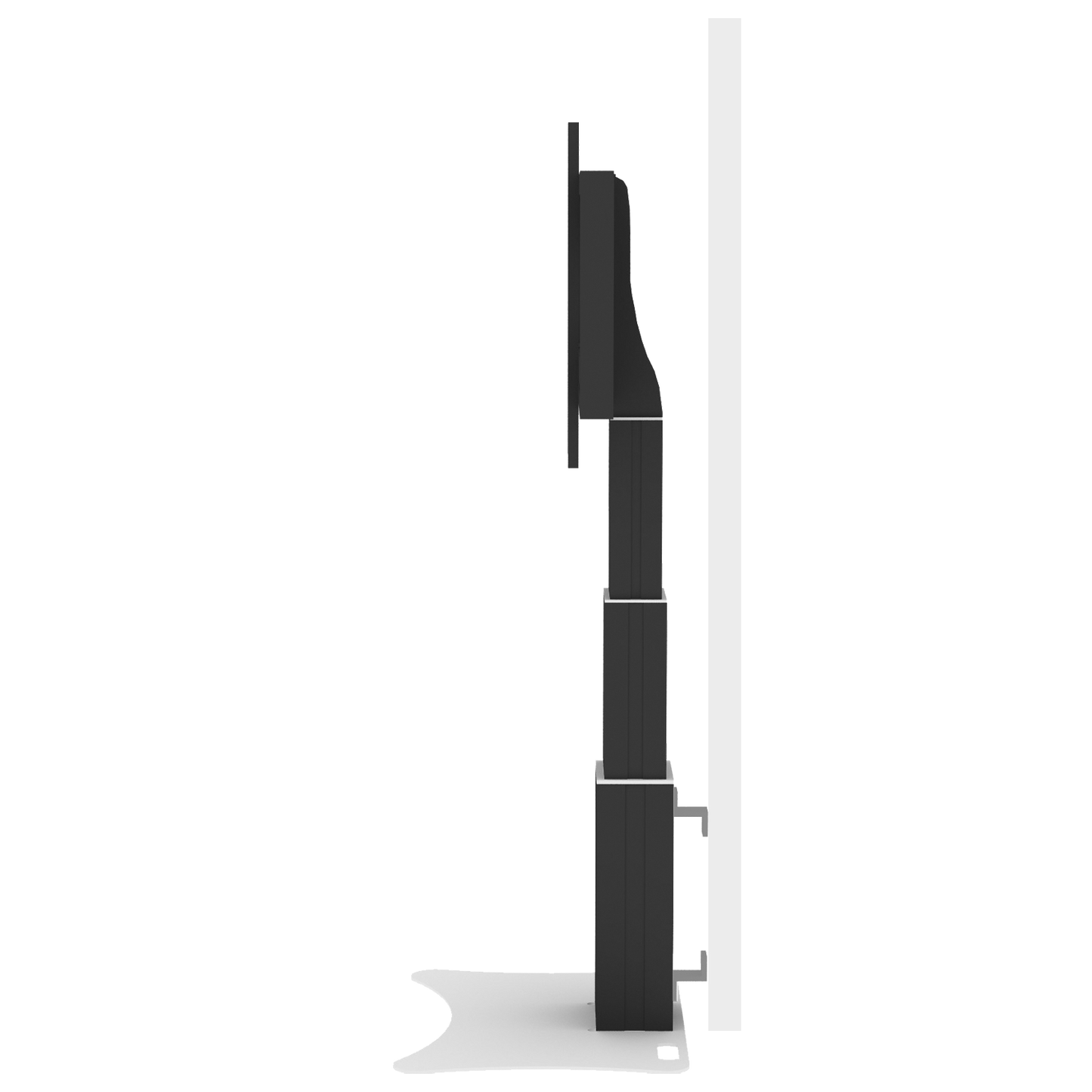

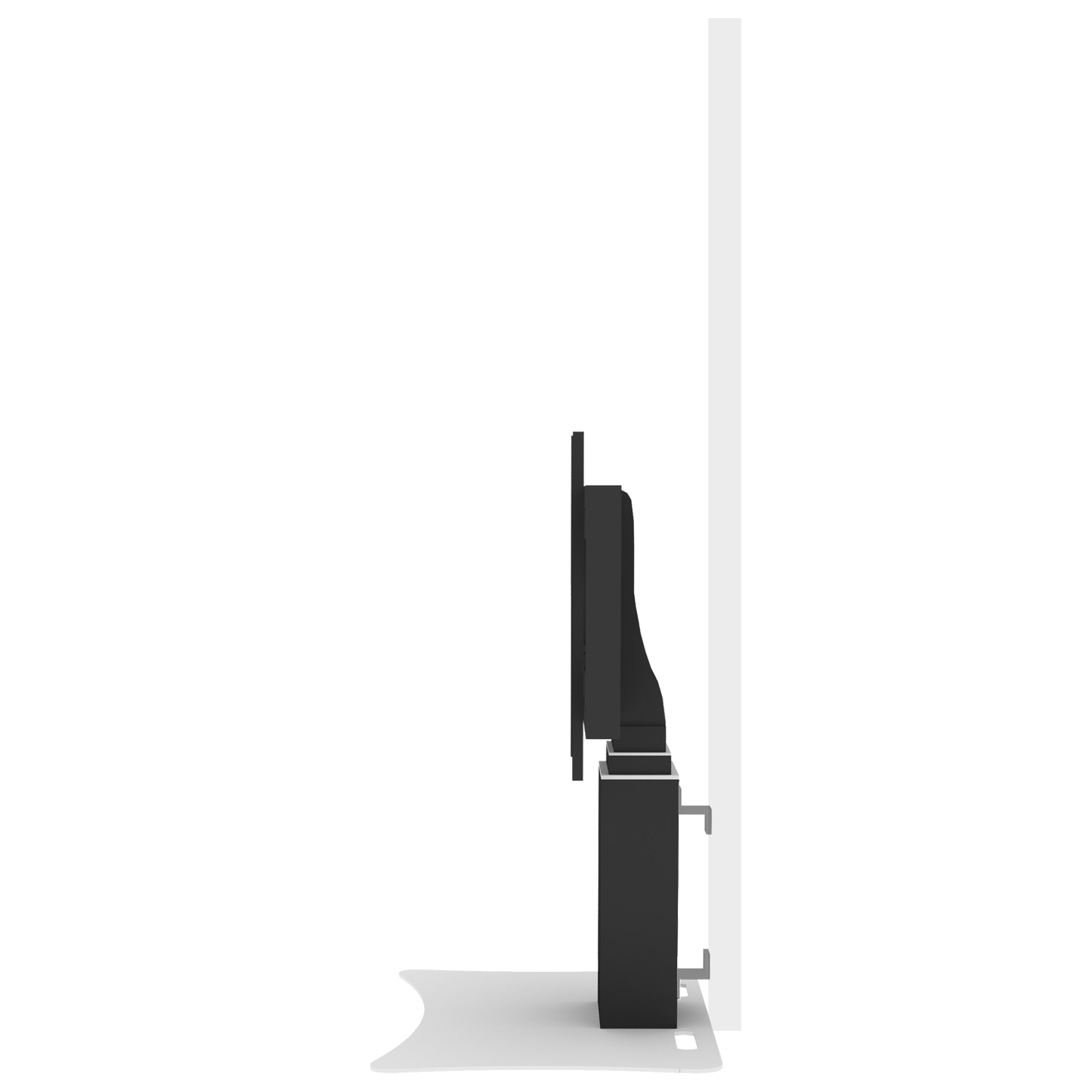

Optimum stability thanks to the floor plate and 2 wall mount brackets
Spicifications:
Item Number: SCETAP3535B
VESA Horizontal Compatibility: 300 mm - 800 mm
VESA Vertical Compatibility: 200 mm - 600 mm
Frame Size Compatibility: For screens 55" - 100"
Vertical Travel: 70 cm

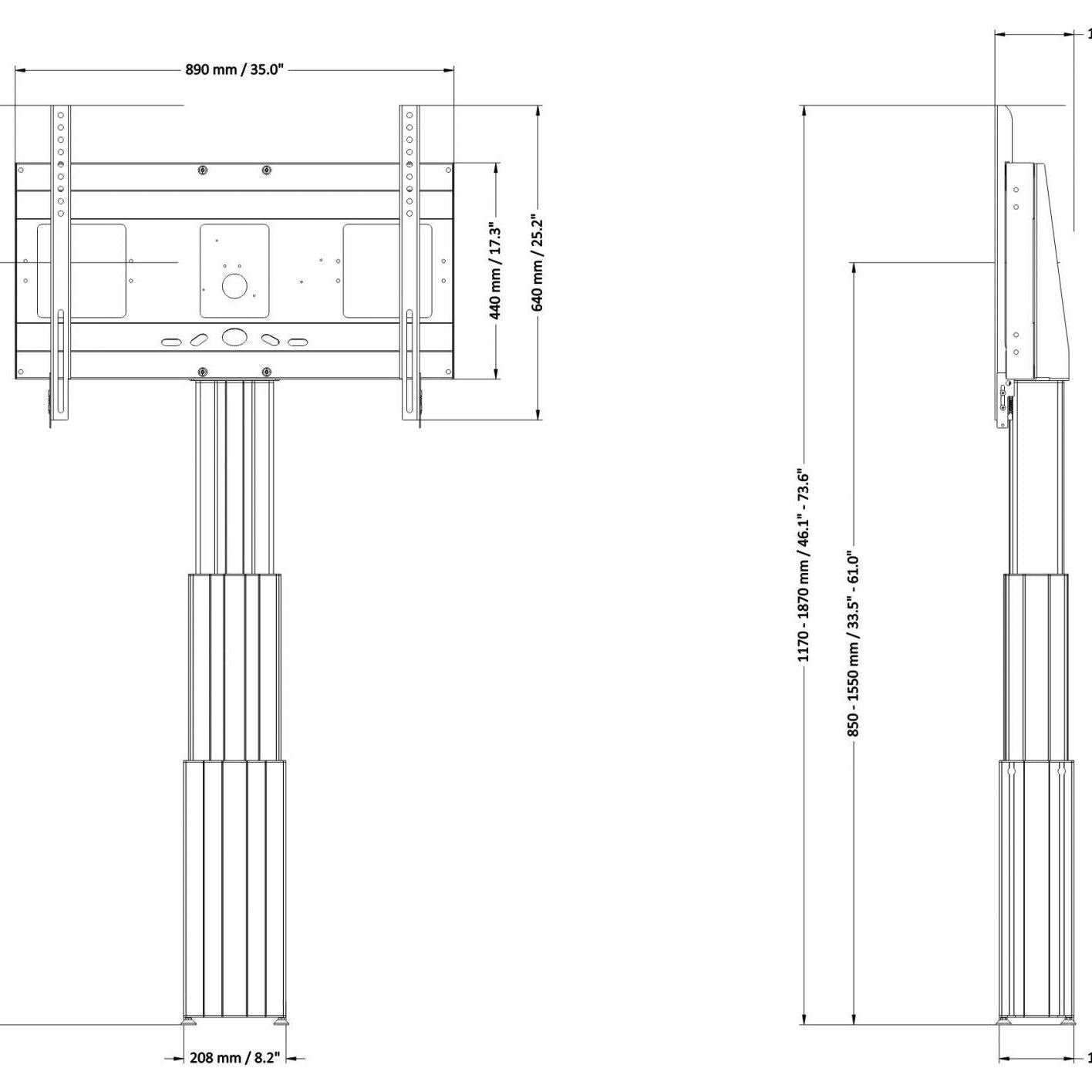

Center to Floor Distance: 815 mm - 1515 mm (32.1" - 59.6")
Load Capacity: 136 kg (299.8 lbs)
Weight: 7.5 kg (16.5 lbs)
Warranty: 5 years limited warranty
Frame Color: RAL 9005 deep black
Column Color: Black anodized
Base Color: RAL 9006 white aluminum
Packaging Details:
Package AF-SCETA-N:
Dimensions: 900 x 160 x 450 mm (35.4 x 6.3 x 17.7")
Weight: 14 kg (30.9 lbs)
Package CCE-3535WB:
Dimensions: 760 x 270 x 220 mm (29.9 x 10.6 x 8.7")
Weight: 24 kg (52.9 lbs)
Package PSTSCETAB:
Dimensions: 750 x 20 x 600 mm (29.5 x 0.8 x 23.6")
