Conen RLI10070WK Height Adjustable Monitor Wall Mount, Lite Series Silver, With Anti-collision, Center To Floor 750 - 1450 Mm

Motorized adjustable wall mount for 55”-86” (interactive) touch screen. The single-column, floor-to-wall design, guarantees maximum stability & safety.

The mount comes standard with a wired remote control, allowing the user to raise and lower the screen with a simple touch of the button.
The high-speed actuator has an unsurpassed speed of 1.85”/47mm per second.

Conen cares about classroom safety. The motorized mount features an anti-collision sensor that detects objects that are in the way during operation. If an obstruction is detected, the system stops and reverses the operational direction.

The RLI10070WK monitor mount also offers an extended 700mm/27.6” of smooth motorized height adjustment giving everyone, even those in early grades or in a wheelchair, to participate.

The integrated display mount allows for displays with maximum weight of 136kg/300 lbs. and a max. VESA 800x600 pattern.
Two “pull & release” locking brackets ensure quick and easy mounting of the monitor.

The unit comes disassembled and ships in two, courier-shippable, cartons.

Features

• 70cm / 27.6” height adjustment
• Anti-collision feature
• Motor speed 1.85” / 47mm per second
• For displays up to 86”
• Max. display weight: 136kg / 300 lbs.
• VESA pattern max. 800x600. Bracket included
• 4 Levelling feet + 2 wall mounting brackets for maximum stability

Specifications

• Item Number: RLI10070WK
• VESA Compatibility:
  • Horizontal: 300 mm - 800 mm
  • Vertical: 200 mm - 600 mm
• Maximum Frame Size: 86" screen
• Vertical Travel: 70 cm
• Center to Floor Distance: 750 mm - 1450 mm (29.5" - 57.1")
• Load Capacity: 136 kg (299.8 lbs)

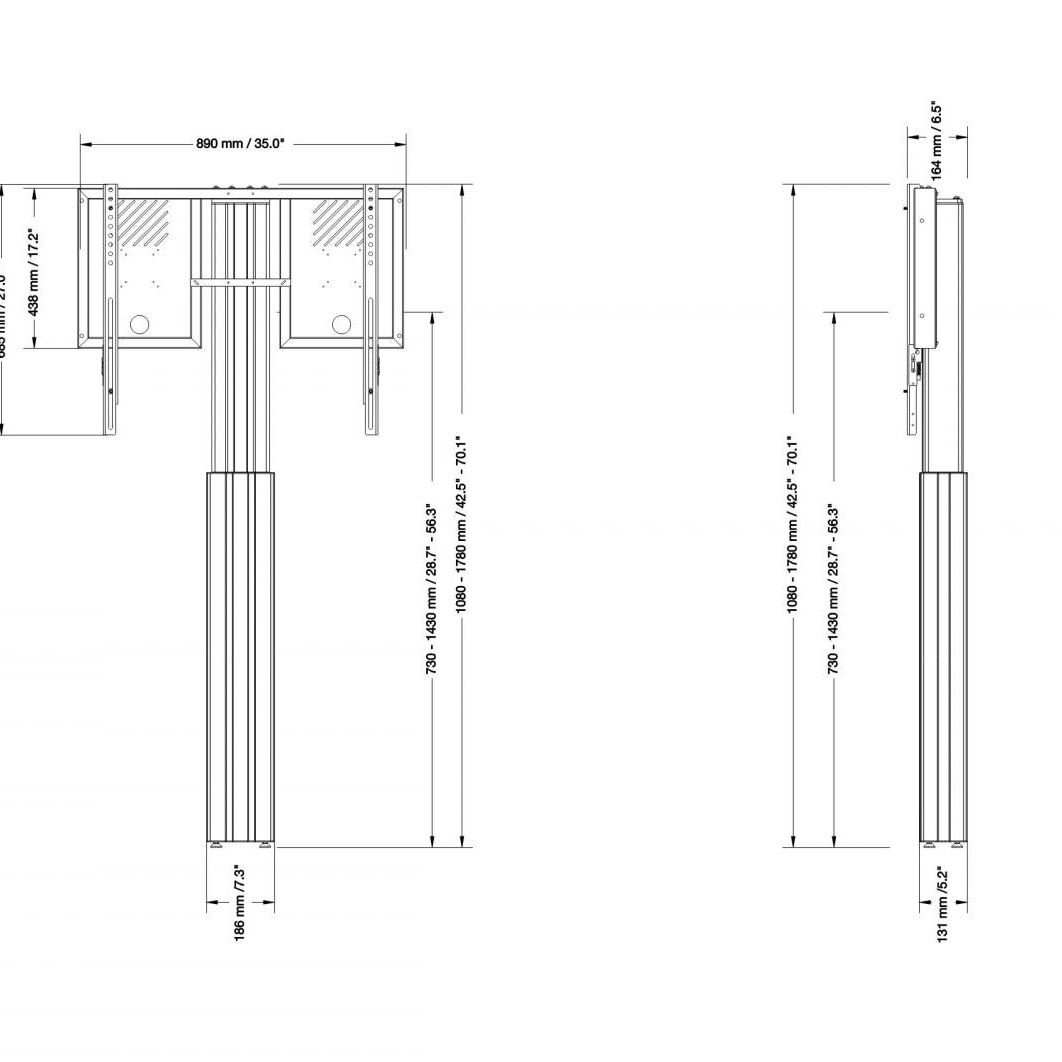

• Dimensions:
  • Width: 890 mm (35")
  • Height: 1080 mm - 1780 mm (42.5" - 70.1")
  • Depth: 164 mm (6.5")
• Warranty: 5 years limited warranty
• Frame Color: RAL 9005 deep black
• Column Color: Silver anodized
• Package Details:
  • AFSCETARLI:
    • Dimensions: 895 x 65 x 485 mm (35.2 x 2.6 x 19.1")
    • Weight: 14 kg (30.9 lbs)
  • CCEL10070WK:
    • Dimensions: 1190 x 195 x 245 mm (46.9 x 7.7 x 9.6")
    • Weight: 23.3 kg (51.4 lbs)
• Total Weight: 37.3 kg (82.3 lbs)
