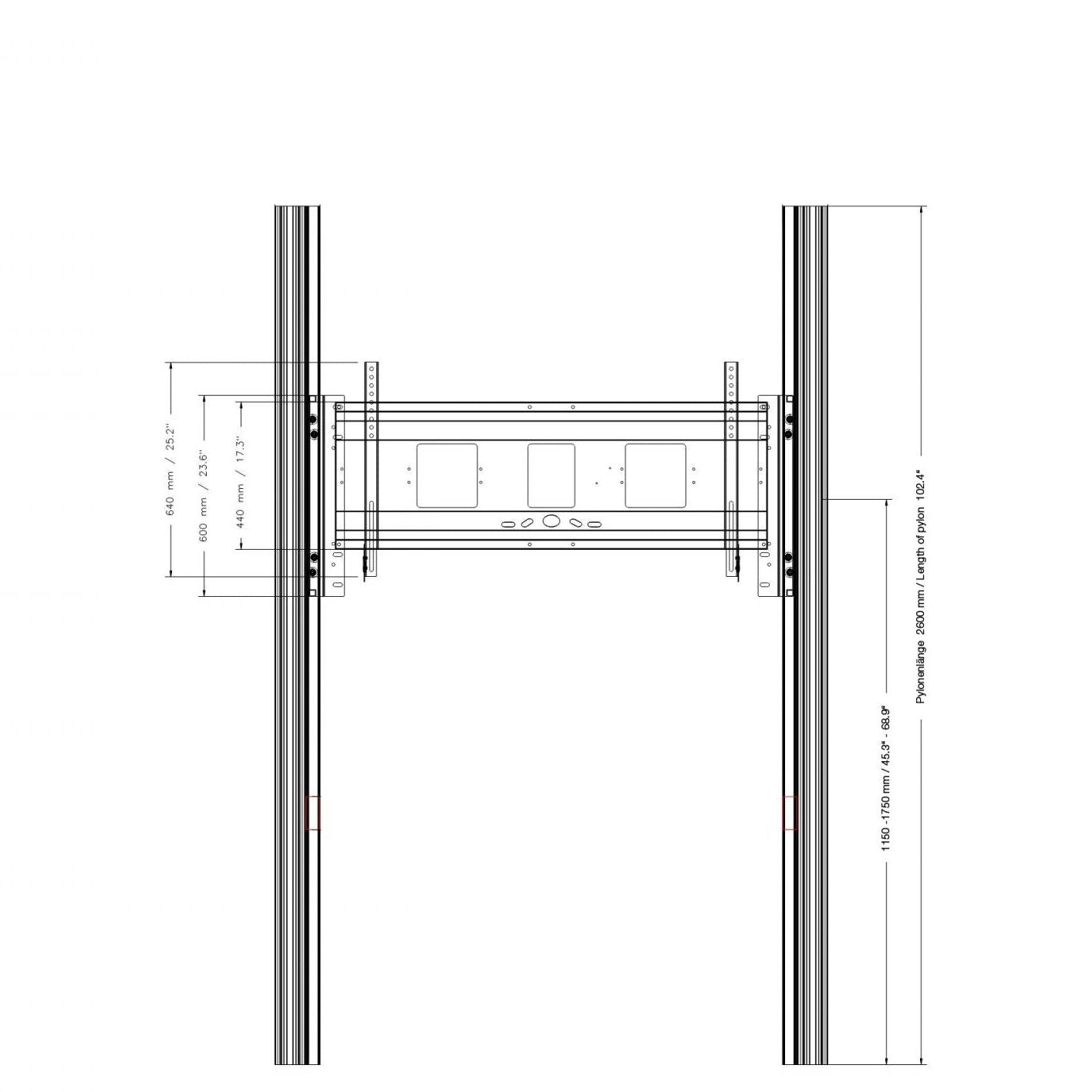

This electrically height-adjustable pylon-sytem is compatible with all touch screen displays available on the market from 65" to 86" screens. The adjustable pylon-system consists of two aluminum profiles mounted on the wall and floor, in which the motor is concealed.
By using the two button remote attached to the system, you can adjust the display to the desired working height . This ensures that every user can work and present at their ergonomically best height.
Advantage of the electrical height adjustment: It increases the lifespan of the display, because controlled movement protects the technology.
Features
Electrically height adjustable system with 2 pylons for floor and wall mounting
Pylon length 2600 mm
70 cm of motorized height adjustment
All connections on the display are freely accessible
Optionally with whitboard side wings
Specifications
VESA Compatibility:
Horizontal: 200 mm - 800 mm
Vertical: 200 mm - 600 mm
Compatible Screen Size: 65" - 86"
Vertical Travel: 70 cm
Load Capacity: 120 kg (264.6 lbs)
Dimensions:
Width: 1650 mm (65")
Height: 2600 mm (102.4")
Depth: 134 mm (5.3")
Frame Color: RAL 9005 Deep Black
Column Color: Silver Anodized
Packaging Details:
Package Dimensions: 460 x 1300 x 70 mm (18.1 x 51.2 x 2.8")
