Conen CCELW-AFPB Height Adjustable Monitor And Tv Wall Mount, Lite Series With 50 Cm Of Vertical Travel Column Black
Conen CCELW-AFPB Height Adjustable Monitor And Tv Wall Mount, Lite Series With 50 Cm Of Vertical Travel Column Black
Out of stock
SKU:
Couldn't load pickup availability
Height adjustable TV & monitor wall mount for 55"-86" (interactive) touch screen monitors.
The CCELW-AFPB is designed for touch screen monitors up to 86”. The units feature a monitor mount with "pull & release" locking brackets for quick and easy mounting of the monitor.
The CCELW-AFPB comes with a column that offers 50 cm of vertical travel.
A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation.
Product ships flat-packed. Cartons are courier shippable.
Features
- Mount for touch screen monitors up to 86"
- "Pull & release" brackets for easy mounting of the monitor
- VESA pattern, max. 800 x 600
- Integrated cable management
- 50 cm of smooth motorized height adjustment
- Optimum stability thanks to the floor plate and 2 wall mount brackets

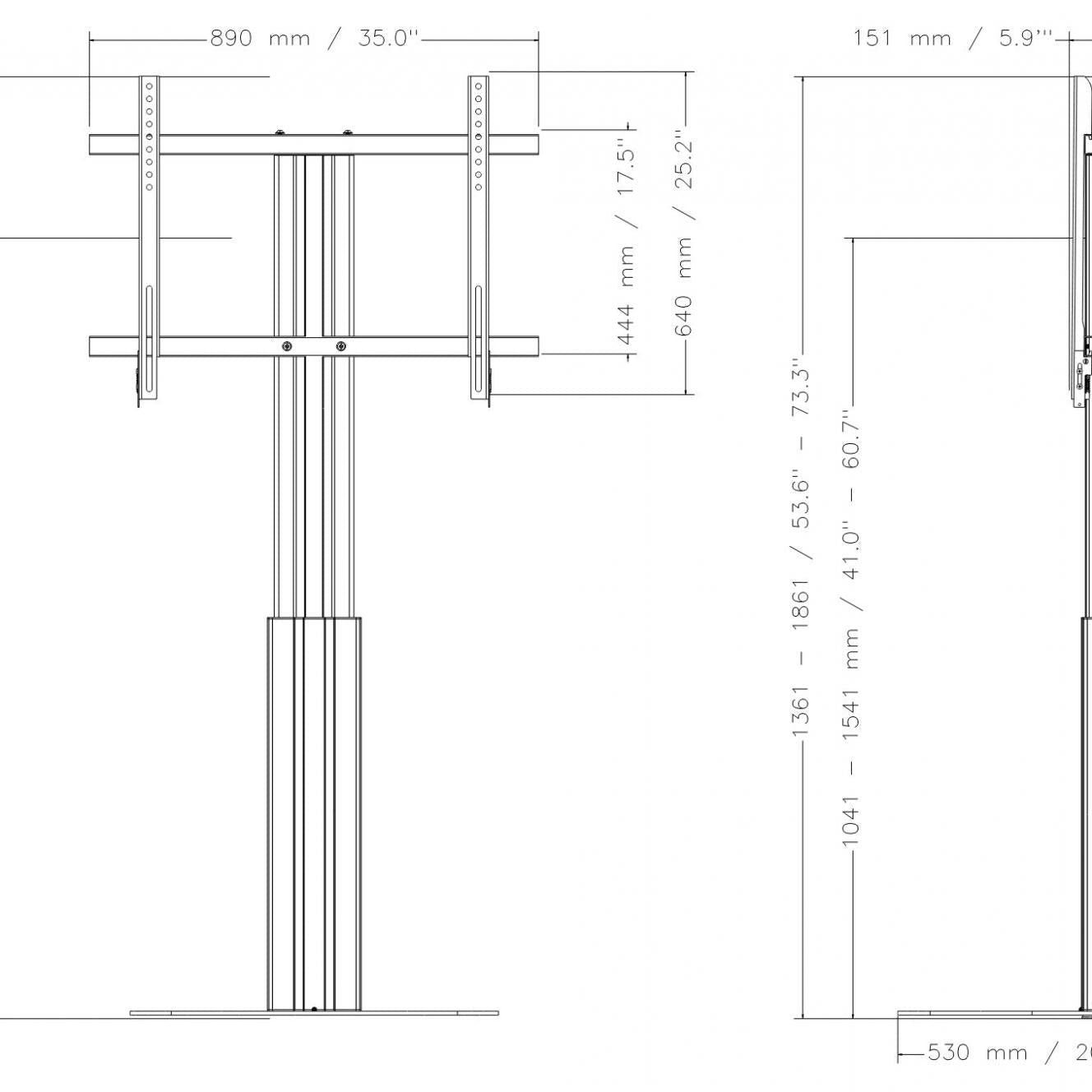

Specifications
- Item Number: CCELW-AFPB
- VESA Horizontal Compatibility: 200 mm - 800 mm
- VESA Vertical Compatibility: 200 mm - 600 mm
- Frame Size Compatibility: For screens 55" - 86"
- Vertical Travel: 50 cm
- Center to Floor Distance: 1041 mm - 1541 mm (41" - 60.7")
- Load Capacity: 136 kg (299.8 lbs)
- Width: 890 mm (35")
- Height: 1361 mm - 1861 mm (53.6" - 73.3")
- Depth: 530 mm (20.9")
- Warranty: 5 years limited warranty
- Frame Color: RAL 9005 deep black
- Column Color: Black anodized
- Base Color: RAL 9005 deep black
Packaging Details:
-
Package CCELW-AFB:
- Dimensions: 1350 x 230 x 210 mm (53.1 x 9.1 x 8.3")
- Weight: 27 kg (59.5 lbs)
-
Package CCZ7+4-LI:
- Dimensions: 122 x 70 x 62 mm (4.8 x 2.8 x 2.4")
- Weight: 0.8 kg (1.8 lbs)
-
Package PSTSCETABLI:
- Dimensions: 750 x 20 x 600 mm (29.5 x 0.8 x 23.6")
- Weight: 21.8 kg (48.1 lbs)
- Total Weight: 49.6 kg (109.4 lbs)
