Conen CCELW-AFP Height Adjustable Monitor And Tv Wall Mount, Lite Series With 50 Cm Of Vertical Travel Column Silver Anodized

Height adjustable TV & monitor wall mount for 55"-86" (interactive) touch screen monitors.

The CCELW-AFP is designed for touch screen monitors up to 86”. The units feature a monitor mount with "pull & release" locking brackets for quick and easy mounting of the monitor.

The CCELW-AFP comes with a column that offers 50 cm of vertical travel.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powdercoated in grey aluminum.

Product ships flat-packed. Cartons are courier shippable.

Features

• Mount for touch screen monitors up to 86"
• "Pull & release" brackets for easy mounting of the monitor
• VESA pattern, max. 800 x 600
• Integrated cable management
• 50 cm of smooth motorized height adjustment
• Optimum stability thanks to the floor plate and 2 wall mount brackets

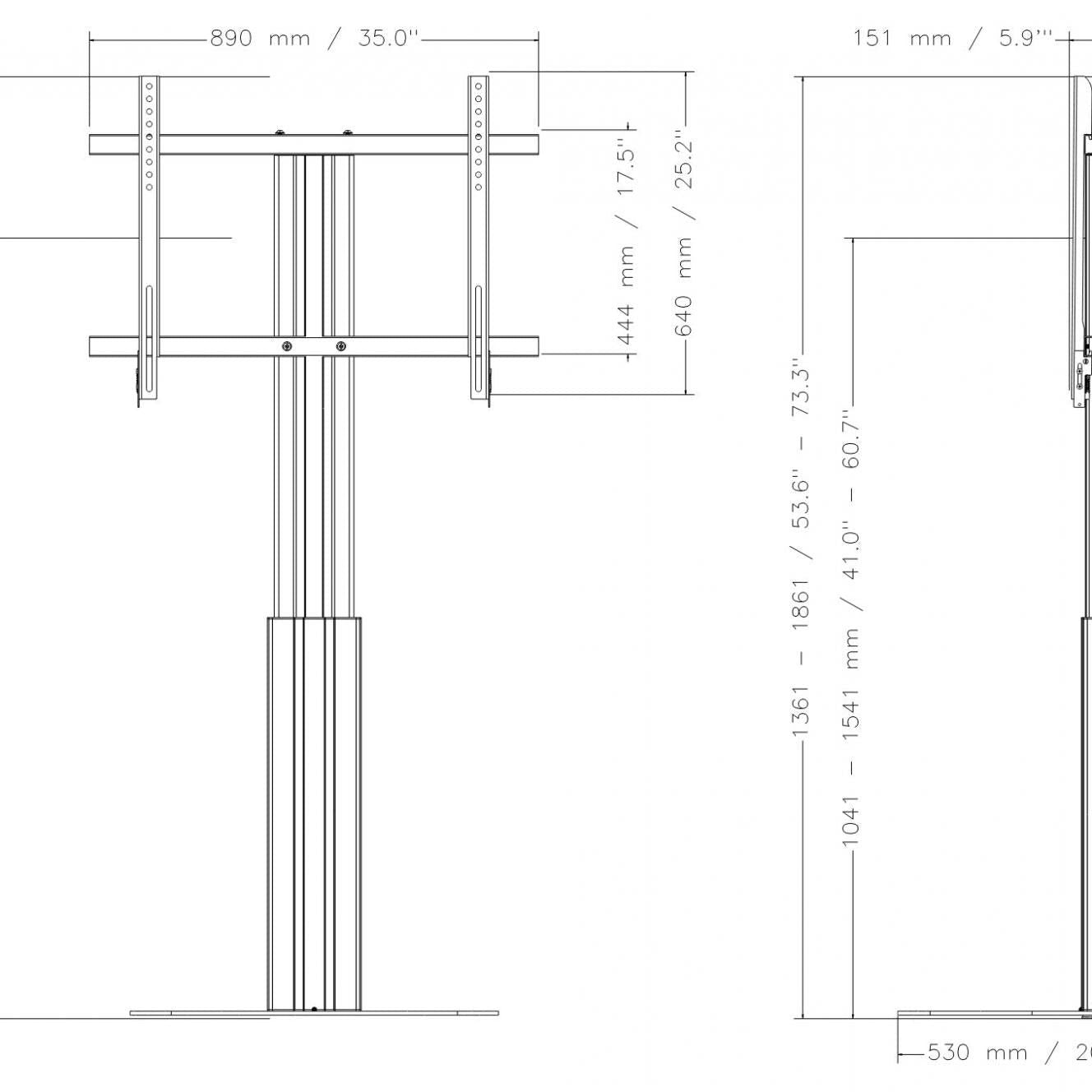

Specifications

• Item Number: CCELW-AFP
• VESA Horizontal Compatibility: 200 mm - 800 mm
• VESA Vertical Compatibility: 200 mm - 600 mm
• Frame Size Compatibility: For screens 55" - 86"
• Vertical Travel: 50 cm
• Center to Floor Distance: 1041 mm - 1541 mm (41" - 60.7")
• Load Capacity: 136 kg (299.8 lbs)
• Width: 890 mm (35")
• Height: 1361 mm - 1861 mm (53.6" - 73.3")
• Depth: 530 mm (20.9")
• Warranty: 5 years limited warranty
• Frame Color: RAL 9005 deep black
• Column Color: Silver anodized
• Base Color: RAL 9006 white aluminum

Packaging Details:

• Package CCELW-AF:
  • Dimensions: 1350 x 230 x 210 mm (53.1 x 9.1 x 8.3")
  • Weight: 27 kg (59.5 lbs)
• Package PSTSCETALI:
  • Dimensions: 750 x 20 x 600 mm (29.5 x 0.8 x 23.6")
  • Weight: 21.8 kg (48.1 lbs)
• Total Weight: 48.8 kg (107.6 lbs)
