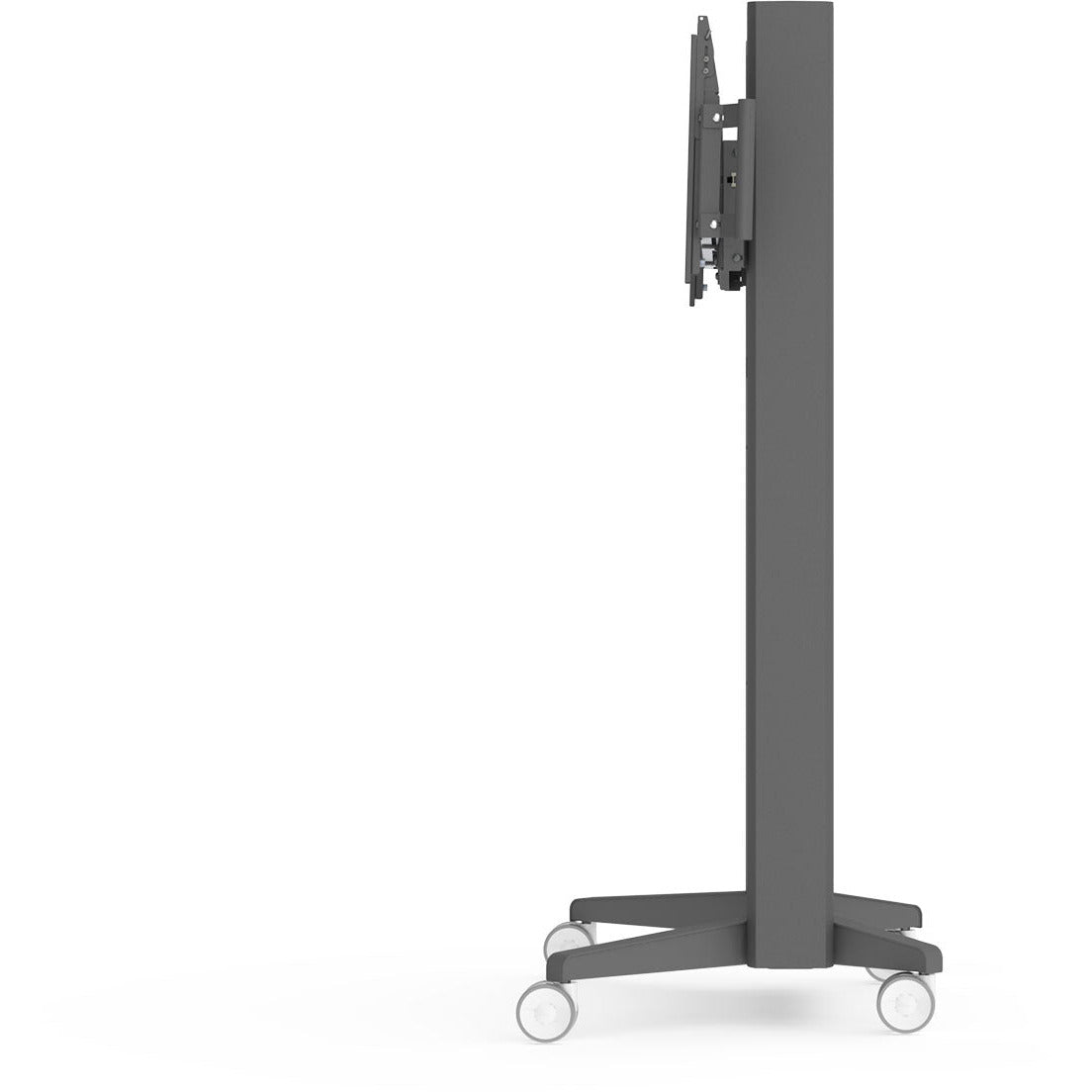

Sharp / NEC PD03MHA-CB86 High End Automatic Height-adjustable Trolley for CB861Q Touch-Display

• Soft motorised height-adjustment, readily available from a button on the side of the unit
• Especially designed for usage with touch displays
• Professional cable management inside the main body
• Storage space for equipment
• Easy to move (large handles are standard)
• Lockable 100 mm casters enable safe and easy maneuverability over various flooring surfaces
• Highly pre-assembled to make installation quick and easy
• Patent approved and design protected

Elegant yet robust, the bracket prevents the display from shaking when touched. Electrical height-adjustment makes it easy to adjust the screen to different users.

MOUNT

Mount Type	Mobile Mount
Installation	Single
Orientation	Landscape
Max. Load Capacity [kg]	120
Recommended Display Size [inch]	46 to 98

MECHANICAL

Height Adjustment [mm]

500; motorised

WEIGHT AND DIMENSIONS

Weight [kg]	82.5
Shipping Weight [kg]	Box 1: 20.4; Box 2: 65; Box 3: 9.5
Shipping Dimensions (W x H x D) [mm]	Box 1: 1,160 x 750 x 120; Box 2: 1,740 x 790 x 240; Box 3: 930 x 290 x 90
Number of Shipping Boxes	3

VESA

VESA Pattern [mm]

200 x 200 to 800 x 400

ACCESSORIES

Optional Accessories

Cart Feet FT02 (Order Code: 100013614)

ADDITIONAL FEATURES

Colour Versions	Aluminum anthracite grey
Warranty	2 years (electrical parts); 5 years (mechanical parts)
Shipping Content	100 mm Casters; Cart Legs; Handles; Main Body of Trolley incl. Electric Motor; Remote Control with Cable; VESA Mounting Rails
