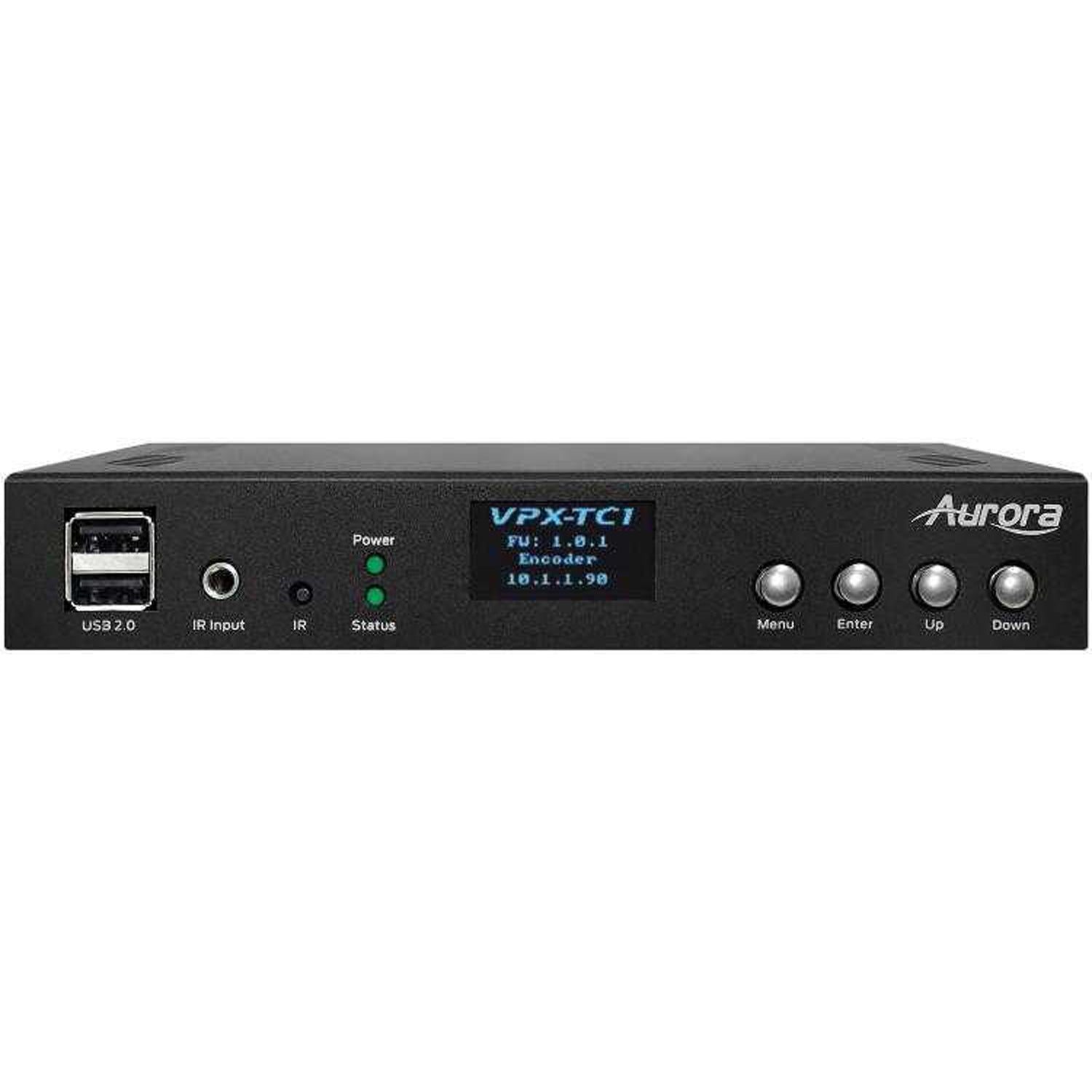

Aurora VPX-TC1-Pro 4K60 4:4:4 1Gbps AV-over-IP Transceiver box

This Aurora VPX-TC1-Pro 4K60 4:4:4 1Gbps AV-over-IP Transceiver Box provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora new Mimix CODEC technology. Mimix compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has only one frame (16.6ms) of latency and seamless switching for fast lag free content. Power consumption is important as the VPX-TC1 uses as little as 8 watts. It does this with no fan and a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems.

Features:

• Configure as Encoder or Decoder
• 4K60 4:4:4 UHD 120m over 1G CAT 5e
• HDMI 2.0b, HDCP 2.2/2.3
• HDR10, HDR10+, Dolby Vision
• LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio, Dolby ATMOS
• 12 bits color depth processing, 16bits OSD
• Enterprise Security (AES 256, HTTPS, SSH, etc)
• One Frame Latency (16.6ms)
• Low Power Fanless Design
• Seamless Switching
• MJPEG Preview at up to 30 frames
• Video Wall with Image Rotation
• 1G LAN PoE and SFP for Fiber or Second RJ-45
• 2 HDMI Inputs, 1 HDMI Output
• Line In/Out Stereo, Audio Fiber Output, & eARC
• RS-232 Serial Port and IR (In/Out)
• Channel Mapping with On Screen Display (OSD)
• Integrated Web Server for Configuration
• 1 x USB 2.0 Type C (Host for Camera)
• 1 x USB 2.0 Type C (Host for HID/Mass Storage)
• 1 x USB 2.0 Type A (Camera)
• 2 x USB 2.0 Type A (HID/Mass Storage Devices)
• Dante IP 2/8 Ch Audio Option
• Audio DSP & eARC
• ReAX Control Option
• Warrenty: 60 Months

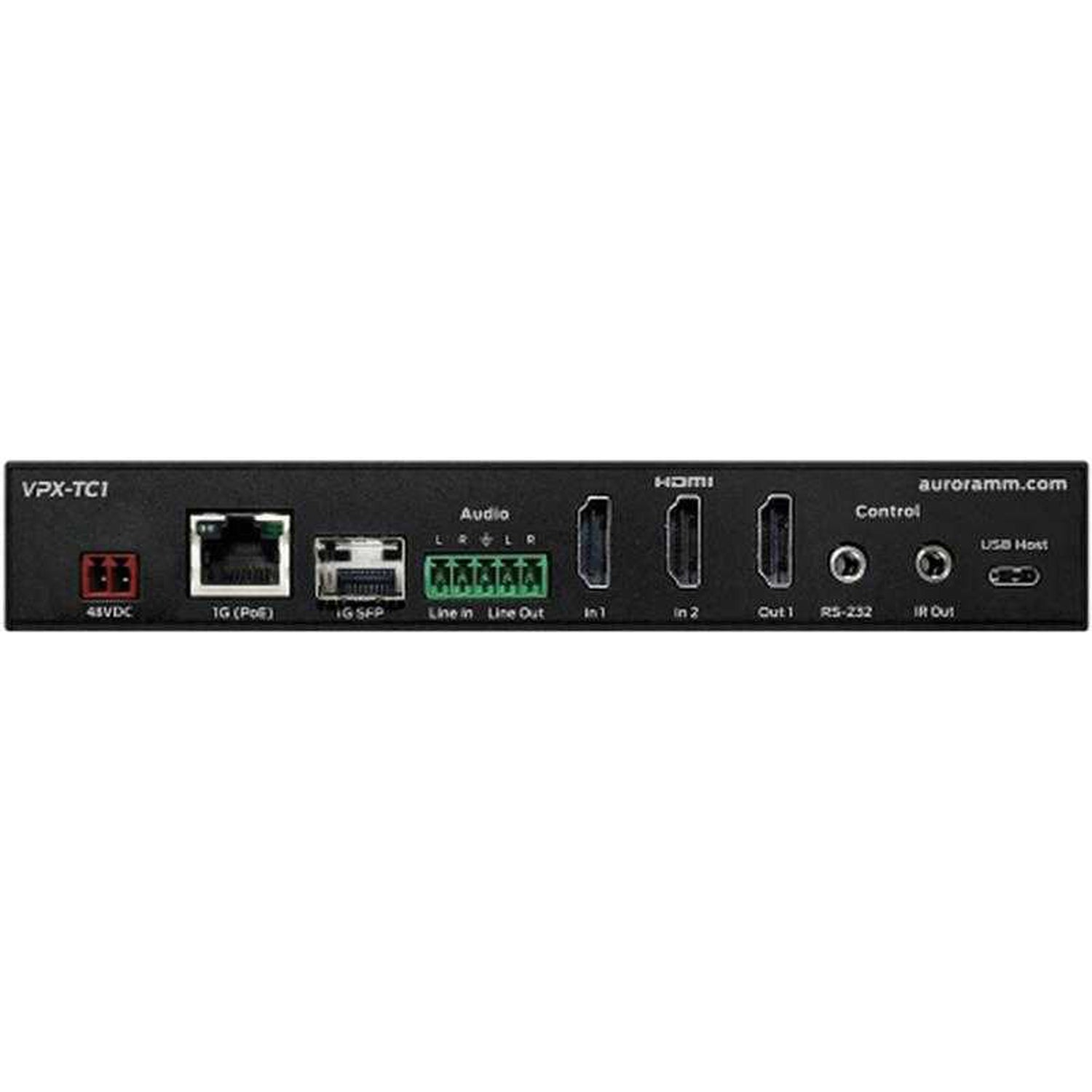

Specifications:

• Technical
  • Compression: Mimix™ 8:1
  • Latency: 1 Frame (16.6ms)
  • HDMI Inputs: 2 (HDMI 2.0b, HDCP 2.2)
  • HDMI Outputs: 1 (HDMI 2.0b, HDCP 2.2)
  • Encryption: AES 256
  • Analog Audio: Stereo Line In/Out (3.5mm TRS)
  • 1G Ethernet: RJ-45 and SFP
  • LAN: RJ-45 10/100/1000 PoE
  • Video Bandwidth: 600MHz
  • Video Support: Up to 4K2K 4:4:4 @ 60Hz
  • Audio Support: Up to 12 Channels
  • RS-232: Up to 115k Baud (3.5mm TRS)
  • IR: Bi-Directional (3.5mm TRS)
  • USB Connector: 1 USB 2.0 Type C 1 USB 1.1 Type C 1 USB 2.0 Type A 2 USB 1.1 Type A
  • Expansion Port: Dante® 2Ch/8Ch and ReAX™
  • Interface: IR or Keyboard via OSD, Web Server
• Mechanical
  • Housing: Black Aluminum Enclosure
  • Dimensions: 177.04 x 150.7 x 26.42mm [6.97” x 5.93” x 1.04”]
  • Weight: .453kg [1lbs]
  • Mounting: Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount
  • Power Supply: 48v DC (2 Pin Euro) or PoE+ (LAN)
  • Power Consumption: 8 Watts, up to 12.9 Watts with USB
  • Operating Temperature: 0~40o C [32~104o F]
  • Storage Temperature: -20~60o C [-4~140o F]
  • Relative Humidity: 20~90% RH [No Condensation]
