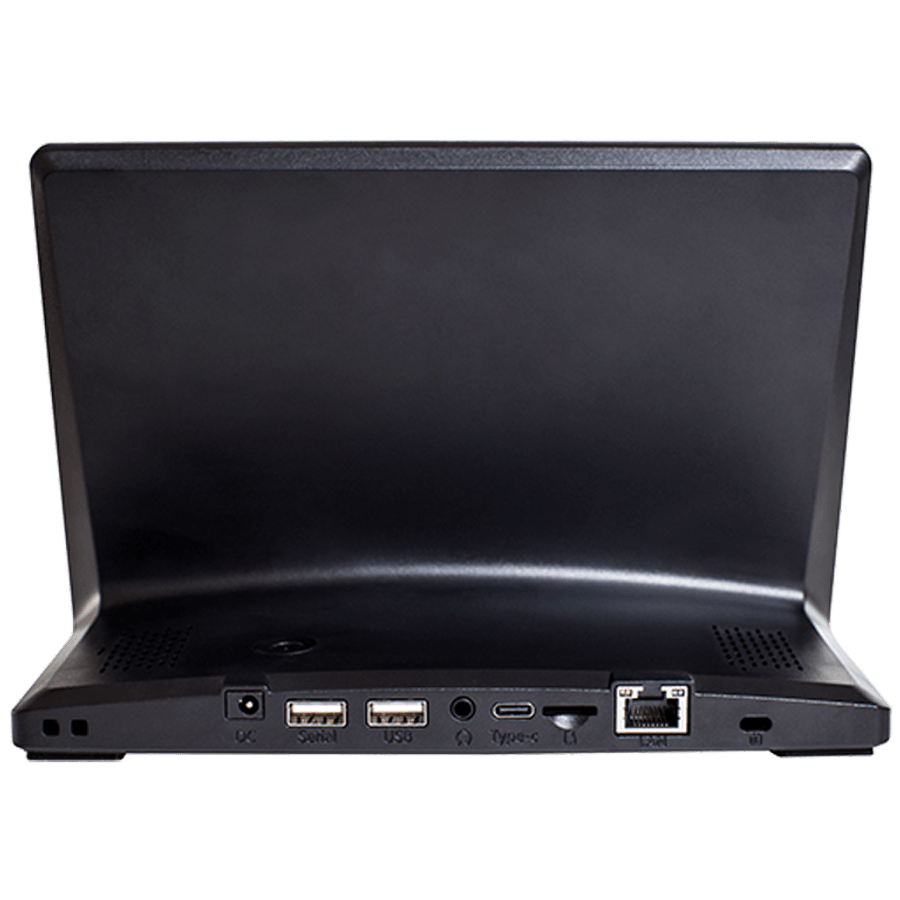

Aurora RXT-8D-W 8-desktop ReAX touch panel control system (White)

This Aurora RXT-8D-B 8??Desktop ReAX Touch Panel Control System (White) is the World?? first ReAX JavaScript based Touch Panel/Control System. Ideal for conference rooms, educational facilities, digital signage and more. Designed to sit on any flat surface, the RXT-8D has a beautiful 1280 x 800 touch screen with 170-degree viewing and room status lighting. The 2D and 3D graphics engine with H.264 streaming decoder provides a powerful solution for complex graphics and video, ensuring an enhanced user experience. To further enhance the experience the RXT-8D has a 2-watt speaker system, and digital microphone for conferencing. The RXT-8D is a powerful ??ll in one??solution for your presentation and automation needs. Core Studio tool is available free of charge for code and interface creation.

Features:

• 8” 1280x800 Resolution
• Quad Core Processor
• 2GB RAM and16GB Flash
• ReAX Server running on Android 10.0
• Audio Decoder MP3/WMA/AAC etc.
• Video Decoder MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc.,support up to 4K
• HDMI Output
• 2MP Front Camera
• WIFI 802.11b/g/n
• Bluetooth 4.0
• Micro-SD Card Slot up to 32GB
• One 2-Watt Speaker
• Warrenty: 60 Months

Specifications:

• System
  • Default Passcode: Last 8 numeric characters of units serial number
  • CPU: Quad core cortex A17
  • RAM: 2GB
  • Internal memory: 16GB
  • Operating system: ReAX server running on Android 10.0
• Display
  • Panel: 8" LCD
  • Resolution: 1280x800
  • Touch screen: 10-point capacitive touch
  • Viewing angle: 170° (85/85/85/85 [L/R/U/D])
  • Contrast ratio: 800:1
  • Luminance: 250cd/m2
  • Aspect ratio: 16:10
• Network
  • WiFi: 802.11 b/g/n
  • Ethernet: 10M/100M/1000M
  • Bluetooth: Bluetooth 4.0
• Ports
  • Card slot: TF (Micro-SD) card, up to 32GB
  • RS-232: USB for serial (RS232 format)
  • USB: USB Host 2.0
  • USB Type-C: USB OTG Only
  • Power jack: DC power input
  • Audio out: 3.5mm TRS out
  • Ethernet: RJ-45
• Other
  • NFC: NFC 13.56MHz??SO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
  • Microphone: Single microphone
  • Speaker: (1) 2W speaker
  • Camera: 5.0M/P front camera
• Power
  • Power: 12V/1.5A or PoE
  • Power adapter: 12V adapter included
• Physical
  • Product dimensions (WxHxD): 8.125” x .4.125” x 5.63” 206.4mm x 104.8mm x 143mm
  • Weight: 1lb (0.45kg)
  • Enclosure: Plastic enclosure, white or White
  • Operating temperature: 0~40°C [32~104°F]
  • Storage temperature: 0~60°C [32~140°F]
  • Relative humidity: 20~85% RH [no condensation]

Downloads:

• Users Guide
• Spec Sheet
