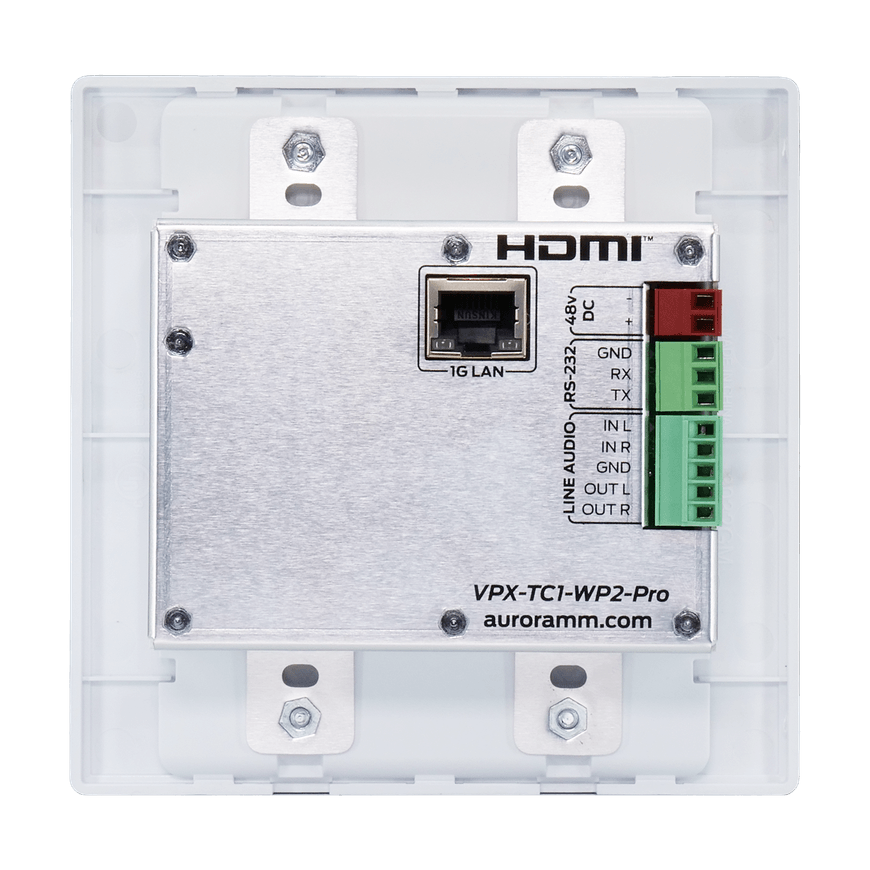

Aurora Multimedia VPX-TC1-WP2-Pro-W 4K60 4:4:4 1Gbps AV over IP Wall Plate Transceiver - White

This Aurora Multimedia VPX-TC1-WP2-Pro-W 4K60 4:4:4 1Gbps AV over IP Wall Plate Transceiver - White provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora’s new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) of latency and seamless switching for fast lag free content.

Power consumption is important as the VPX-TC1-WP2-Pro uses as little as 8 watts. It does this with in a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems. Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch.

The 2 video inputs can be selected from the buttons, auto sense, or IP command. The audio can be de-embedded at any location, and/or be sent to or received from a Dante® enabled device. The USB is also flexible, working as a KVM and/or a high-speed data transfer for memory sticks & another port just for cameras. Together with the VPX-TC1 Pro box version, the possibilities are nearly limitless and scalable.

Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1-WP2-Pro.

Features:

• 4K60 4:4:4 UHD 120m over 1G CAT 5e
• Zero Frame Latency (1.78ms)
• HDR10, HDR10+, Dolby Vision
• LPCM up to 12-channels, Dolby Digital Plus, Dolby
•  TrueHD DTS HD Master Audio, Dolby ATMOS
• 12 bits color depth processing, 16bits OSD
• Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
• Seamless Switching, Video Wall and Image Rotation
• EPG & Channel Mapping
• MJPEG Preview up to 720p30
• 1 HDMI Inputs, 1 USB-C Video/Data
• USB 2.0 Type A
• Line In/Out on Rear for Add-on Audio Wall Plates
• 1G LAN PoE
• RS-232 Serial Port
• Integrated Web Server for Configuration
• Dante® 2/8 Ch Audio License Options & Dante Controller
• Low Power at 8 Watts
• 2 Gang Mounting Available in White and Black
• Warrenty: 60 Months

Specifications:

• Technical
  • Compression: Mimix™ 13:1
  • Latency: 0 Frames (1.78ms)
  • Video Inputs: 1 HDMI 2.0b, 1 USB-C
  • Encryption: HDCP 2.3 & AES 256
  • Audio Analog: Stereo Line In/Out (3.5mm TRS)
  • 1G Ethernet: RJ-45 and SFP
  • LAN: RJ-45 10/100/1000M PoE
  • Video Bandwidth: 600MHz
  • Video Support: Up to 4K2K 4:4:4 @ 60Hz
  • Audio Support: Up to 12 Channels
  • Video Stream Bandwidth: 93Mbps – 850Mbps (4K60 4:4:4) Packet Size Under 1600, 1Gbps with USB and Audio
  • USB Bandwidth: 200Mbps (Camera), 170Mbps (HID/Mass Storage Devices)
  • RS-232: Up to 115k Baud (3.5mm TRS)
  • IR: Bi-Directional (3.5mm TRS)
  • USB Connector: 1 USB 2.0 Type A & 1 USB 2.0 Type-C
  • Options: Dante® 2Ch/8Ch
  • Interface: IR or Keyboard via OSD, Web Server
• Mechanical
  • Housing: Aluminum Enclosure
  • Dimensions (L x W x H): 3.728” x 2.83” (4.331” with tabs) x 1.404”
  • Weight: 2.5lbs (1.13g)
  • Mounting: 2 Gang Decora Style
  • Power Supply: 48v DC (2 Pin Euro) or PoE (LAN)
  • Power Consumption: 6.4 Watts, up to 12.9 Watts with USB
  • Operation Temperature: 0~40o C [32~104o F]
  • Storage Temperature: -20~60o C [-4~140o F]
  • Relative Humidity: 20~90% RH [No Condensation]
  • Package Contents: VPX-TC1-WP2

Downloads:

• Spec Sheet
• Users Guide
