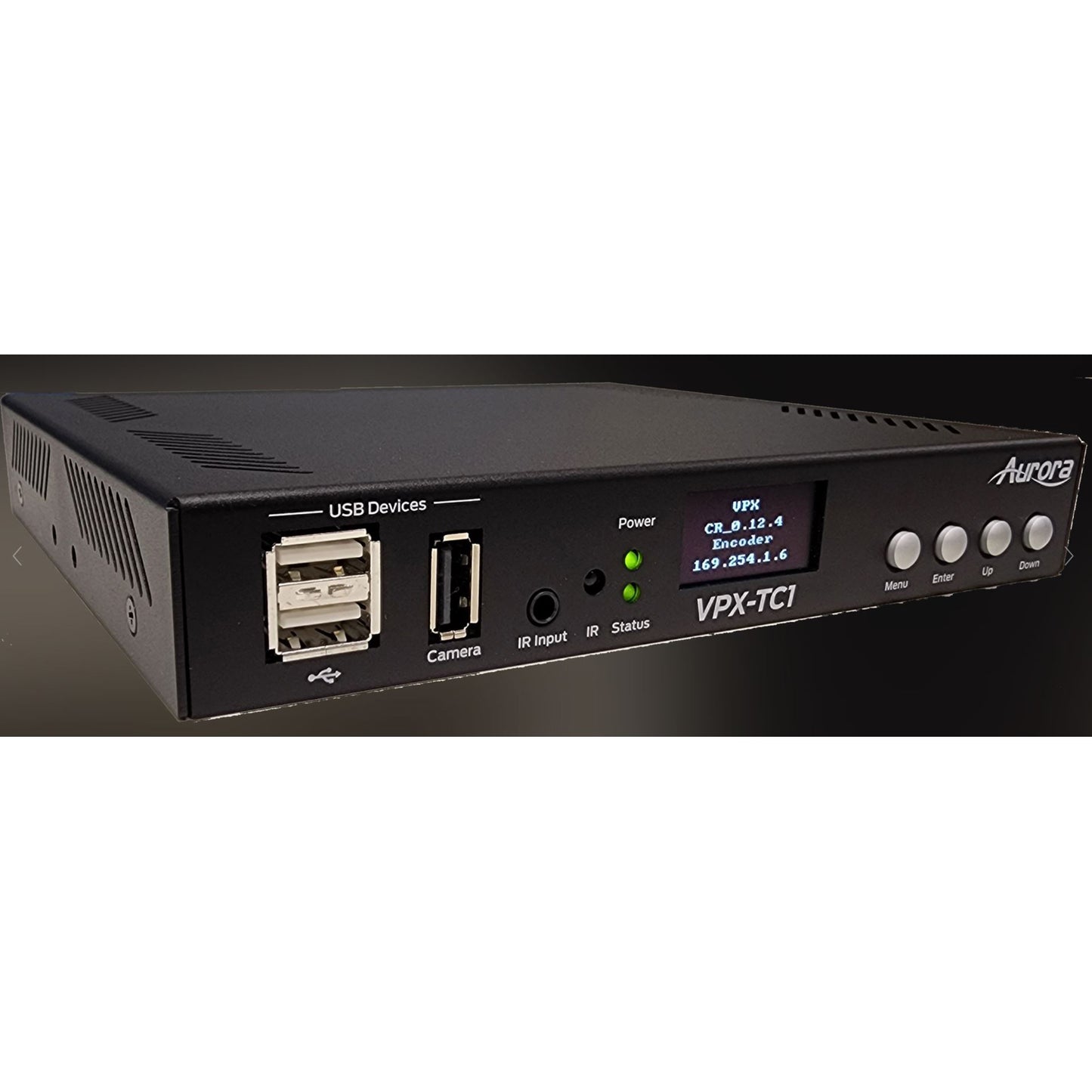

Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box

This Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box Utilizing Aurora's Mimix™ CODEC provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora's new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K30 4:4:4 over 1G networks. It has only one frame (16.6ms) of latency and seamless switching for fast lag free content. Power consumption is important as the VPX-TC1 uses as little as 8 watts. It does this with no fan and a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems. Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch. When the VPX-TC1 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the VPX-TC1 is set up, the audio can be de-embedded at any location, and/or be sent to or received from a Dante enabled device. The USB is also flexible, working as a KVM and/or a high-speed data transfer (100Mbps) for memory sticks & cameras. Each VPX-TC1 USB feature can also be set as a host or a device. To keep the system friendly, an OSD and integrated web server are available for easy navigation and setup of features. Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1.

Features:

• Configure as Encoder or Decoder
• 4K60 4:4:4 UHD 120m over 1G CAT 5e
• HDMI 2.0b, HDCP 2.2
• HDR10, HDR10+, Dolby Vision
• LPCM up to 12-channels, Dolby Digital Plus, DolbyTrueHD DTS HD Master Audio & ATMOS.
• 12 bits color depth processing, 16bits OSD
• Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
• One Frame Latency (16.6ms)
• Low Power Fanless Design
• Seamless Switching
• MJPEG Preview at up to 30 frames
• Video Wall with Image Rotation
• 1G LAN PoE and SFP for Fiber or 2nd RJ-45
• 2 HDMI Inputs, 1 HDMI Output
• Line In/Out Stereo
• RS-232 Serial Port and IR (In/Out)
• Channel Mapping with On-Screen Preview & EPG
• Integrated Web Server for Configuration
• 2 USB 2.0 for Cameras
• 3 USB 2.0 for HID Devices, Mass Storage, etc.
• Dante 2/8 Ch Audio License Options & Dante Controller
• Rack and Under Table Mounting
• Warrenty: 60 Months

Specifications:

• Compression: Mimix 8:1
• Latency: 1 Frame (16.6ms)
• HDMI Inputs: 2 (HDMI 2.0b, HDCP 2.2)
• HDMI Outputs: 1 (HDMI 2.0b, HDCP 2.2)
• Encryption: AES 256
• Analog Audio: Stereo Line In/Out (3.5mm TRS)
• 1G Ethernet: RJ-45 and SFP
• LAN: RJ-45 10/100/1000 PoE
• Video Bandwidth: 600MHz
• Video Support: Up to 4K2K 4:4:4 @ 60Hz
• Audio Support: Up to 12 Channels
• RS-232: Up to 115k Baud (3.5mm TRS)
• IR: Bi-Directional (3.5mm TRS)
• USB Connector: 1 USB 2.0 Type C 1 USB 1.1 Type C 1 USB 2.0 Type A 2 USB 1.1 Type A
• Expansion Port: Danter 2Ch/8Ch and ReAX
• Interface: IR or Keyboard via OSD, Web Server
• Housing: Black Aluminum Enclosure
• Dimensions: 6.97" x 5.93" x 1.04"
• Weight: 1lbs
• Mounting: Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount
• Power Supply: 48v DC (2 Pin Euro) or PoE+ (LAN)
• Power Consumption: 8 Watts, up to 12.9 Watts with USB
• Operating Temperature: 32~104°F
• Storage Temperature: -4~140°F
• Relative Humidity: 20~90% RH [No Condensation]

Downloads:

• Spec Sheet
