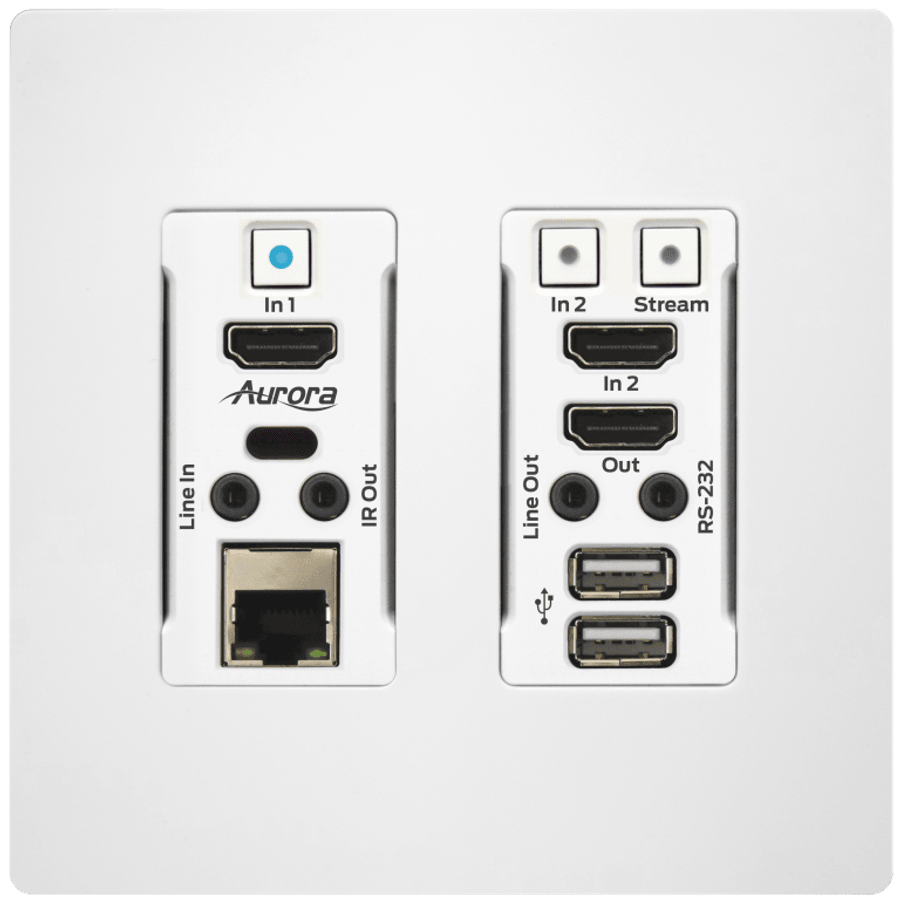

Aurora Multimedia VLX-TCW2H-C-W HDMI 4K IP Wall Plate Extender/White

Aurora Multimedia VLX-TCW2H-C-W HDMI 4K IP Wall Plate Extender/White

Out of stock

VLX-TCW2H-C-W

Login to see price
Login to see price Login to see price
Sale Sold out

Aurora Multimedia VLX-TCW2H-C-W HDMI 4K IP Audio/Video Wall Plate Extender/White

Aurora Multimedia VLX-TCW2H-C-W HDMI 4K IP Audio/Video Wall Plate Extender/White is a state-of-the-art IP Streaming solution on the market using Aurora's IPBaseT technology, which integrates several IP/AV standards to function as one. It is Aurora's first 4K UHD transceiver with just 1.5 frames (25ms) latency and visually lossless compression. The unit has 2 HDMI® ports.

Using an encoder (transmitter) and decoder (receiver), respectively, used to be the standard - till now. The VLX-TCW2 Series can be set up to either make installation, inventory and also troubleshooting easier. The VLX-TCW2H supports HDMI® 2.0, HDCP 2.2 and PoE. It features unlimited scalability based on network topology and Auto sense switching. The selected network switch must support 1Gbps, Non-blocking IGMP, and Jumbo Frame Packets.

Features:

  • 4K visually lossless over 1Gbps network
  • Low 1.5 frame latency
    • HDMI® 2.0/HDCP 2.2
  • Unlimited scalability (based on network topology)
  • Videowall with image rotation
  • PoE (Power over Ethernet)
  • Stereo line I/O
  • RS-232 and IR Control Ports
  • Auto sense switching
  • USB 2.0 Host and Device Ports
  • Dante® IP audio option
  • Color - Black
  • Warrenty: 60 Months

Specifications:

Technical
Compression 8:1
Latency 1.5 Frames (25ms)
HDMI Inputsa 2 HDMI 2.0/HDCP2.2
HDMI Outputs 1 HDMI 2.0/HDCP2.2
Audio Analog Stereo Line In/Out (3.5mm TRS)
1G Copper Ethernet RJ-45
LAN RJ-45 10/100/1000M PoE (PSE)
Video Bandwidth 340MHz
Video support Up to 4K2K 4:2:0 @60Hz
Audio support Up to 32 channels & Break-away Capable
RS-232 2 qty Up to 115k Baud (3.5mm TRS)
IR Bi-Directional (3.5mm TRS)
USB Connector 1 USB 2.0 Type A, 1 USB 2.0 Type B 2 USB 1.1 Type A
Expansion Port Dante® Option
Interface IR or Keypad via OSD, Webserver
Mechanical
Housing Aluminum
Dimensions [L x W x H] 2 Gang 3.728" x 2.83"(4.331" with tabs) x 1.404"
Weight 1.13g [2.5lbs]
Mounting Wall-mounting Decora® 2 Gang
Power supply 48V DC (2 pin Euro) or 1G PoE
Power consumption 9 Watts
Operation temperature 0~40C [32~104F]
Storage temperature -20~60C [-4~140F]
Relative humidity 20~90% RH [no condensation]
