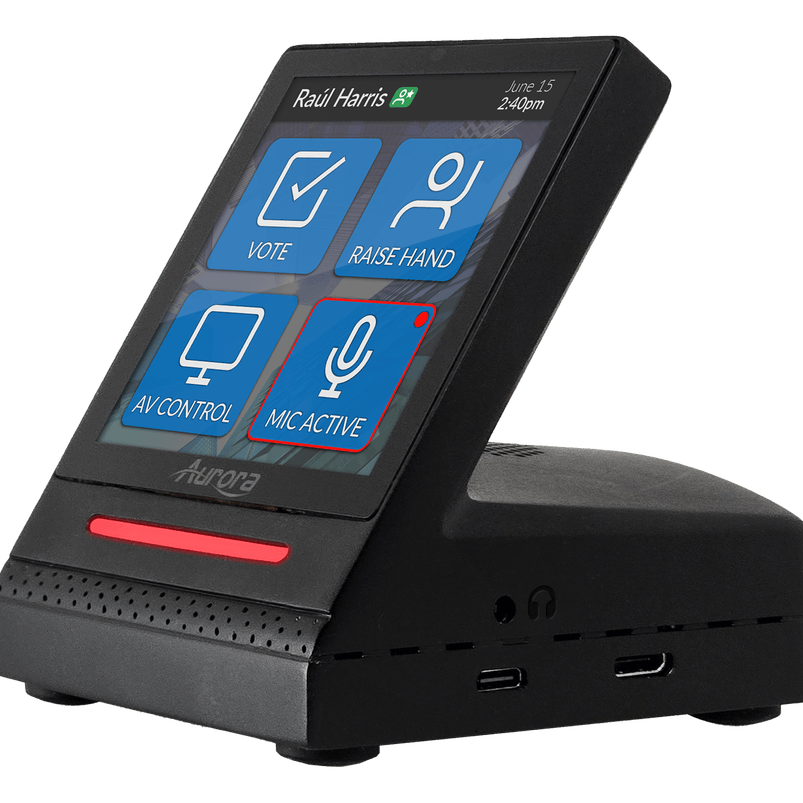

Aurora Multimedia RXT-4DV ReAX™ 4” Desktop Touch Screen/Controller with Beamforming Dante Microphone & 4K AV over IP

The RXT-4DV is a 4” desktop touch panel with a ReAX™ JavaScript based control system. Ideal for conference rooms, educational facilities, hospitality, digital signage and more. The RXT‑4DV has a beautiful 720 x 720 1:1 aspect ratio touch screen with 160° viewing. It is also designed to work as a Dante™ beam forming microphone with advanced hardware for feedback suppression, auto gain, & noise cancelation. The built in 4-Watt speaker allows the creation of a speaker array when multiple units are used.

To further the capability of this all-in-one unit is the integrated VPX 1Gbps 4k60 AV over IP transmitter. On the side is a USB-C and mini-HDMI input connector. On the rear is a USB-C power pass-through connector which can move 100 watts to the side input connector for laptop charging. There is also a USB-C display output connector on the rear for secondary screen usage.

The 2D/3D graphics engine with 4K H.264 streaming decoder provides a powerful solution for complex graphics and video, ensuring an enhanced user experience.

To further enhance the experience, the RXT‑4DV has a 4-watt powered speaker, proximity sensor, & ambient light sensor. The internal web server allows control from remote devices like cell phones and computers.

The RXT-4DV is a powerful ‘all-in-one’ solution for your presentation and automation needs. Core Studio tool is available free of charge for code and interface creation.

• Voting
• Booking
• Name Placeholder
• Raise Hand Function
• Full Room Automation
• Wireless Microphone via Bluetooth
• Assistive Hearing & Translation Talkback
• Wireless Remote Web Control
• Content Distribution
• Fully Customizable

Features:

• 4” 720x720 Resolution 1000 nits
• Six Core 2.0GHz Processor
• 800MHz Audio DSP
• ReAX™ Control Engine
• 1Gbps 4K60 AV over IP VPX Transmitter
• 1 USB-C & 1 Mini HDMI Input Connector
• 1 USB-C 100-Watt Pass through Power Port
• 1 USB-C Display Output
• Server-Side JavaScript
• Ambient Light & Proximity
• Front and Rear RGB LED Indicators
• 3.5mm Headphone Out & Speaker
• Beam Forming Microphones
• Noise Cancelation
• Feedback Suppression & Auto Gain
• Dante/AES67
• Bluetooth
• NFC
• 1G LAN PoE+
• Warrenty: 60 Months

Downloads:

• Mechanical
• Spec Sheet
