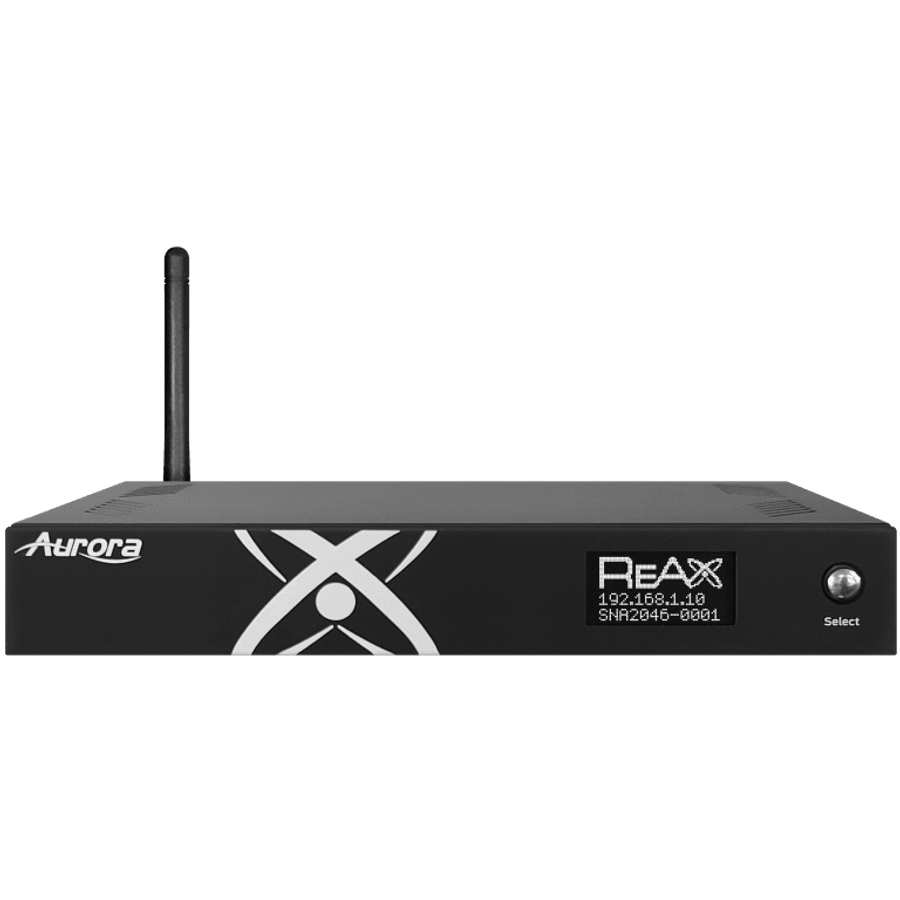

Aurora Multimedia RXM-1 Reax Control Processor Digital Signage & Media Playback

This Aurora Multimedia RXM-1 Reax Control Processor With Ethernet & Wifi, And Hdmi Out For Byo Touch Monitor Or Digital Signage And Media Playback is a ReAX controller with an HDMI output for digital signage and media playback applications. Using ReAX Core Studio software, users can schedule media playback, create powerful control interfaces, interactive kiosk applications, and more.

Features:

• Powerful ReAX control system
• Digital signage capable
• Media playback engine
• Interactive kiosk presentation solution
• Add-on AI camera option for demographic predition and logging
• Completely customizable user interfaces
• Warrenty: 60 Months

Specifications:

• Hardware & OS
  • CPU: RK3399 hexa-core processor
  • RAM: 4GB DDR3
  • ROM: 32GB eMMC Flash
  • OS: Android 9
• Video/Audio
  • Video Output: HDMI 2.0 output
  • Audio Output: Line out
• Communication
  • Bluetooth: EDR 4.0
  • WiFi: 802.11 b/g/n 2.4GHz and 5GHz
  • Ethernet: 10/100/1000 LAN
• General Information
  • I/O: 12v DC Input, USB Type C, 3.5mm Audio Line L/R Out, HDMI 2.0 Output, SD Card Slot, SIM Card Slot (4G Option), USB 3.0, USB 2.0, 1G LAN PoE
  • Included in Box: RXM-1, WIFI Antenna, Mounting Ears
  • Power Consumption: 11W
  • Power Input: 12V 2A or PoE
  • Operating Environment - Temperature: Operating: 32°F to 100'F (0°C to 40°C); Storage: -4° F to 122°F (-20'C to 50°C)
  • Operating Environment - Humidity: Operating: 20%-80%; Storage· 10%-95%
  • Certification: CE, FCC, ROHS
• Physical
  • RXM-1 Slze (WxHxD): 177mm x 104.2mm x 27.3mm (6.97” x 4.1” x 1.07”)

Download

• Mechanical Drawings
