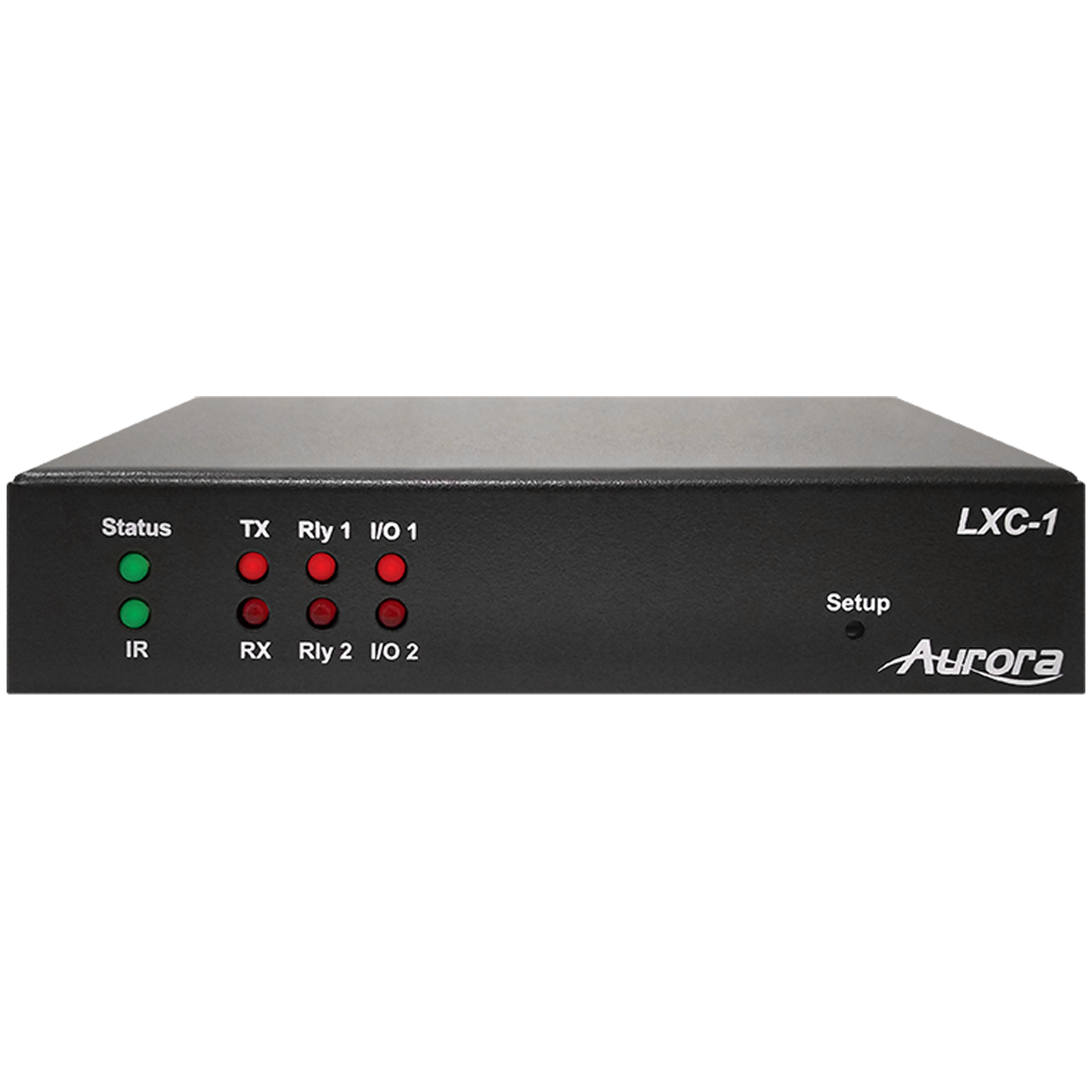

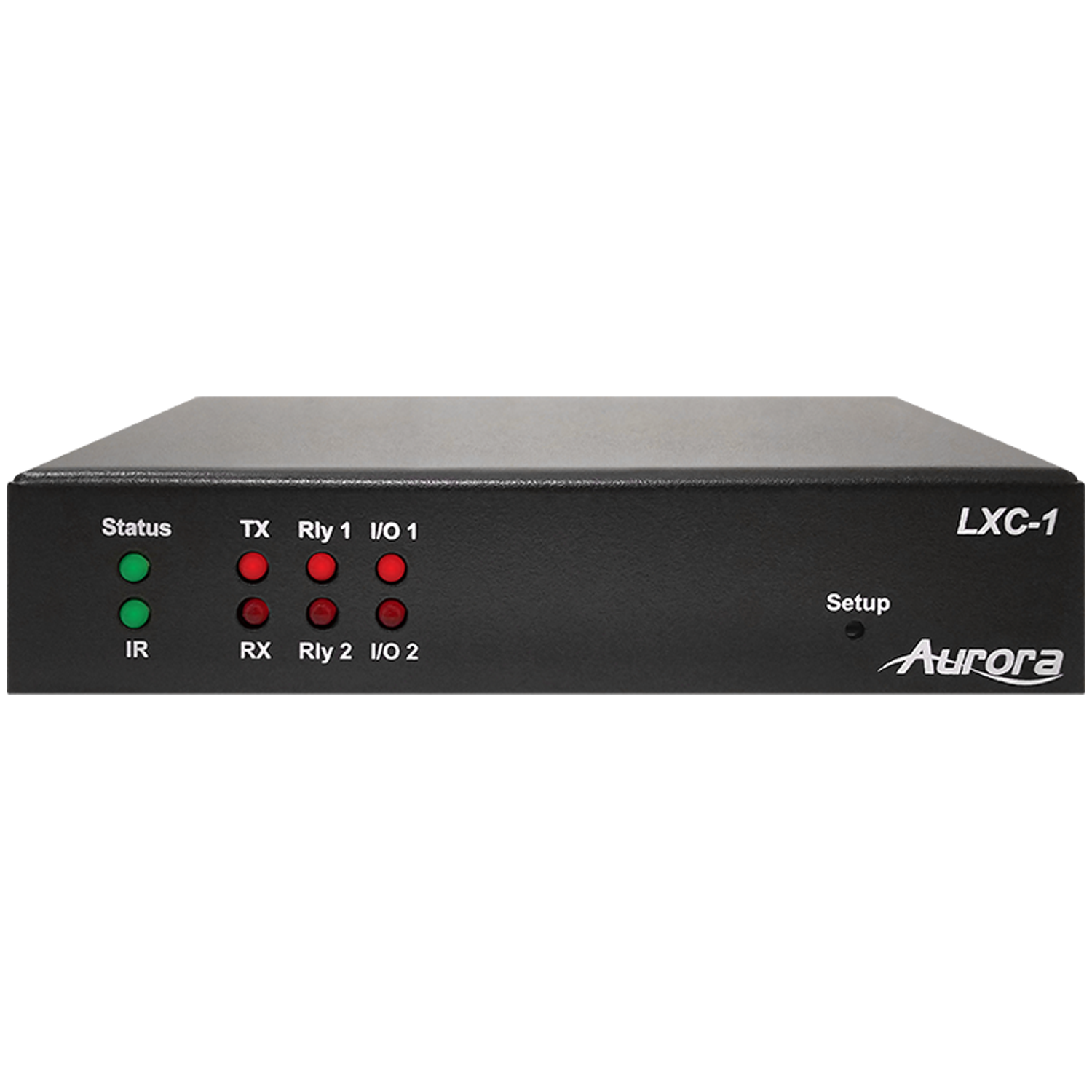

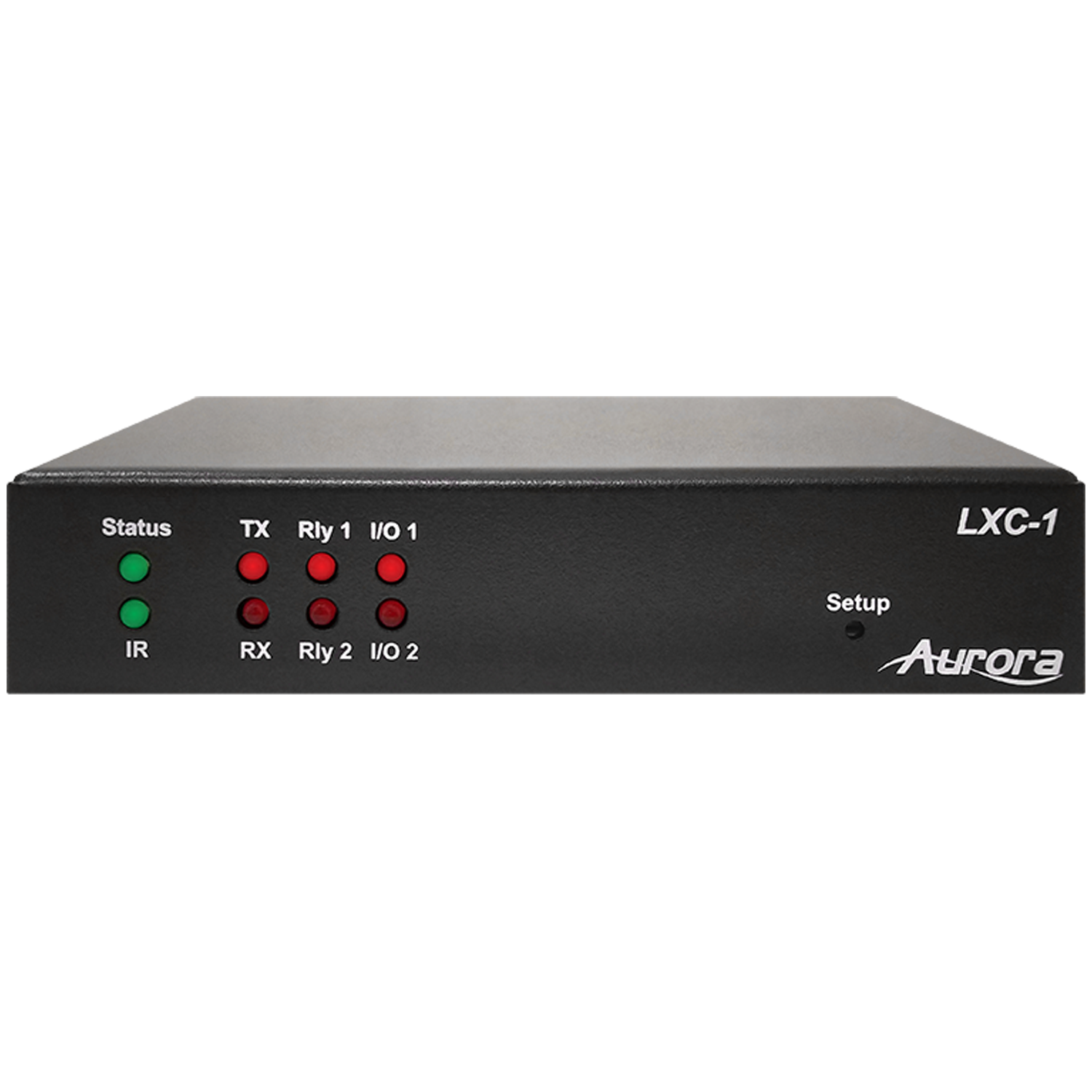

Aurora Multimedia LXC-1-G2 Control Port Expansion Box with Serial & Ethernet Control Ports

This Aurora Multimedia LXC-1-G2 Control Port Expansion Box with Serial, Relay, I/O, IR, and Ethernet Control Ports is a low cost high performance IP to port expander. Designed for control port expansion, the LXC-1 has a variety of ports including 1-serial, 1 - IR, 2 - relays, and 2 - I/O ports. The internal Flash memory provides the ability for storing and serving up web-control pages for complete in room and remote control. All configuration of ports and can be done with the integrated setup web page. The LXC-1 works with all Aurora IP control products and 3rd party control too. Power Supply NOT included, please order separately.

Features

• 32 bit RISC Processor / 120Mhz
• 256Kb RAM / 1Mb Flash / >4Gb Micro SD
• Telnet / TCP Controlled
• One Serial Port
• Two C-Type Relay Ports
• Two Digital I/O Ports
• One IR Port
• 10/100 LAN Power Over Ethernet (PoE)
• Integrated Web Server
• Integrated Setup Web pages
• Power 3 Watts
• Small Size 4.65" x 2.86" x .98"
• Warrenty: 60 Months

Download

• User Guide
