Aurora Multimedia DXE-CAT-S2-4K HDMI Hdbaset Extender 183m/600ft Kit

Aurora Multimedia DXE-CAT-S2-4K HDMI Hdbaset Cat Extender (Transmitter/Receiver) 183m/600ft Kit is different from the typical CAT extender in the market today because its powerful design provides usability and distinct features. The rear mounted connectors are on one side to provide for a clean wiring and secure professional rack mounting. Also, bidirectional RS-232, IR, & LAN can be sent over the same cable.

The device makes use of Aurora's exclusive FlexPowerTM POE circuit (Patents Pending), which eliminates the need of any wall supplies when powering both the transmitter and receiver hence keeping things neat and reducing installation time. Being able to go the distance is important too, and HDBaseT technology helps achieve that.

With a single CAT cable, the DXE-CAT can go up to 328ft 4K 30Hz or 1080p 60Hz 48bit color depth, 500ft 1080p 60Hz 24bit (CAT 6), and 600ft 1080p 60Hz 24bit (CAT 6A Shielded) depending on model and cable. Also, the RS-232, IR, & LAN can be sent over the same cable bi-directionally.

• Transmit HDMI up to 1080p 60Hz 48bit 330ft over one CAT 5e/6/7 cable
• Transmit HDMI up to 1080p 60Hz 24bit 500ft over one CAT 6 cable
• Transmit HDMI up to 1080p 60Hz 24bit 600ft over one CAT 6a shielded cable
• HDCP Compliant
• All connectors on one side for easier installation
• Bi-directional RS-232 & IR & LAN
• Power both units from TX or RX side with wall power supply (HDBaseT POE)
• LAN POE (Power-Over-Ethernet) can power both TX & RX without wall supplies (Patents Pending)

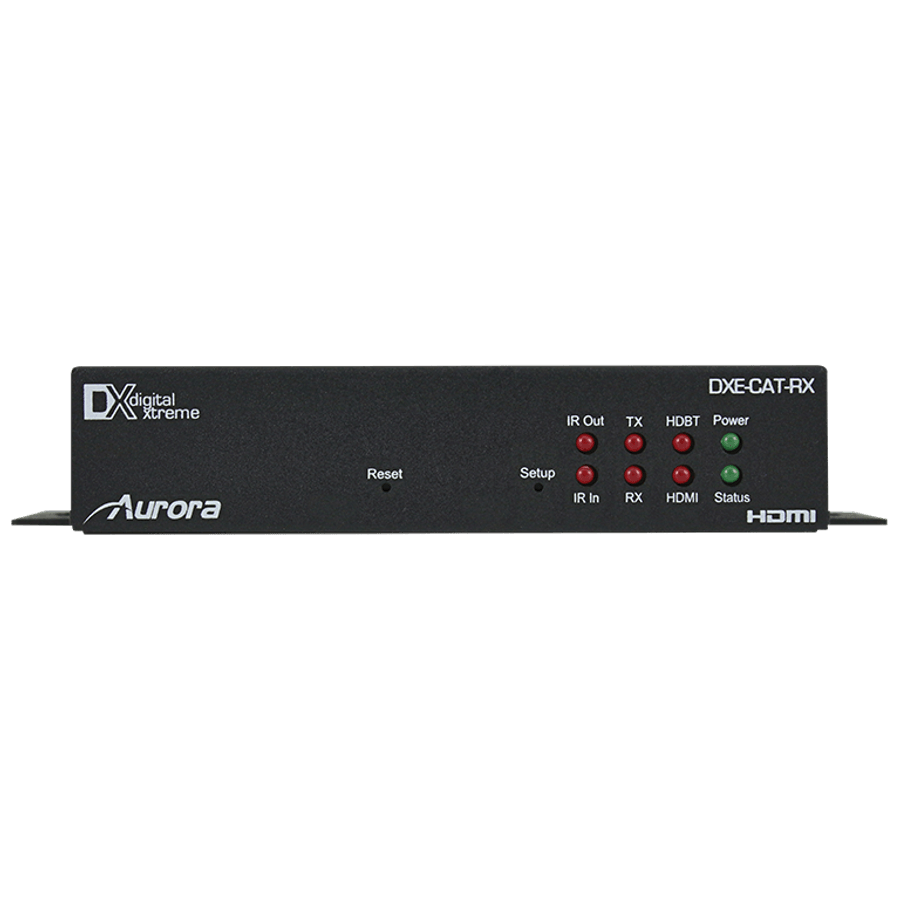

• Status LED for all connections on front
• Various mounting options
• Comes in a variety of models for different features & cost savings
• Warrenty : 60 Months

Specifications:

Download

• User Guide
• Spec Sheet
