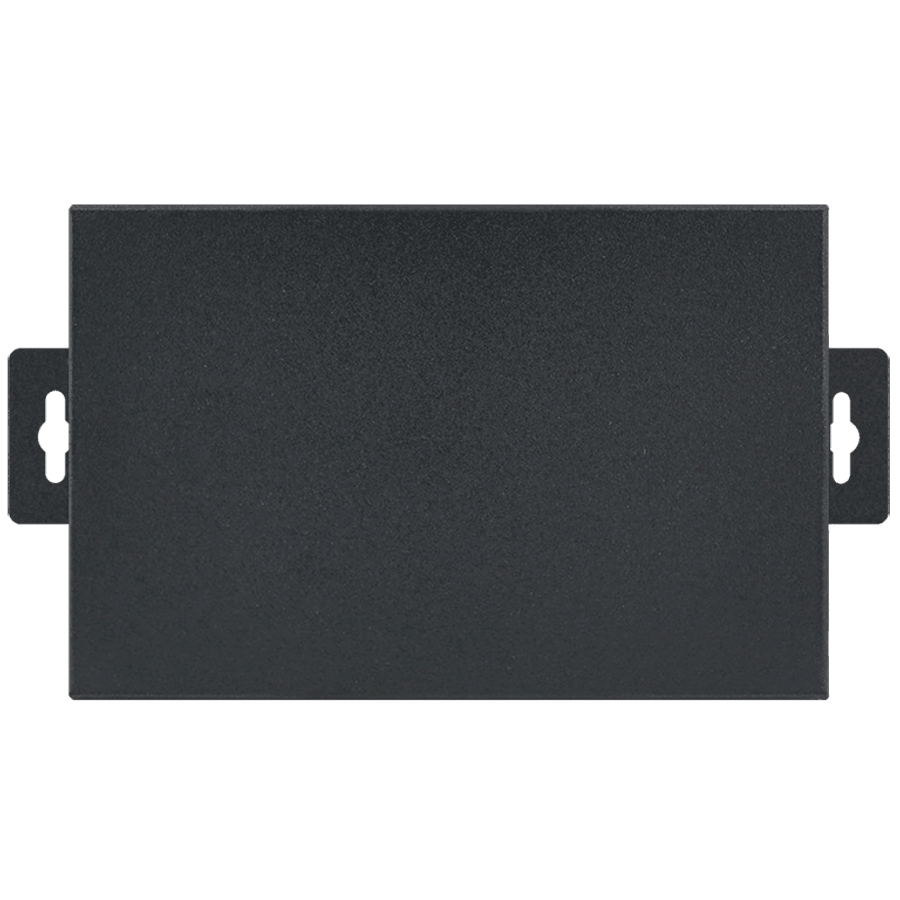

Aurora Multimedia DXE-CAT-S1-4K HDMI Hdbaset Cat Extender Kit

Aurora Multimedia DXE-CAT-S1-4K HDMI Hdbaset Cat Extender Kit

Low stock

DXE-CAT-S1-4K

Login to see price
Login to see price Login to see price
Sale Sold out

The DXE‑CAT is part of the growing Digital Xtreme Series. This product is different than the typical CAT extender found on the market today, as it not only breaks the price barrier, but the feature and usability aspects as well. All connectors are on one side to make wiring cleaner and rack mounting easier. Having the ability to power the device with the choice of transmit or receive reduces the installation time and keeps things neat. An industry first is Aurora’s exclusive Power-Over-Ethernet circuit, which allows both the transmitter and receiver to be powered without the need of any wall supplies.

Features:

  • Transmit HDMI up to 4k 30Hz 36bit 230ft over one CAT 5e/6/7 cable
  • 4K UHD Resolution
  • All connectors on one side for easier installation
  • Bi-directional RS-232 & IR
  • Power both units from TX or RX side with wall power supply
  • Status LED for all connections on front
  • Various mounting options
  • Comes in a variety of models for different features & cost savings
  • Warrenty : 60 Months

Specifications:

Technical

Max Distance 230ft
Max Resolution 4K UHD 30Hz
Color Depth 36bit
RS-232 Max 115kbps
IR without LXC 30k-60kHz
IR Output with LXC 30Hz-100kHz
IR Input with LXC 30k-60kHz
Front LED Status Power, Status, HDMI, HDBaseT, RS-232 TX/RX, IR In/Out
Front Selections Reset
HDBaseT Connector RJ-45 WE/SS 8P8C
RS-232 Connector 3.5mm TRS
IR Connector 3.5mm TRS (Auto Sensing Direction for Blaster or Receiver)
HDMI Connector Type A 19 pin
Power Connector Diameter 1.35mm ID, 3.5mm OD



Mechanical

Housing Black Aluminum Enclosure
Dimensions [L x W x H] 120mm x 77mm x 27.94mm [4.72" x 3.03" x 1.1"]
Weight 395g [14 oz] TX / 395g [14 oz] RX
Mounting Wall Mounting and Rack Mounting
Power Supply 24v 0.65A DC (Only 1 required on either TX or RX)
Power Consumption 5 Watts (TX) 7 Watts (Rx) [max]
Operation Temperature 0~40° C [32~104° F]
Relative Humidity 20~90% RH [No Condensation]
