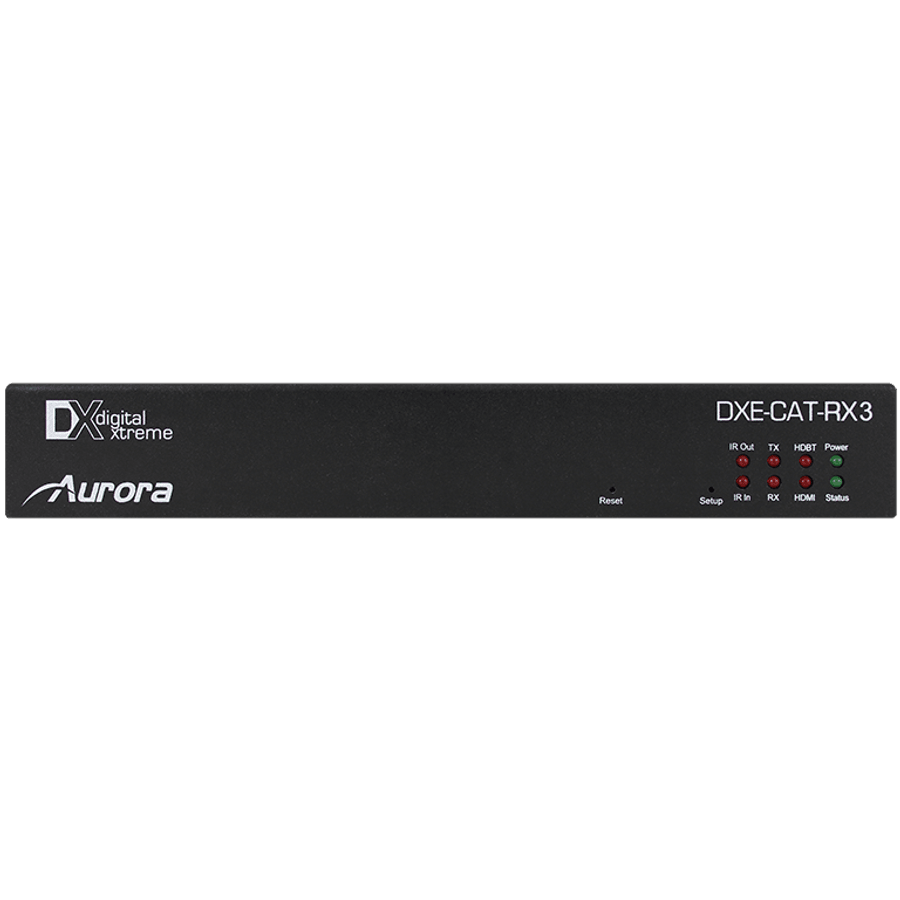

Aurora Multimedia DXE-CAT-RX3 HDBaseT Receiver w/Dual Relay & Audio
Aurora Multimedia DXE-CAT-RX3 HDBaseT Receiver w/Dual Relay & Audio
Out of stock
SKU:DXE-CAT-RX3
Couldn't load pickup availability
Aurora Multimedia DXE-CAT-RX3 HDBaseT Receiver 330/600 Ft. with Dual Relay & Audio Line In/Out is different than the typical CAT extender found on the market today as it not only breaks the price barrier but the feature and usability aspects as well. Rear mounted connectors provide for a clean professional installation. The DXE-CAT-RX3 Series is designed to complement the Digital Xtreme Series of HDBaseT transmitters such as the DXW-2 Series HDBaseT wall plates, DXE-CAT-TX1, DXE-CAT-TX2, DXM Matrixes, etc.
The built in relays are perfect for screen control and the audio amplifier versions (2x35 Watt) will fill the room with sound when used with the Aurora SKR-22T 360° sound field ceiling tile speaker. A low cost, highly integrated solution for rolling carts, podiums, and credenzas is possible with the DXE-CAT family.
Going the distance: HDBaseT technology, with a single CAT cable, allows the DXE-CAT to operate up to 330ft 1080p 60Hz 48bit color depth, 500ft 1080p 60Hz 24bit (CAT 6), or 600ft 1080p 60Hz 24bit (CAT 6A Shielded) depending on transmitter model. In addition, the RS-232, IR, & LAN can be sent over the same cable bi-directionally.
Features:
- Receives HDMI up to 600ft (183m)
- 2x35 Watt Amplifier ("-A" Version)
- Differential Line Input / Output for Audio Mixing & HDMI Audio De-Embedding
- Volume Control
- Audio Functions Remotely Controlled via Transmitter Unit or Optional IP
- IP Control Engine (C Version)
- Bi-directional RS-232, & IR & LAN
- Two Relays for Screen Control
- Rear Mounted Connectors for Clean Installation
- Status LED for All Connections on Front
- Warrenty : 60 Months
Specifications:
| 1 Model Name | DXE-CAT-RX3 Series |
| Technical | DXE-CAT-RX3 |
| Max Distance | 600ft |
| Max Resolution | 1080p 60Hz |
| RS-232 | Max 115kbps |
| Amplifier | No |
| Line W'CXit | 3aianced |
| Relays | 2 Normally Open 24VDC2A |
| IR Input & CXjtpcft | 30Hz-100kHz |
| LAN | 2-10/100 |
| LAN POE | Pori 1 |
| IP Control System | No |
| Front LED Status | Power. Status. HOMI. HDBaseT. RS-232 TX/RX, IR In/Out |
| Front Selections | Reset |
| Distance | 328ft 100m - 1080p 60Hz 24 & 36bit CAT 5eA5/6a/7 328ft 100m - 1C60p 60Hz 48tit CAT 6a/7 230ft 70m - 1080p 60Hz 48bit CAT 5e/6A5a/7 5COft 152m - 1080p 60Hz 24bit (Long Reach Mode) CAT 6 600ft 183m - 1080p 60Hz 24bit (Long Reach Mode) CAT 6A CAT 5e/6 achieve 328ft 100m for pixel clock <=225MHz CAT 5e/6 achieve 230ft 70m for pixel dock >225MHz CAT 6afT wfl achieve 328ft 100m lor pixel dock >225MHz |
| LAN Connectors | Dual 8P8C Mth 2 LED indicators each |
| HDBaseT Connector | RJ-45 WE/SS 8P8C |
| RS-232 Connector | 3.5mm TRS |
| IR Connector | 3.5mm TRS (Auto Sensing Direction for Blaster a Receiver) |
| HOMI Connector | TypeA 19 pen |
| Power Connector | 2.5mm ID Haf Twist Kycon |
| Relay Connector | 381mm Euro Style Green 4 Position |
| Line In/Out | Dual 3.81mm Euro Style Green 5 Position |
| Amplifier Connector | 5.08nm Euro Style Green 4 Position |
| Mechanical | DXE-CAT-RX3 Series |
| Housing | Black Aluminum endosure |
| Dimensions (L x W x H] | 130mm x 55mm x 30mm [8.46 x 3.82* x 1J] |
| Weight Mounting | 2bs |
| Wall-mounting & Rack Mounting | |
| Power supply | 24 SO Watt DC (Only 1 recuired on RX for Amplifier model) 132mmx57mmx31mm |
| Power consumption | 5 Watts [Typical] 80 Watts (Amplifier ful use) [Max] |
| Operation temperature | 0-40 [32-10˚F| |
| Storage temperature | -20-60˚C [-4-140˚F| |
| Relative humility | 20-90% RH [no condensation] |
