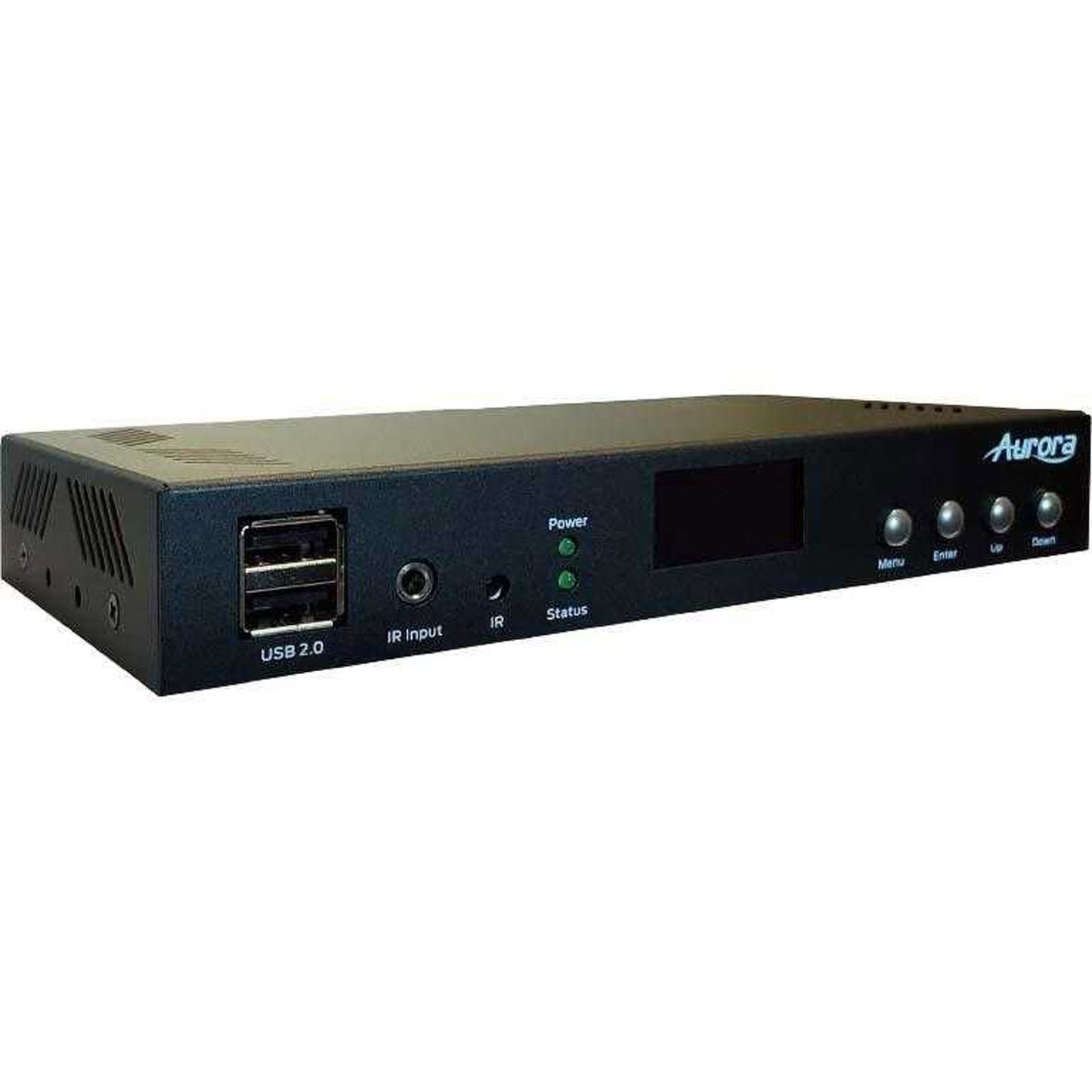

Aurora IPX-TC3A-C 3rd Gen 4K 10Gbps AV-over-IP Transceiver Box

Aurora Multimedia IPX-TC3A-C 3rd Gen 4K 10Gbps AV-over-IP Transceiver Box (ASIC model, copper version)

This Aurora Multimedia IPX-TC3A-C 3rd Gen 4K 10Gbps AV-over-IP Transceiver Box (ASIC model, copper version) provides one of the most advanced IP Streaming solutions on the market utilizing SDVoE technology. It is the industry’s first 4K2K transceiver with zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT+ platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard – until now. The IPX can be set up as either one to make installation, inventory, and troubleshooting easier. Another industry first is the option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. When the IPX is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source.  Regardless of how the IPX is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX 10G port.

Features:

• Configure as Transmitter (Encoder) or Receiver (Decoder)
• 4K60 4:4:4 Over 10G Fiber or Copper
• Zero Compression/Frame Latency (22us) for 4K60 4:2:0 and below
• 1.3:1 Lossless Compression and Zero Frame Latency (100us) for 4K60 4:4:4
• Secure Content Encryption
• 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
• Break-away Switching
• Audio DSP
• Front Keypad with OLED Display
• Wall Plate Versions also available in white or black
• Warrenty: 60 Months

Specifications:

• Video
  • Compression: Zero (4K30 4:4:4/4K60 4:2:0), 1.3:1(4K60 4:4:4)
  • Latency: Zero Frame Latency (100us without Scaling, 3ms with Scaling)
  • Bandwidth: 600MHz
• Connectors
  • HDMI: 2 Inputs, 1 Output
  • Analog Audio: Stereo Line In/Out (3.5mm TRS Tip is Left, Ring is Right, Sleeve is Ground)
  • 10G Ethernet (CF Version): (1) 10G Copper RJ-45 330ft CAT 6A PoE+ & (1) 10G Fiber SFP+ (CF version)
  • 10G Ethernet (DF Version): (2) 10G Fiber SFP+ (DF Version)
  • 1G Ethernet: (1) 10/100/1000M PoE+ (PSE)
  • RS-232: Up to 115k Baud (3.5mm TRS Tip TX, Ring RX, Sleeve Ground)
  • IR: Bi-Directional (3.5mm TRS Tip TX, Ring 5V, Sleeve Ground)
  • USB: 2 x USB 2.0 Type A, 1 x USB 2.0 Micro
  • Expansion: ExtremeUSB, Dante and ReAX Options
• Control
  • Webserver: Built-In Control Server
  • Management Software: IPBaseT Manager (free download)
  • 3rd Party Control: Comprehensive Telnet API including Exclusive Aurora Wrapper Functions
• Physical & Power
  • Housing: Black Aluminum Enclosure
  • Dimensions [L x W x H]: 175 x 102 x 27.7mm [6.875" x 4" x 1.09"]
  • Weight: 0.453kg [1.0lbs]
  • Mounting: Optional: Rack mount vertical, Rack mount horizontal, Under table mount
  • Power Supply: 48V DC (2 pin Euro) or PoE+ 25.4W (LAN)
  • Power Consumption: 12.9 Watts
  • Operation Temperature: 0 ~ 40 Celsius [32 ~ 100 Farenheit]
  • Storage Temperature: -20 ~ 60 Celsius [-4 ~ 140 Farenheit]
  • Relative Humidity: 20~90% RH [no condensation]
