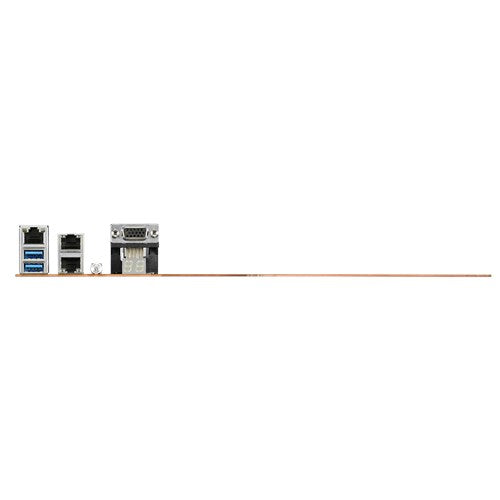

ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB
ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB
Out of stock
SKU:90SB0670-M0UAY0
Couldn't load pickup availability
Scalable server motherboard with industry-leading 2TB memory capacity
- Industry-leading 2TB memory capacity
- Dual M.2 SSD slots
- Intel Xeon Scalable Platform design
- Comprehensive IT infrastructure management solution - ASUS Control Center (ACC) and ASMB9-iKVM
- Rack-optimized thermal performance
Industry-leading memory capability
With 16 RAM slots that support up to 2TB of fast, DDR4-2666MHz 3DS ECC RDIMMs or LRDIMMs, the Z11PR-D16 server motherboard delivers industry-leading memory capability for your business.
Dual M.2 SSD slots
Z11PR-D16 features dual M.2 SSD slots which support two transmission interfaces: SATA and PCI-E Gen3 x4. Both interfaces could be set in RAID mode. In particular, in the mode of PCI-E RAID, it supports Intel VROC technology. The disk array system with Dual M.2 can be used as the main system disk, and also can be used as memory caching to enhance the data access speed.
Intel Xeon Scalable Platform design
Z11PR-D16 is built on the Intel Xeon Scalable Platform to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average system-level performance compared to previous-generation processors. The Intel Xeon Scalable platform also delivers better virtualization performance, enabling 4.2X more virtual machines (VMs) per system.
Comprehensive IT infrastructure management solution
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching.
The latest ASMB9-iKVM module enables remote BIOS updates, fans control, standalone KVM, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics even if the server operating system is down or offline through a user-friendly, web-based graphical interface that works with all major browsers.
Rack-optimized thermal performance
With the CPU and memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, Z11PR-D16 is optimized for rack placement.
Flexibility to grow with your business
Z11PR-D16 comes with a wide range of ports to provide a flexible and cost-effective computing environment with the ability to grow together with your business. Z11PR-D16 features:
- 2 x mini SAS HD connectors
- 3 x 7-pin SATA ports
- 11 x SATA 6Gb/s storage device support (maximum)
- 1 x VGA
- 2 x USB 3.0
- 2 x 1GbE LAN
- 1 x Mgmt LAN
- 1 x Q-Code/port 80 LED
