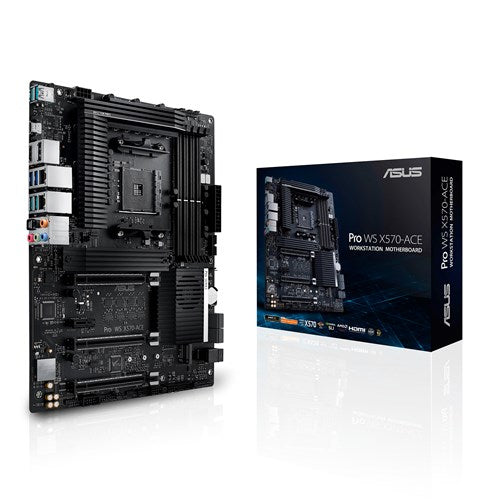

ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX
ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX
Out of stock
SKU:90MB11M0-M0EAY0
Couldn't load pickup availability
WORKSTATION MOTHERBOARD
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators.
Multi-GPU support
Fully loaded takes on new meaning when you have up to 24 PCI Express lanes and those lanes can be split in a 3-way x8/x8/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.
ASUS 2-WAY VGA holder
User-friendly design
The Pro WS X570-ACE is packed with an exclusive two-way VGA holder to provide extra rigid support for up to two high-end graphics cards, to prevent potentially damaging bowing or bending. This VGA holder is easy to install and can be mounted with an additional system fan (up to 120mm), making sure your workstation has ample cooling to complete any task.
ASUS Control Center Express
Centralized, cost-effective server-grade management
ASUS Control Center Express is centralized server-grade software that works in conjunction with a GbE LAN controller which also serves as a management controller to reduce IT operational costs and improves efficiency. Its out-of-band management enables hardware-level control such as remote hardware reset, BIOS setting and update, and operating system installation across multiple clients, and remotely troubleshoot crashes or unexpected shutdowns.
Make your memory faster and reliable
Error-Correcting-Code (ECC) support offers a potent foundation for your build and enables Pro WS X570-ACE to automatically detect and repair single-bit memory errors, ensuring reliable and responsive performance in mission-critical environments.
ASUS OptiMem
Proprietary Memory Design
ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.
Power delivery enhancements
The 3rd Gen AMD Ryzen processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Pro WS X570-ACE is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.
ProCool II power connector
The latest ProCool II is an enhanced EATX 8-pin power connector that offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation, as well as a warning LED display with a BIOS POST message to indicate an improper connection.
Power stages with IR3555 design
The CPU VRM on Pro WS X570-ACE employs a 12+2 power stage design with IR3555, combining high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that high core count processors demand.
Alloy chokes
The Pro WS X570-ACE series uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the processors.
Durable capacitors
Durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
8-layer PCB design
Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.
Trusted Stability
Pro WS X570-ACE features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Active PCH Heatsink
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Pro WS X570-ACE features an actively cooled heatsink to prevent throttling during sustained transfers.
- Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan.
- Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
- Finned heatsink: The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
Cooler by design
Flexible cooling controls
Pro WS X570-ACE features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Multiple temperature sources
Each header can be set to monitor and react to three thermal sensors, and Fan Xpert 4 allows you to assign a sensor to monitor the temperature of supported ASUS graphics cards all to provide optimal cooling during GPU- or CPU-intensive workloads.
AIO pump
Dedicated PWM/DC header for self-contained water-cooling setup, built right in.
4-pin PWM/DC fan
Each onboard header supports auto-detection of PWM or DC fans.
Smart protection
A dedicated integrated circuit protects each fan header from over-temperature and over-current.
M.2 Heatsink
Keep your SSD cooler
Pro WS X570-ACE features an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 22C for optimal storage performance and improved SSD longevity.
Speed up with onboard M.2 & U.2
With x4 PCI Express 4.0 bandwidth, Pro WS X570-ACE features up to 64Gbps M.2 and U.2 for faster data-transfer speeds ideal for an operating system or application drive.
USB 3.2 Gen 2 back-panel connectors
Future-proof connectivity
The back panel of the Pro WS X570-ACE features five USB 3.2 Gen 2 connectors, including one reversible Type-C and four backward-compatible Type-A to deliver ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
Armoury Crate
The new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates and bug patches.
ASUS Node
A header to keep ahead
The ASUS Node connector features a bi-directional interface that offers all kinds of potential for DIY components and builds. The included ASUS Fan Extension Card II connects via Node, and In Win is developing a compatible OLED panel that fits into a chassis and offers LiveDash functionality and the ability to boot directly to the UEFI. FSP has also created a HydroDPM 1000W PSU that connects to Node to share power stats and temperature information while also enabling CPU fan control.
5-Way Optimization
One-click overclock and cooling
ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of your system to provide overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Crystal Sound 3
Flawless, immersive audio for entertainment
Audio shielding
Separates analog/digital signal domains, significantly reducing multilateral interference.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Integrated amplifier
Capable of driving high-impedance headphones, without rolling-off high r low frequencies.
Premium Japanese-made audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
AMD X570 chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.
