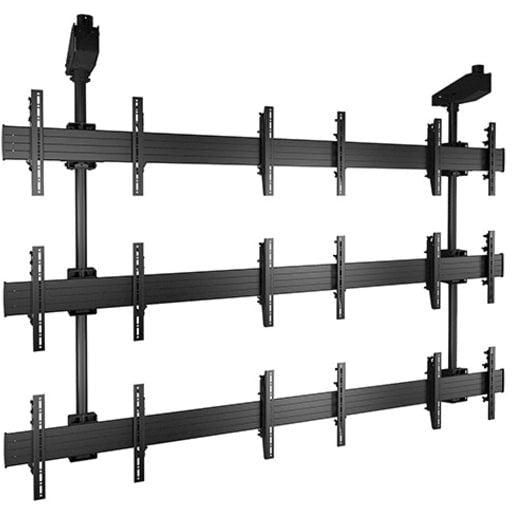

Chief 3 X 3 CEILING MOUNTED ARRAY ASSEMBLY

Chief's Fusion® ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Great for digital signage installations.

• Screen array configuration: screens wide x screens high.
• Confirm screen compatibility with MountFinder™.

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion® Universal Back Covers.

• PRECISE SCREEN ALIGNMENT
  • Easily align displays with independent knobs for height and plumb adjustments, no tools required.
• CONTROLZONE™ LEVELING
  • Micro-height and leveling adjustment at all column intersection points.
• INFINITE SCREEN POSITIONING
  • Infinite vertical and lateral adjustments provide tight display rows and columns.
• HEAVY-DUTY CONSTRUCTION
  • Solid construction supports displays up to 55" and 85 lbs (38.5 kg) per screen.
• CONFIGURABLE
  • Add configurations side by side to create any video wall arrangements up to 3 screens tall.
• CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems.
  • See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility.
  • See CPA ceiling plates and CPA columns for pin conection compatibility.
