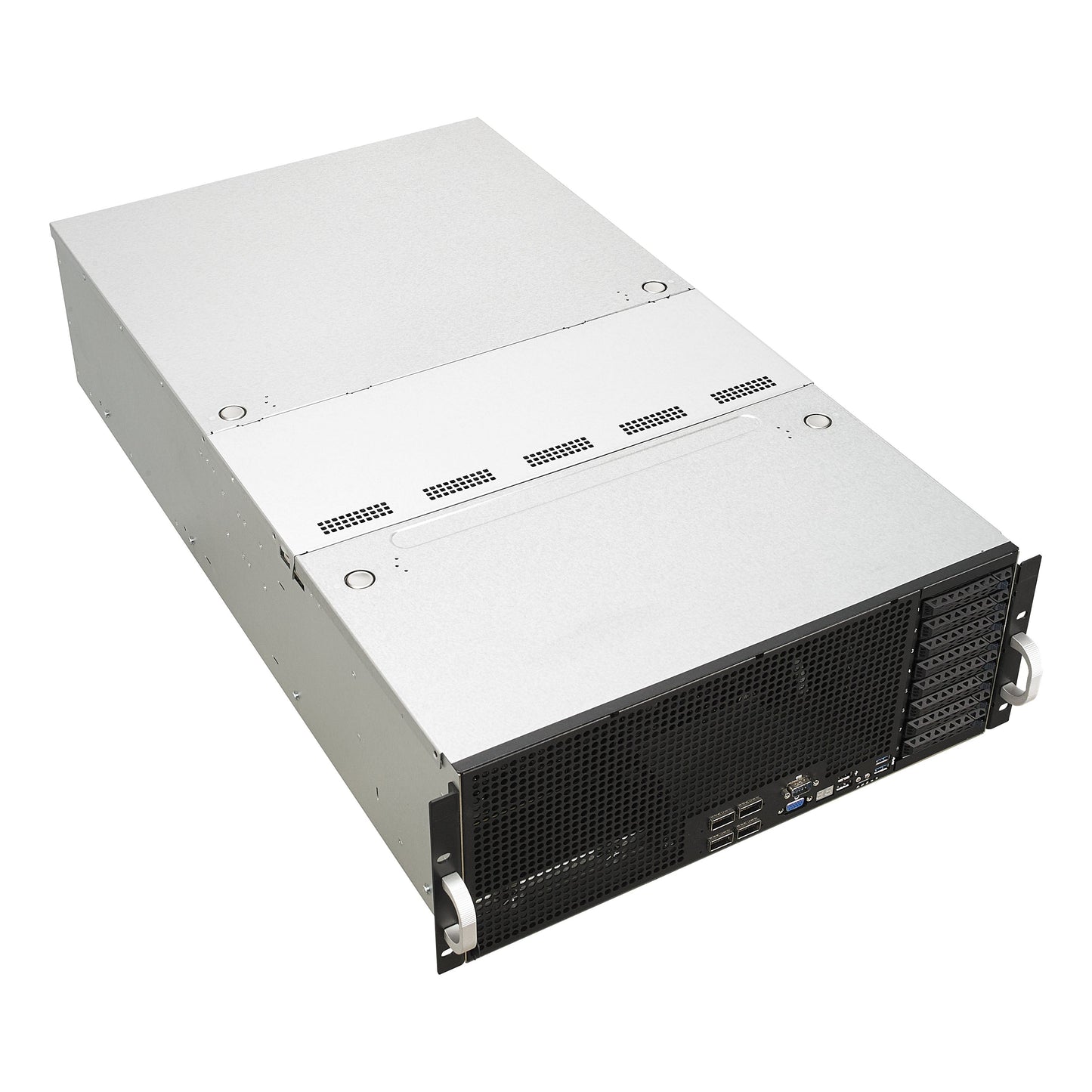

ASUS ESC8000 G4/10G Intel® C621 LGA 3647 (Socket P) Rack (4U) Black, Silver

ASUS ESC8000 G4/10G Intel® C621 LGA 3647 (Socket P) Rack (4U) Black, Silver

Out of stock


Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out
High-density 4U GPU server support 8 GPUs and dual onboard 10G LAN

High-density GPU server with hybrid computing power
ESC8000 G4/10G features a powerful GPU architecture that supports up to eight high-performance NVIDIA Quadro or Tesla GPU cards in a 4U chassis. With so much graphics power, ESC8000 G4/10G lets you accomplish demanding computing tasks more quickly and with greater efficiency. An optimized internal layout enables ESC8000 G4/10G to fit a wide variety of graphics cards including dual-slot GPUs with active or passive thermal modules.

Patented Adaptable Topology design
ESC8000 G4/10G provides flexible system topology configuration options, including the ability to choose a single or dual root complex, making it ideal for deep learning requirements. The patented Adaptive Topology design enables users to switch the system topology easily via the intuitive web-based GUI of the ASUS ASMB9-iKVM server management solution, without changing any hardware configurations or cable routing.

Scalable design for growing workloads
ESC8000 G4/10G is designed for easy scalability to fit growing businesses and workloads. With eight PCIe Gen3 x16 slots that fit full-height, full-length GPU cards, two PCIe Gen3 x16 slots for high-speed networking cards, and one internal PCIe Gen3 x8 slot for an HBA/RAID card, ESC8000 G4/10G is ready to deliver high-density, parallel computing power.

It also features multiple interface types for flexible storage configurations, including dual PCIe or SATA M.2, and port-to-port dual OCuLink with Intel VROC technology for two hot-swappable 2.5" NVMe SSDs. ESC8000 G4/10G also fits up to eight 2.5 SATA 6Gbp/s HDDs or eight 2.5 SAS 12Gbp/s HDDs with an optional HBA card.
* Only 1 LP/HL PCIe Gen3 x 16 slots works when switching to Topology 1, since one of the 1st PLX's PCIe lane would be occupied for connecting with 2nd PLX.

Dual onboard 10G LAN
Featuring dual onboard 10G LAN ports backed by the cutting-edge Intel X550AT2 10GBASE-T Ethernet controller, ESC8000 G4/10G provides stable connectivity that supports high-density, high-bandwidth and low-latency access-layer networks. With data-rates up to 10Gbps, ESC8000 G4/10G is able to transfer 4K videos and other large files in a fraction of the time required by conventional networking gear. The onboard controller negates the need to allocate a PCI Express slot to a dedicated network card, saving valuable space for other components.

Comprehensive IT Infrastructure Management Solution
ESC8000 G4/10G features an embedded ASMB9-iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management. For more information, see the ASUS Control Center microsite.

Efficient cooling with hot-swappable redundant fans and dedicated air tunnels
Cooling an accelerator server handling extreme workloads at up to 3200 Watts of power consumption is a demanding task, so ESC8000 G4/10G is equipped with hot-swappable, redundant fans and dedicated air tunnels for the CPU, GPUs and DIMMs. Ten fans for the GPUs five primary and five back-up fans plus two coolers for the CPU ensure nonstop cooling performance for nonstop server operation.

* Default 5 fans for GPU, extra 5 fans are optional.

Exclusive thermal radar technology for energy efficiency
ESC8000 G4/10G features ASUS-exclusive thermal radar technology with ambient sensors placed on the CPUs, GPUs and DIMMs. This design provides internal and external temperature monitoring and enables dynamic fan curve adjustment, lowering fan power consumption up to 20% and reducing TCO which is ideal for extreme workload data center.

Simplified maintenance and management

Easily Swappable Components

With the ingenious placement design, IT staff can swap key components with ease.

Tool-less Cover
ESC8000 G4/10G has three easy-access covers that can be opened without tools, enabling IT staff to perform maintenance on specific components without removing the server fully from the rack.

Front-bezel Q-Code
ESC8000 G4/10G has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process, from power on through loading of the operating system.

Quick initialization guidance
ESC8000 G4/10G provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
