Vigilant Vision

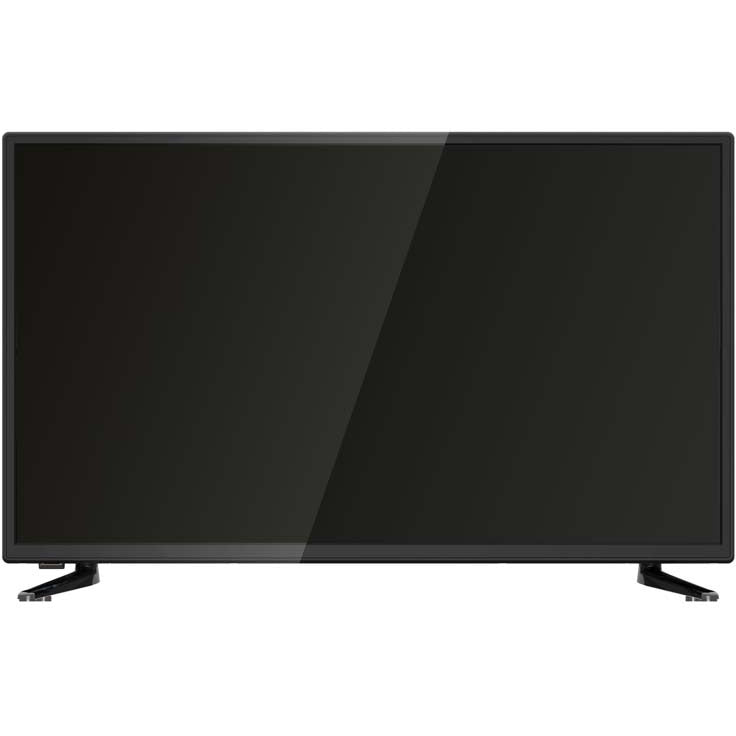

Vigilant Vision 32" LED 16:9 Monitor
Vigilant Vision 32" LED 16:9 Monitor
Out of stock
SKU:DS320FHD-ECO
Couldn't load pickup availability
SPECIFICATION
IN/OUT INTERFACE
POWER
| Panel Type | 32″ (16:9) LED Monitor |
| Case Type | Plastic Case |
| Maximum Resolution | 1920 (H) x 1080 (V) |
| MTBF | 40,000 hrs |
| Active Display Area | 698.4(H) x 392.85(V) mm |
| Pixel Pitch | 0.121(H) x0.363(V) mm |
| Bezel Thickness | T: 14.1mm L/R: 14.6mm, B: 21.1mm |
| Contrast Ratio | 1200 : 1 Ratio |
| Brightness | 300 cd/ m2 |
| Response Time | 8 m.sec (G to G) |
| Viewing Angle | 89 / 89 U / D 89 / 89° |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatibility | Yes |
| Aspect Ratio | 16:9 |
| VGA Auto Frequency correction | Yes |
| Number of Speakers | 2 |
| Sound Demodulation | Stereo |
| Mute | Yes |
| Work Humidity | 0% – 90% |
| Work Temperature | 0 to +60 °C |
| Volume +/- Power On/Off | Yes |
IN/OUT INTERFACE
| Video Interface | VGA, HDMI, 1 x BNC in, 1 x BNC out, Audio |
| Audio Interface | 3.5 mm Jackplug |
| Power Interface | AC |
| Termination | 75 Ohms (Automatic termination) |
| Safety & EMC Certification | FCC, CE, ROHS-2, Reach, Weee |
| Vesa Standard Mount | 100mm x 100mm |
| Stand Type | Picture Frame |
| Colour | Black |
| Button Position | Left Black |
| Packing Dimension | 933 x 245 x 632 mm |
| NET Weight | 4.4 Kgs |
| GROSS Weight | 9.1 Kgs |
POWER
- Power Supply: AC110 – 240V 1A
- Voltage: AC110 – 240V 1A
- Power Consumption: < 10W
OSD CONTROLS
VIDEO – Picture, Brightness, Contrast, HUE, Saturation, Sharpness, Color Temp, Picture Mode, OSD – Language, H-position, V-position, Duration, Backlight, Mem-recall, Function – Hstart, Hsize, Vstart, Vsize, Audio-Bass, Treble, Balance, Sound mode, AVC
OSD LANGUAGE
English, French, German, Spanish, Italian, Russian, Portuguese & Polish
ACCESSORIES
Power Cable, Stand, Remote Control, User Guide, HDMI Cable
